NSN 4710-01-074-8268 0113632-01, 01-074-8268, 011363201
Product Details | METAL TUBE ASSEMBLY
4710-01-074-8268 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 0113632-01, 4710-01-074-8268, 01-074-8268, 4710010748268, 011363201, 010748268
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 APR 1979 | 01-074-8268 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-01-074-8268
Demand History | NSN 4710-01-074-8268
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0113632-01 | 2015-03-61 | 6 | US |
Cross Reference | NSN 4710-01-074-8268
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0113632-01 | 45402 | PACIFIC SCIENTIFIC COMPANY DBA PACIFIC SCIENTIFIC HTL/KIN TECHS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-01-074-8268
Technical Data | NSN 4710-01-074-8268
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL, MIL-T-8504, COMP 304 |
| WALL THICKNESS | 0.049 INCHES NOMINAL |

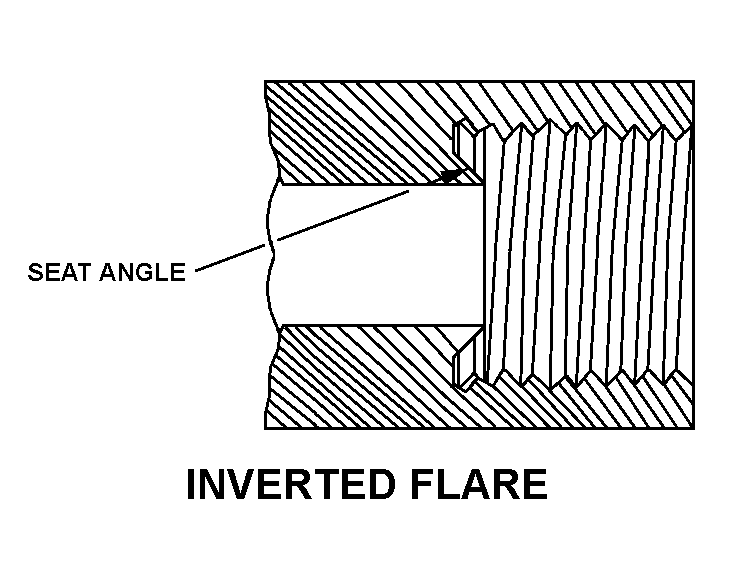

| END CONNECTION STYLE | B2 INVERTED FLARE |
| END CONNECTION SPEC/STD | MIL,MS20819-4J |
| DESIGN FORM | PREBENT |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4710-01-074-8268
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052250 | PIPE R TUBING R PIPE FITTINGS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ||
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
