NSN 4710-01-048-8549 16P2001, 16P200-1, 01-048-8549
Product Details | METAL TUBE ASSEMBLY
4710-01-048-8549 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 16P2001, 16P200-1, 4710-01-048-8549, 01-048-8549, 4710010488549, 010488549
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 OCT 1977 | 01-048-8549 | 21989 ( TUBE ASSEMBLY, METAL ) |

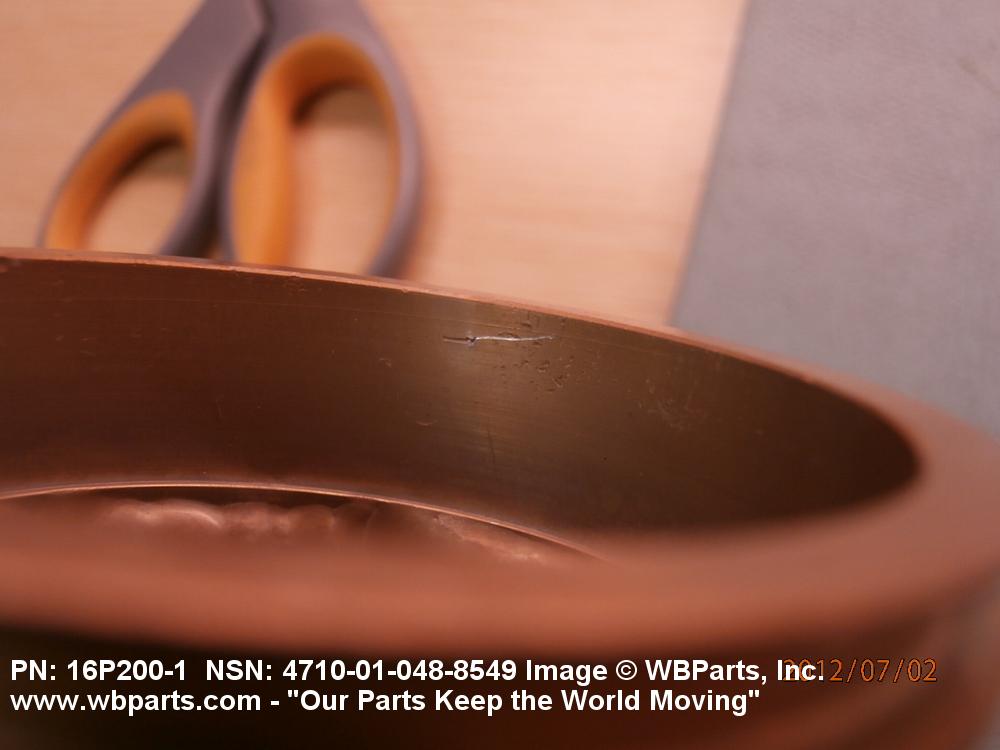

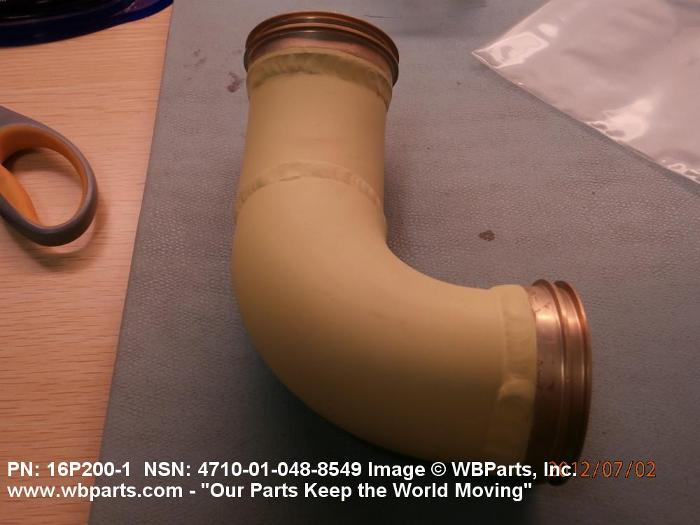

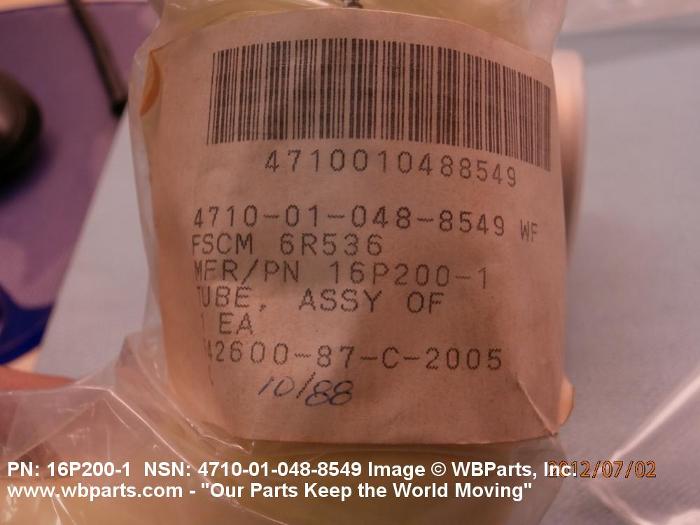

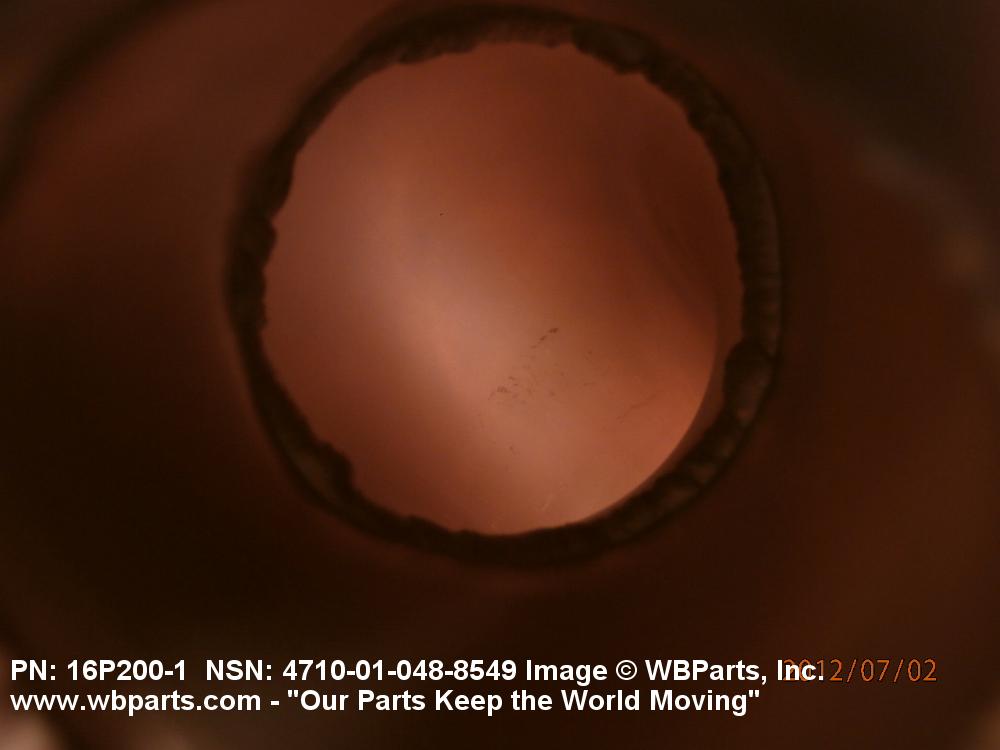

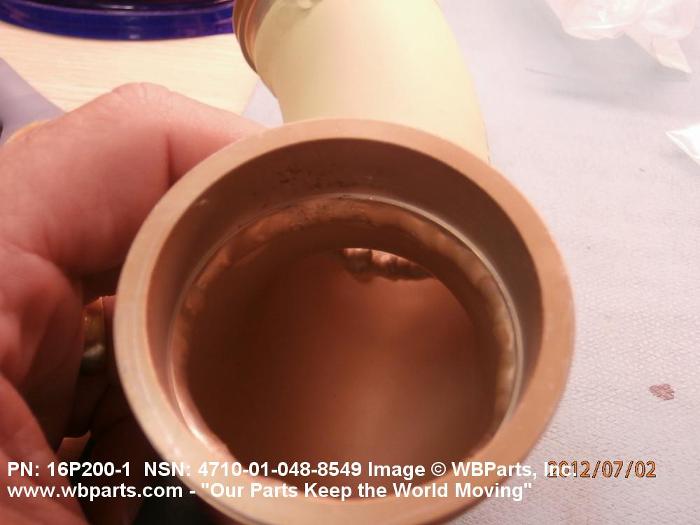

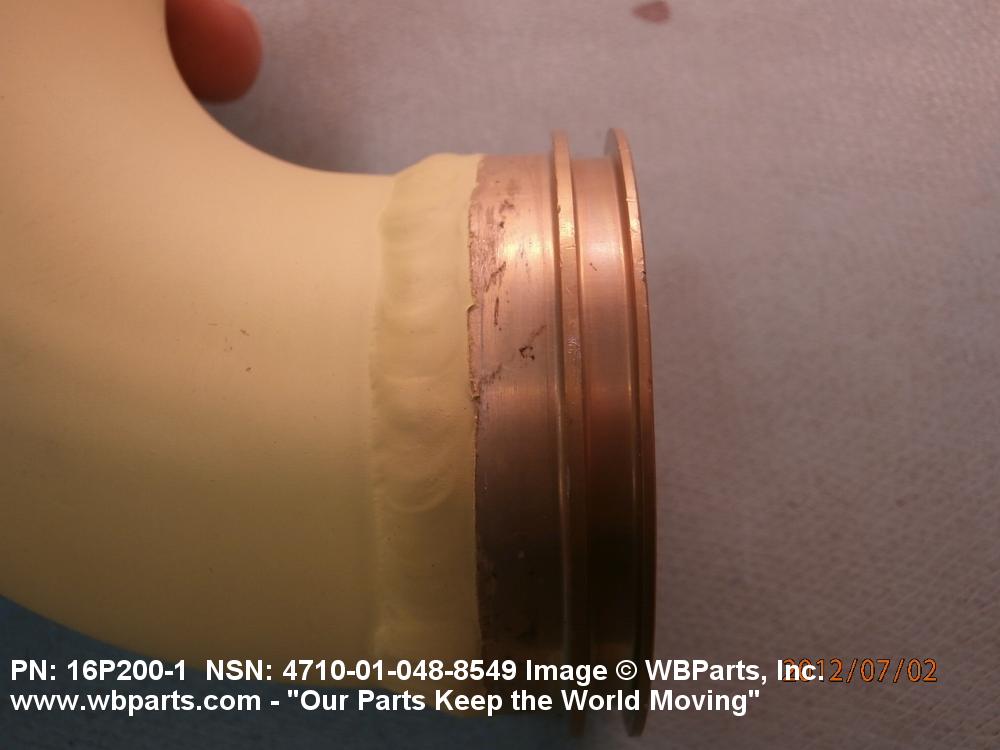

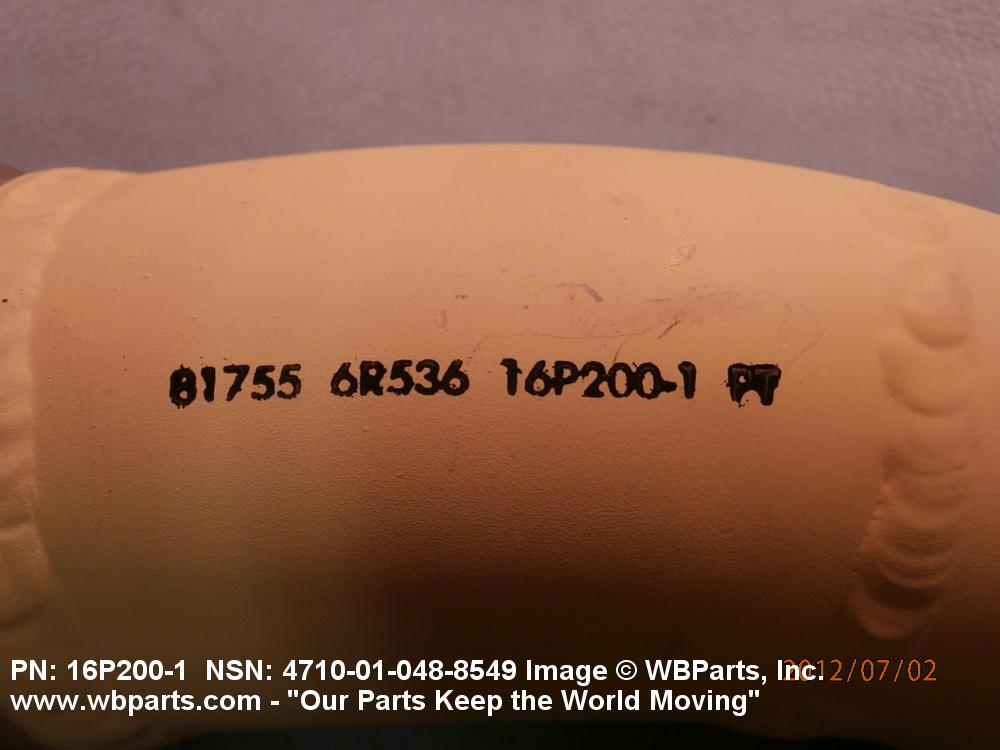

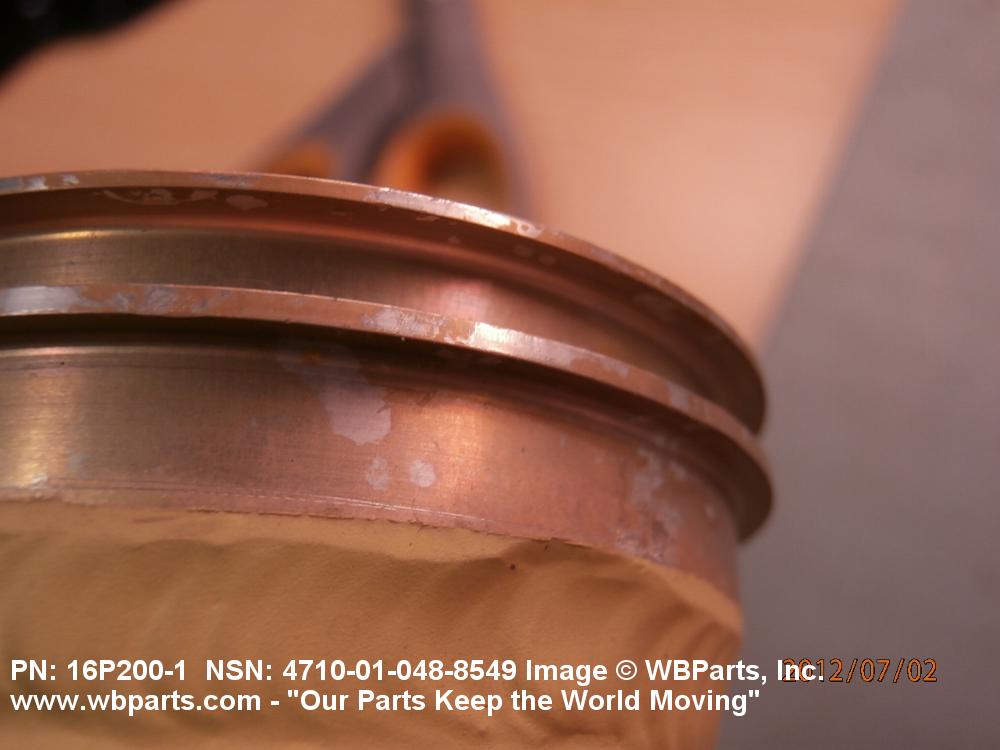

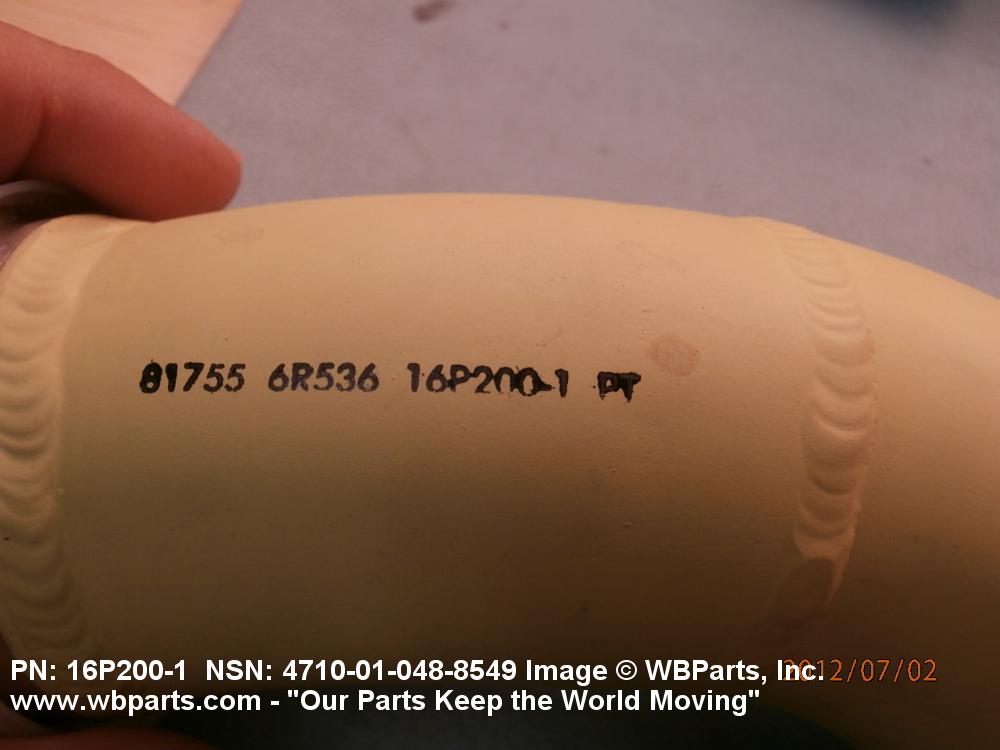

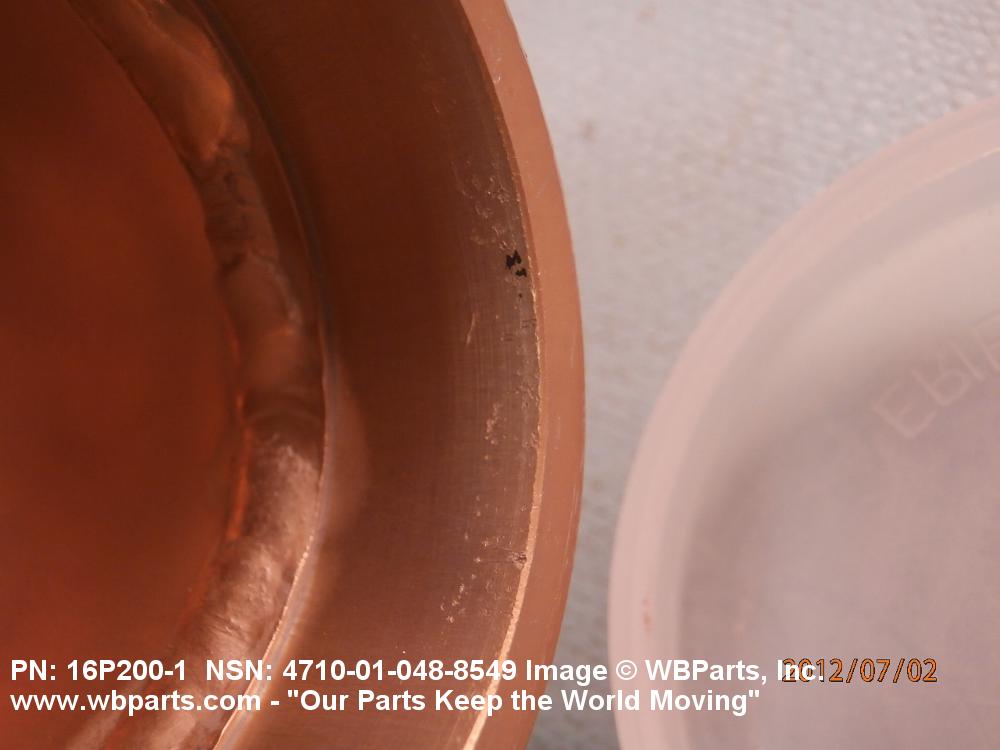

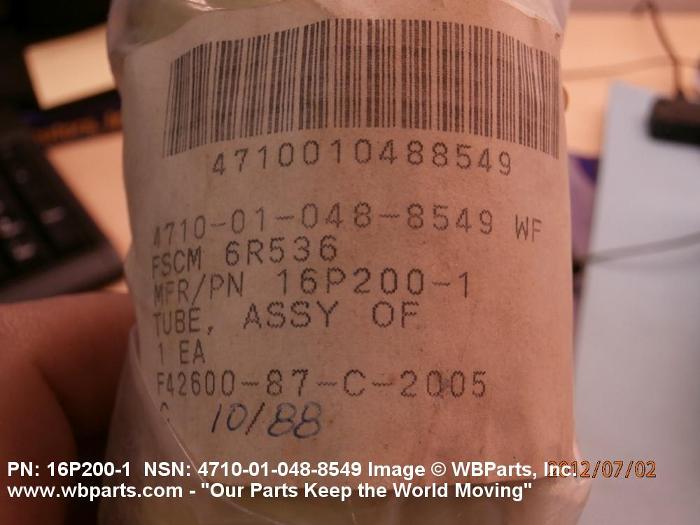

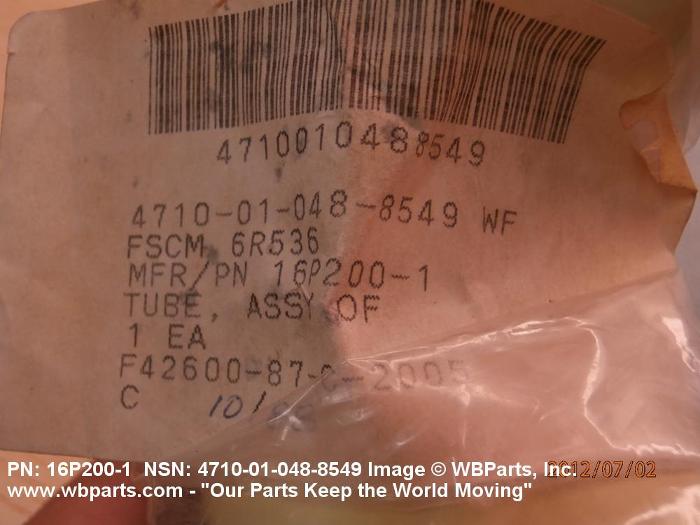

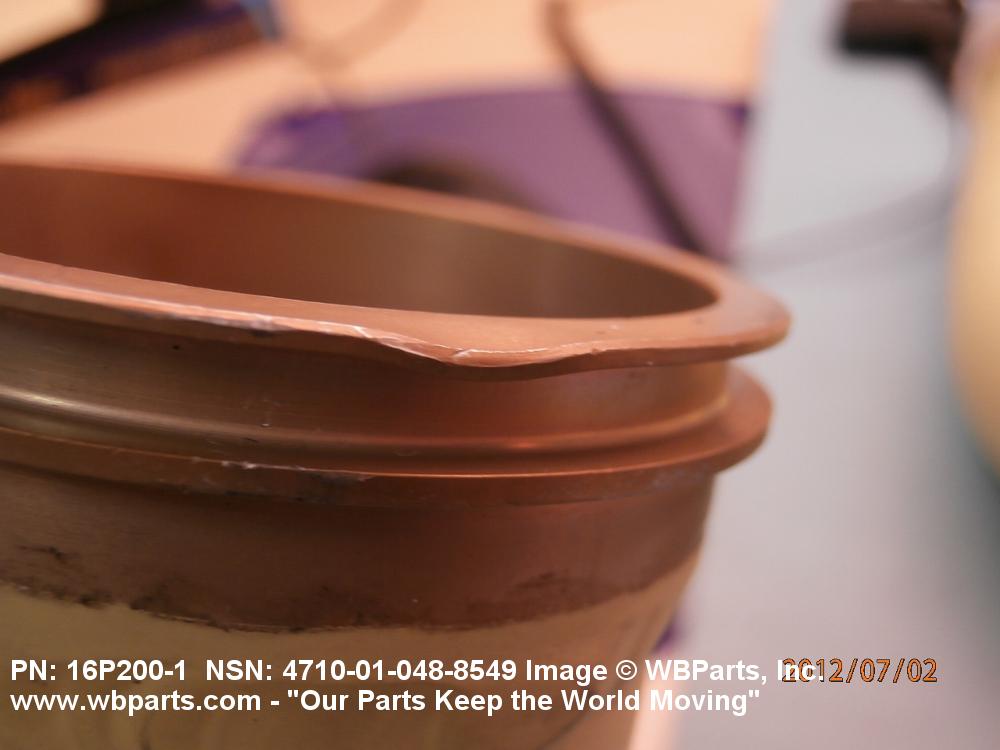

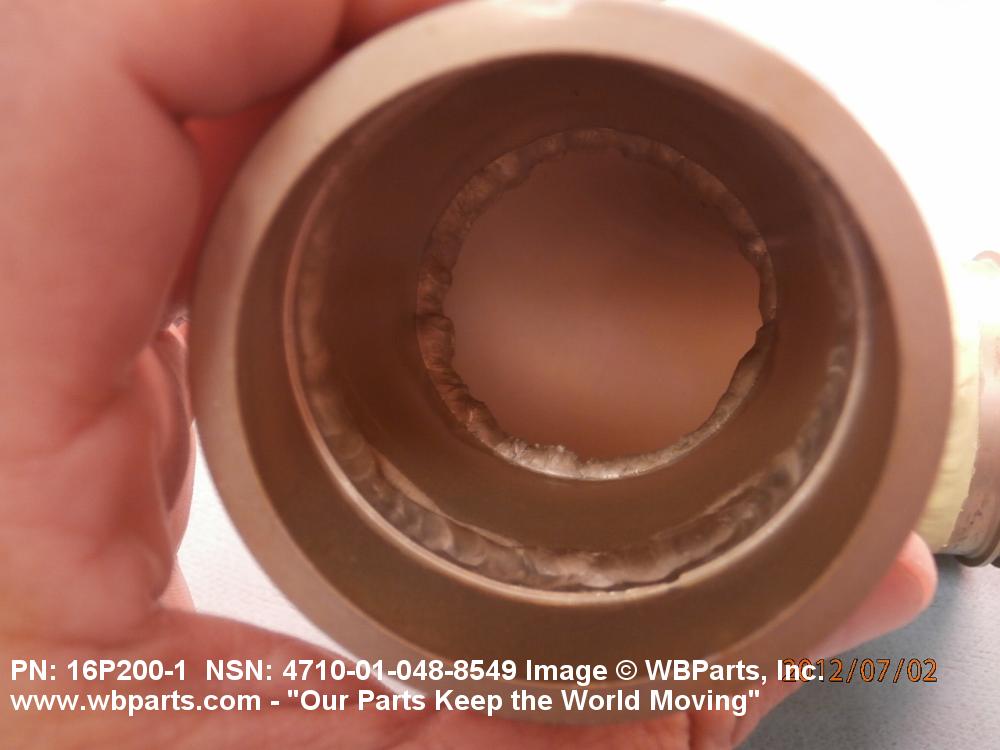

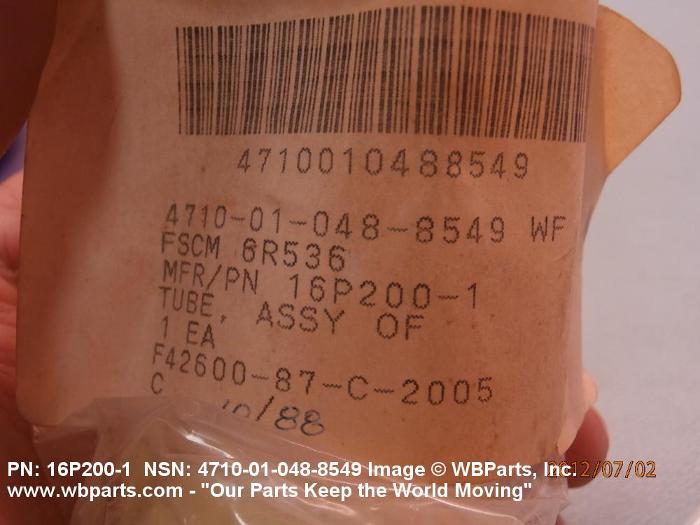

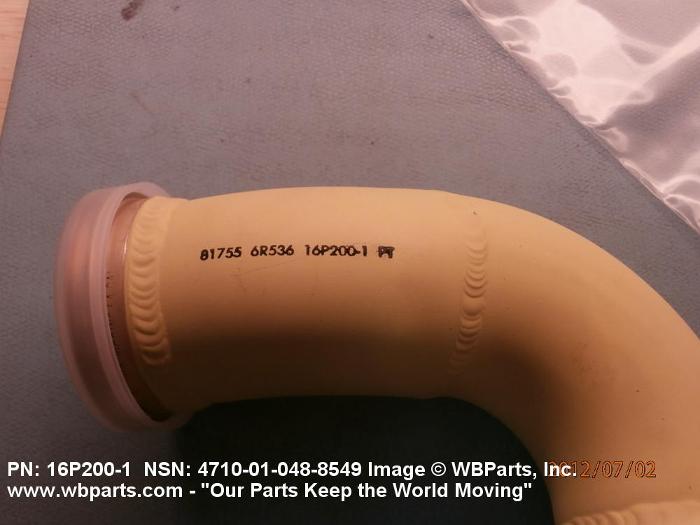

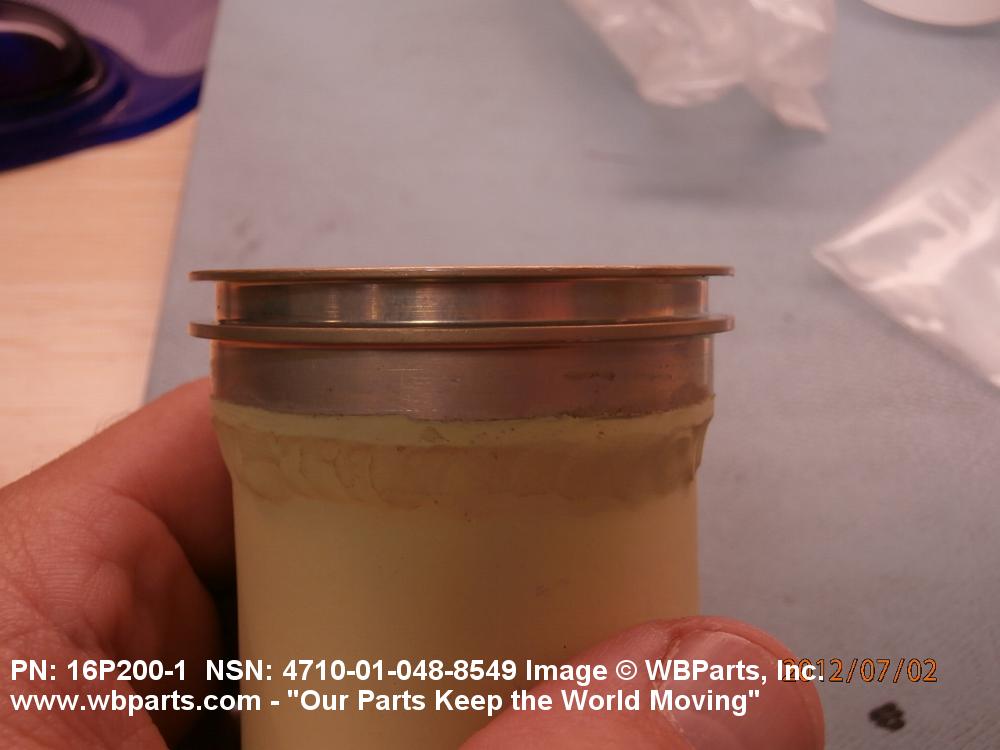

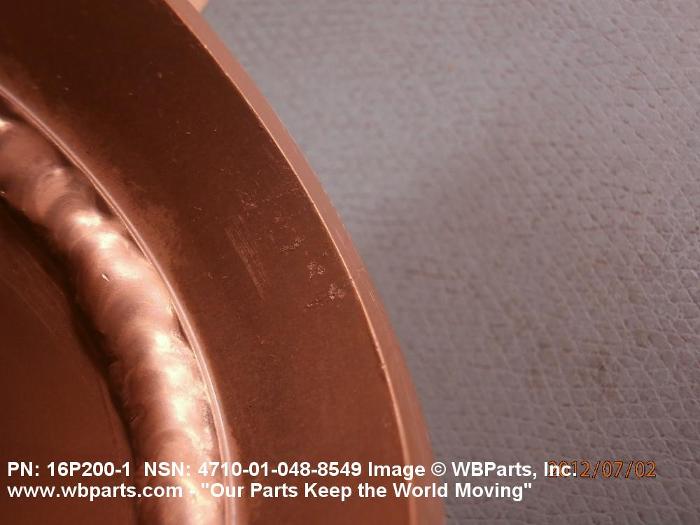

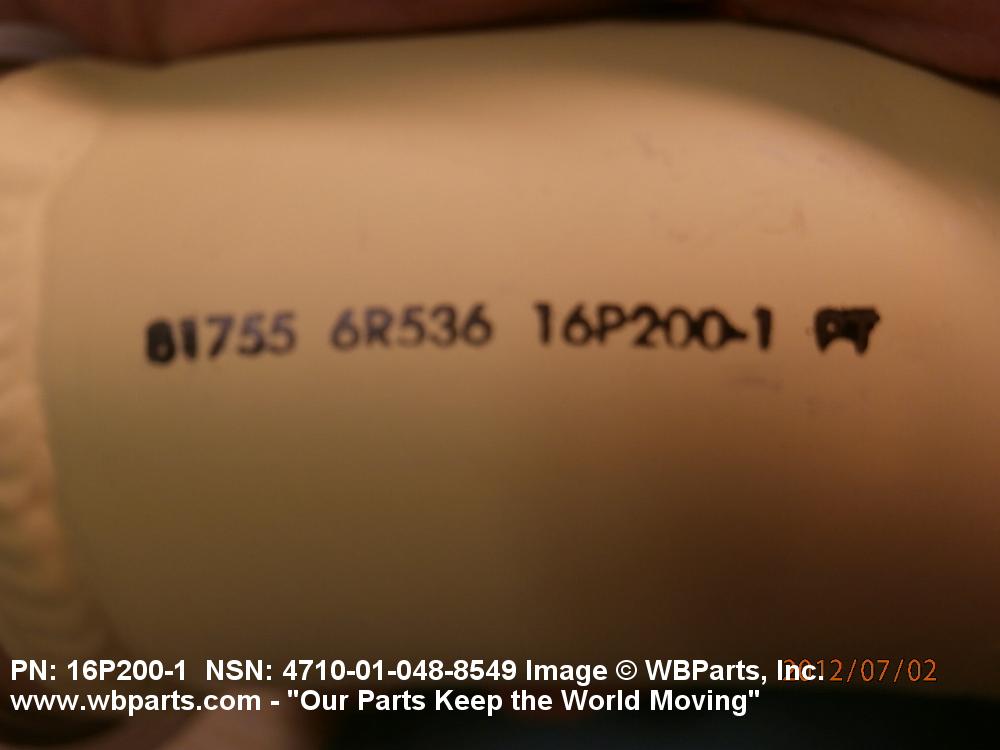

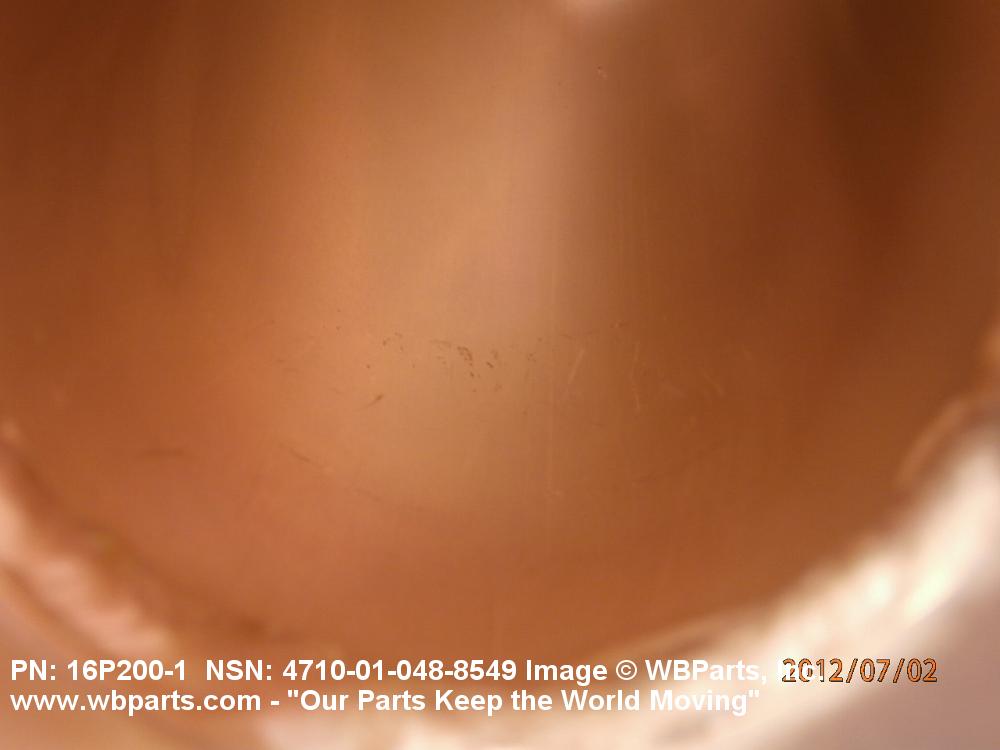

Drawings & Photos | NSN 4710-01-048-8549
Demand History | NSN 4710-01-048-8549
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-01-048-8549 | 2020-10-301 | 3 | DIBBS |
| 4710-01-048-8549 | 2020-07-211 | 1 | DIBBS |
| 4710-01-048-8549 | 2020-03-72 | 4 | DIBBS |
| 4710-01-048-8549 | 2020-01-26 | 1 | DIBBS |
| 4710-01-048-8549 | 2019-11-318 | 1 | DIBBS |
| 4710-01-048-8549 | 2019-09-260 | 3 | DIBBS |
| 4710-01-048-8549 | 2017-05-131 | 1 | US |
| 4710-01-048-8549 | 2014-10-281 | 3 | DIBBS |
| 4710-01-048-8549 | 2014-04-93 | 5 | DIBBS |
| 4710-01-048-8549 | 2013-02-56 | 5 | DIBBS |
| 4710-01-048-8549 | 2012-06-178 | 4 | United States |
| 4710-01-048-8549 | 2011-12-349 | 4 | DIBBS |
| 4710-01-048-8549 | 2011-12-343 | 2 | DIBBS |
| 4710-01-048-8549 | 2011-04-109 | 4 | DIBBS |
Cross Reference | NSN 4710-01-048-8549
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16P200-1 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4710-01-048-8549
Related Products | NSN 4710-01-048-8549
Technical Data | NSN 4710-01-048-8549
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | ALUMINUM ALLOY |
| TUBE OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| WALL THICKNESS | 0.035 INCHES NOMINAL |
| MATING END QUANTITY | 2 |
| END CONNECTION SPEC/STD | MFR P/N C7551-3-32 FSCM 81755 |
| DESIGN FORM | PREBENT |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16P200-1 |
Restrictions/Controls & Freight Information | NSN 4710-01-048-8549
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051820 | PIPE R TUBING ALUM NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-01-048-8549
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
