NSN 4710-01-039-0477 68A6917751005, 68A691775-1005, 01-039-0477

Product Details | METAL TUBE ASSEMBLY

4710-01-039-0477 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.

Part Alternates: 68A6917751005, 68A691775-1005, 4710-01-039-0477, 01-039-0477, 4710010390477, 010390477

Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	16 APR 1977	01-039-0477	21989 ( TUBE ASSEMBLY, METAL )

Drawings & Photos | NSN 4710-01-039-0477

Part Number	Request Date	QTY	Origin
4710-01-039-0477	2019-10-297	3	US
4710-01-039-0477	2019-10-296	3	US
4710-01-039-0477	2017-03-65	11	DIBBS
4710-01-039-0477	2016-12-341	13	DIBBS
4710-01-039-0477	2016-11-320	11	DIBBS
4710-01-039-0477	2016-07-195	22	DIBBS
4710-01-039-0477	2015-09-244	6	United States
4710-01-039-0477	2015-05-133	2	United States
4710-01-039-0477	2015-02-56	1	United States
4710-01-039-0477	2014-04-114	21	DIBBS
4710-01-039-0477	2014-04-104	1	United States
68A6917751005	2014-01-13	1	United States
4710-01-039-0477	2013-10-283	7	DIBBS
4710-01-039-0477	2013-10-283	11	DIBBS
4710-01-039-0477	2013-07-204	24	DIBBS
4710-01-039-0477	2013-01-25	28	DIBBS
4710-01-039-0477	2009-09-246	10	DIBBS
4710-01-039-0477	2009-02-41	10	DIBBS
4710-01-039-0477	2008-08-228	9	DIBBS

Cross Reference | NSN 4710-01-039-0477

Part Number	Cage Code	Manufacturer
68A691775-1005	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4710-01-039-0477

Compare

Related Products | NSN 4710-01-039-0477

4710-01-039-0478, 4710-01-039-0834, 4710-01-039-0835, 4710-01-039-0836, 4710-01-039-1139

Technical Data | NSN 4710-01-039-0477

Characteristic	Specifications
TUBING MATERIAL	ALUMINUM ALLOY

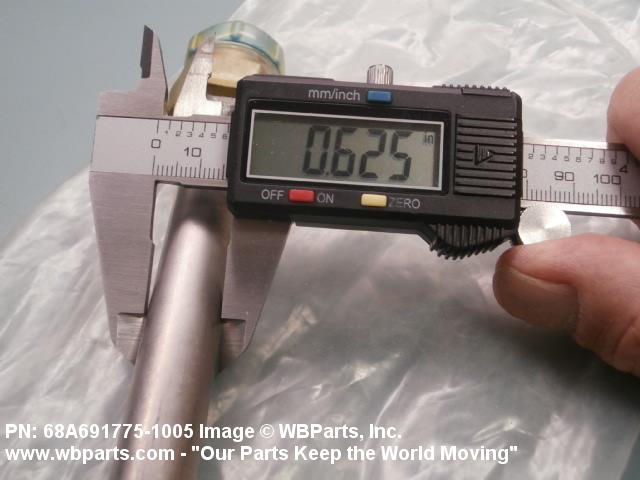

TUBE OUTSIDE DIAMETER	0.625 INCHES NOMINAL
WALL THICKNESS	0.032 INCHES NOMINAL
END CONNECTION STYLE	B37 PLAIN
MATING END QUANTITY	2
MATERIAL	TITANIUM
THREAD SERIES DESIGNATOR	UNJ
NOMINAL THREAD SIZE	2.219 INCHES
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
END CONNECTION SPEC/STD	7M523T10
DESIGN FORM	PREBENT
MANUFACTURERS CODE	76301
DESIGN CONTROL REFERENCE	68A691775-1005
