NSN 4710-00-875-5932 106C2952, 106C2952G1, 00-875-5932
Product Details | METALLIC TUBE AND FITTINGS
4710-00-875-5932 An item consisting of metal tube, straight or prebent, with permanently attached fittings (brazed or welded) on one or both ends. It is primarily designed to convey fluids, gases, and/or semisolids. For items with detachable end fittings, see TUBE ASSEMBLY, METAL.
Part Alternates: 106C2952, 106C2952G1, 4710-00-875-5932, 00-875-5932, 4710008755932, 008755932
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-875-5932 | 36987 ( TUBE AND FITTINGS, METALLIC ) |
Drawings & Photos | NSN 4710-00-875-5932
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-00-875-5932
Technical Data | NSN 4710-00-875-5932
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL, AMS 5557 |
| TUBE OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| WALL THICKNESS | 0.035 INCHES NOMINAL |

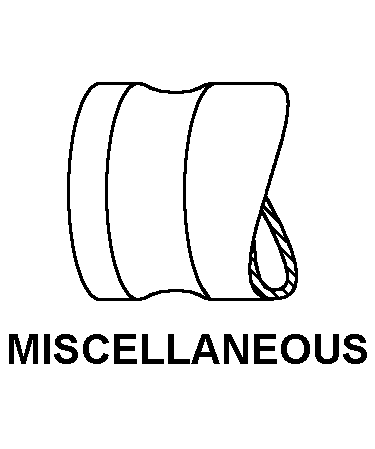

| END CONNECTION STYLE | B83 MISCELLANEOUS |
| MATING END QUANTITY | 5 |
| DESIGN FORM | PREBENT |
| OVERALL LENGTH | 29.250 INCHES NOMINAL |
| SPECIAL FEATURES | THIS ITEM CONSIST OF: 4710-00-453-9078 TUBE(QTY.1) X 106C2952P3 BRACKET(QTY.1) X 106C2952P4 BUTTON(QTY.1) X 106C2952P7 CAP(QTY.1) X 5935-01-371-8774 CONNECTOR(QTY.5) |
| III END ITEM IDENTIFICATION | J-79 TURBOJET ENGINE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | DRAWING ITEM NAME: MANIFOLD, OVER-BOARD DRAIN-TOP |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 106C2952G1 |
Restrictions/Controls & Freight Information | NSN 4710-00-875-5932
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
