Product Details | METAL TUBE ASSEMBLY

4710-00-837-2122 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.

Part Alternates: 3007846, 4710-00-837-2122, 00-837-2122, 4710008372122, 008372122

Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing

Supply Group (FSG) NSN Assign. NIIN
47 07 DEC 1966 00-837-2122

Drawings & Photos | NSN 4710-00-837-2122


Cross Reference | NSN 4710-00-837-2122

Part Number Cage Code Manufacturer
3007846 00198 PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4710-00-837-2122

Technical Data | NSN 4710-00-837-2122

Characteristic Specifications
TUBING MATERIAL STAINLESS STEEL,AMS5570
TUBE OUTSIDE DIAMETER 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM
WALL THICKNESS 0.017 INCHES MINIMUM AND 0.023 INCHES MAXIMUM

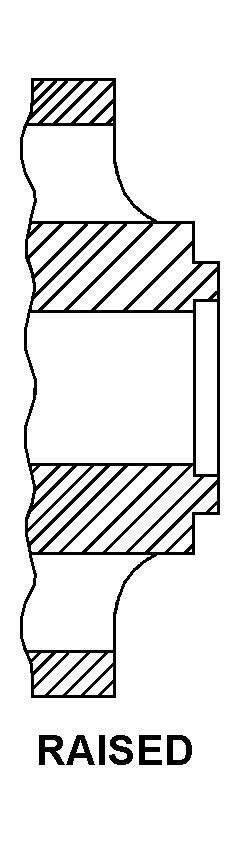

END CONNECTION STYLE B72 RAISED B59 UNTHREADED EXTERNAL
MATERIAL STAINLESS STEEL,AMS5570 STAINLESS STEEL,AMS5646
BOLT HOLE QUANTITY 2
BOLT HOLE DIAMETER 0.216 INCHES MINIMUM 0.226 INCHES MAXIMUM
BOLT CIRCLE DIAMETER 1.294 INCHES NOMINAL
DESIGN FORM PREBENT
MANUFACTURERS CODE 00198
DESIGN CONTROL REFERENCE 3007846
