Product Details | METAL TUBE ASSEMBLY
4710-00-463-7756 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 694471, 4710-00-463-7756, 00-463-7756, 4710004637756, 004637756
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-463-7756 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-00-463-7756
Demand History | NSN 4710-00-463-7756
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-00-463-7756 | 2009-06-181 | 62 | DIBBS |
| 4710-00-463-7756 | 2008-12-352 | 62 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4710-00-463-7756
Related Products | NSN 4710-00-463-7756
Technical Data | NSN 4710-00-463-7756
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | ALUMINUM ALLOY |
| TUBE OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| WALL THICKNESS | 0.100 INCHES NOMINAL |

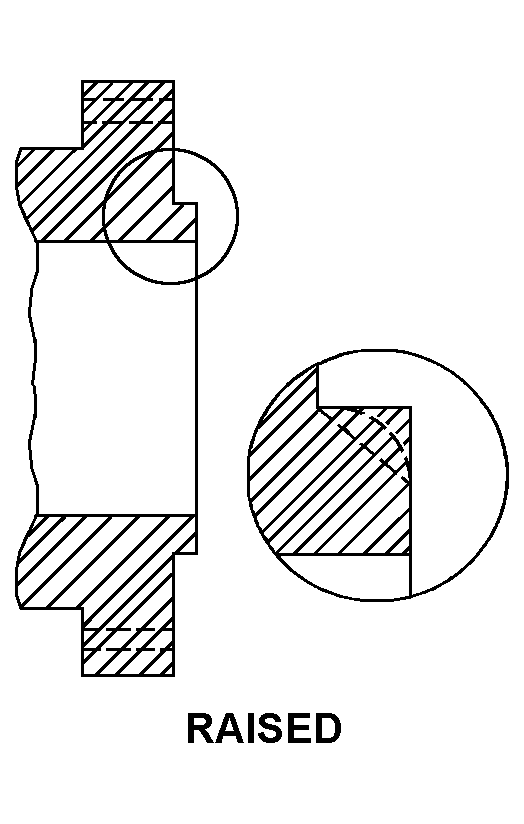

| END CONNECTION STYLE | B69 RAISED B73 RECESSED |
| BOLT HOLE QUANTITY | 2 |
| BOLT HOLE DIAMETER | 0.219 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 0.422 INCHES NOMINAL |
| DESIGN FORM | PREBENT |
| OVERALL LENGTH | 1.618 INCHES NOMINAL |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 694471 |
Restrictions/Controls & Freight Information | NSN 4710-00-463-7756
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
