NSN 4710-00-461-5172 AP6865863, 6865863, 00-461-5172
Product Details | METAL TUBE ASSEMBLY
4710-00-461-5172 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: AP6865863, 6865863, 4710-00-461-5172, 00-461-5172, 4710004615172, 004615172
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 02 MAY 1969 | 00-461-5172 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-00-461-5172
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-00-461-5172
Technical Data | NSN 4710-00-461-5172
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | STEEL, CORROSION RESISTING |
| TUBE OUTSIDE DIAMETER | 1.245 INCHES MINIMUM AND 1.255 INCHES MAXIMUM |
| WALL THICKNESS | 0.025 INCHES MINIMUM AND 0.031 INCHES MAXIMUM |

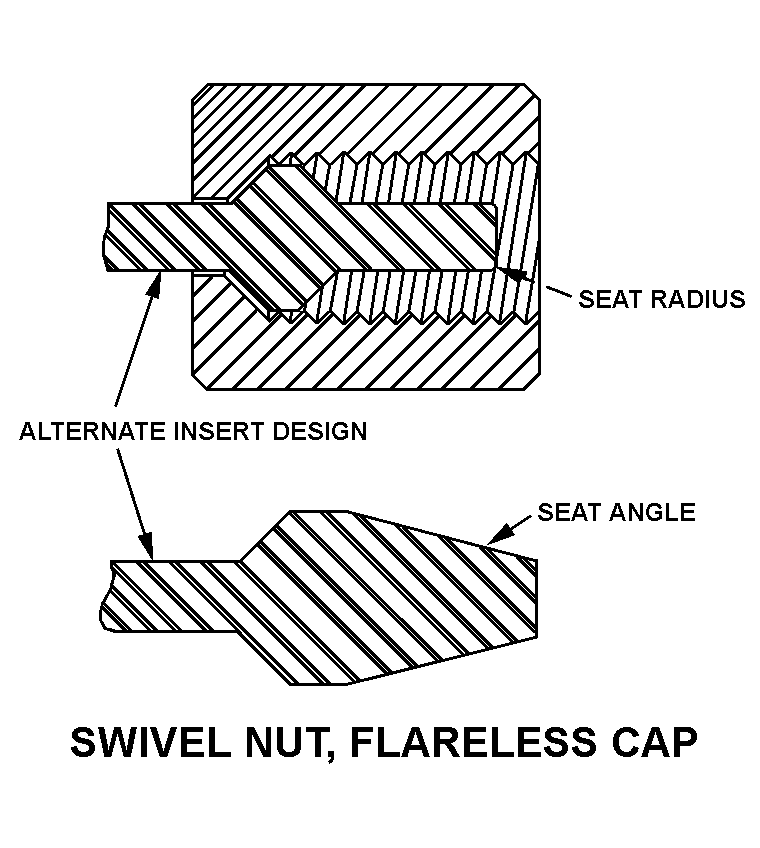

| END CONNECTION STYLE | B17 SWIVEL NUT, FLARELESS CAP B69 RAISED |
| MATING END QUANTITY | 2 |
| MATERIAL | STEEL, CORROSION RESISTING |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 2.000 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT ANGLE IN DEG | 30.0 |
| BOLT HOLE QUANTITY | 2 |
| BOLT HOLE DIAMETER | 0.281 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 2.500 INCHES NOMINAL |
| DESIGN FORM | PREBENT |
| SPECIAL FEATURES | FURNISHED WITH ONE COUPLING NUT AND ONE MOUNTING BRACKET |
| MANUFACTURERS CODE | 05182 |
| DESIGN CONTROL REFERENCE | AP6865863 |
