NSN 4710-00-251-0626 102253, 00-251-0626, 002510626
Product Details | METAL TUBE ASSEMBLY
4710-00-251-0626 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 102253, 4710-00-251-0626, 00-251-0626, 4710002510626, 002510626
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 JUL 1969 | 00-251-0626 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-00-251-0626
Cross Reference | NSN 4710-00-251-0626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102253 | 81795 | ALLIANZ SWEEPER COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-00-251-0626
Technical Data | NSN 4710-00-251-0626
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | COPPER |
| TUBE OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |

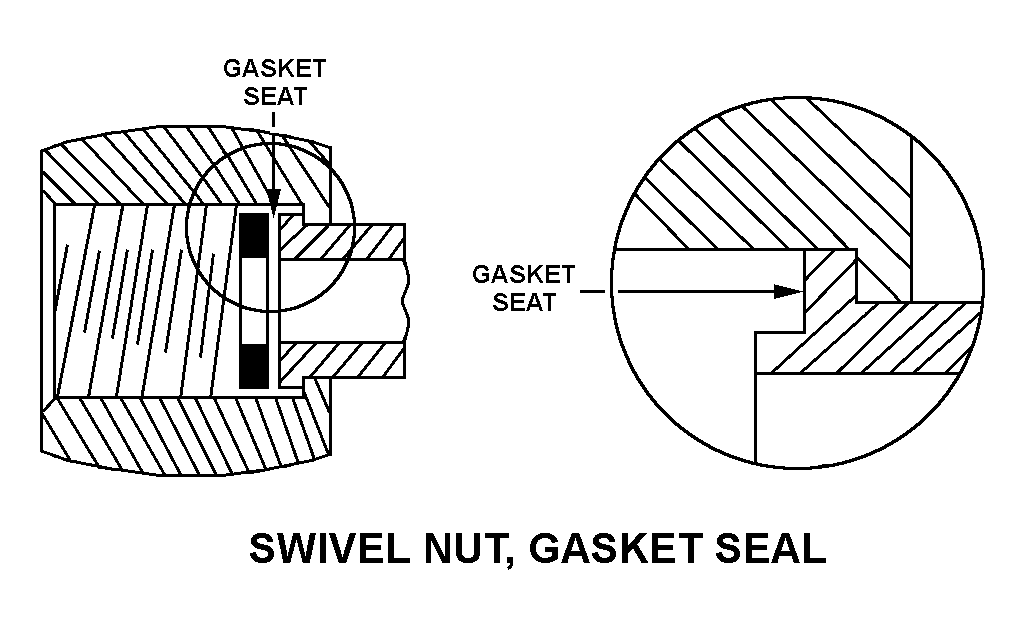

| END CONNECTION STYLE | B10 SWIVEL NUT, GASKET SEAL |
| MATING END QUANTITY | 2 |
| DESIGN FORM | STRAIGHT |
| OVERALL LENGTH | 30.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 81795 |
| DESIGN CONTROL REFERENCE | 102253 |
Restrictions/Controls & Freight Information | NSN 4710-00-251-0626
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051820 | PIPE R TUBING ALUM NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
