NSN 4710-00-071-7180 65307-03024-061, 00-071-7180, 6530703024061
Product Details | METAL TUBE ASSEMBLY
4710-00-071-7180 A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Part Alternates: 65307-03024-061, 4710-00-071-7180, 00-071-7180, 4710000717180, 6530703024061, 000717180
Pipe, Tubing, Hose, and Fittings | Pipe, Tube and Rigid Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 JUL 1967 | 00-071-7180 | 21989 ( TUBE ASSEMBLY, METAL ) |
Drawings & Photos | NSN 4710-00-071-7180
Demand History | NSN 4710-00-071-7180
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4710-00-071-7180 | 2017-10-295 | 4 | DIBBS |
| 4710-00-071-7180 | 2017-09-254 | 4 | DIBBS |
| 4710-00-071-7180 | 2017-08-243 | 4 | DIBBS |
| 4710-00-071-7180 | 2016-02-33 | 1 | DIBBS |
| 4710-00-071-7180 | 2015-10-302 | 4 | DIBBS |
| 4710-00-071-7180 | 2015-04-110 | 16 | DIBBS |
Cross Reference | NSN 4710-00-071-7180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65307-03024-061 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4710-00-071-7180
Technical Data | NSN 4710-00-071-7180
| Characteristic | Specifications |
|---|---|
| TUBING MATERIAL | ALUMINUM ALLOY, MIL-T-7081, T6 |
| TUBE OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| WALL THICKNESS | 0.035 INCHES NOMINAL |

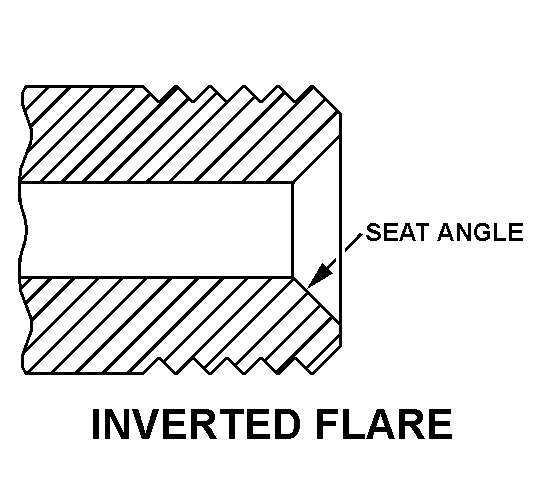

| END CONNECTION STYLE | B36 INVERTED FLARE |
| MATING END QUANTITY | 1 |
| MATERIAL | ALUMINUM ALLOY |
| NOMINAL THREAD SIZE | 1.875 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT ANGLE IN DEG | 33.0 |
| END CONNECTION SPEC/STD | NAS,NAS 591,NAS 591-24 |
| DESIGN FORM | PREBENT |
| III FSC APPLICATION DATA | FUSELAGE,AIRFRAME |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 65307-03024-061 |
Restrictions/Controls & Freight Information | NSN 4710-00-071-7180
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051820 | PIPE R TUBING ALUM NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4710-00-071-7180
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
