NSN 4540-01-049-9160 C14421, C1442-1, TA 10499160
Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4540-01-049-9160 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: C14421, C1442-1, TA 10499160, TA10499160, 054146114000, 054-146114-000, 155146137001, 155-146137-001, 7291959431, 729-19594-31, 729XQ0646, 4540-01-049-9160, 01-049-9160, 4540010499160, 010499160
Plumbing, Heating, and Waste Disposal Equipment | Waste Disposal Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 30 OCT 1977 | 01-049-9160 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4540-01-049-9160
Demand History | NSN 4540-01-049-9160
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 155-146137-001 | 2022-01-25 | 0 | |
| 4540-01-049-9160 | 2022-01-21 | 0 | NECO |
| 155-146137-001 | 2021-10-280 | 0 | |
| 4540-01-049-9160 | 2021-10-279 | 0 | NECO |
| 155-146137-001 | 2021-07-202 | 0 | |
| 4540-01-049-9160 | 2021-07-201 | 0 | NECO |
| 155-146137-001 | 2021-04-91 | 0 | |
| 4540-01-049-9160 | 2021-03-90 | 0 | NECO |
| 155-146137-001 | 2021-02-43 | 0 | |
| 4540-01-049-9160 | 2021-02-42 | 0 | NECO |
| 155-146137-001 | 2018-11-326 | 2 | |
| 4540-01-049-9160 | 2018-11-325 | 2 | NECO |
| 4540-01-049-9160 | 2013-04-95 | 4 | NECO |
Cross Reference | NSN 4540-01-049-9160
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 054-146114-000 | 07131 | CHROMALOX INC |
| 054-146114-000 | 65586 | CHROMALOX, INC. DBA OGDEN |
| 155-146137-001 | 65586 | CHROMALOX, INC. DBA OGDEN |
| 729-19594-31 | 74924 | INDUSTRIAL ENGINEERING AND EQUIPMENT COMPANY, INCORPORATED |
| 729XQ0646 | 74924 | INDUSTRIAL ENGINEERING AND EQUIPMENT COMPANY, INCORPORATED |
| C1442-1 | 11835 | TRUHEAT INC. |
| TA 10499160 | 55581 | TAMCO INC. DBA TECHNICAL ASSISTANCE COMPANY DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4540-01-049-9160
Technical Data | NSN 4540-01-049-9160
| Characteristic | Specifications |
|---|---|

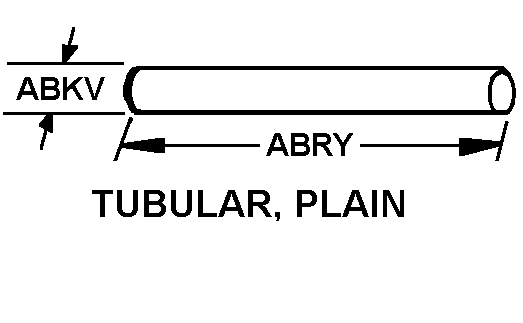

| BODY STYLE | 6 TUBULAR, PLAIN |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | NICKEL ALLOY SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 440.0 AC SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 300000.0 SINGLE VOLTAGE |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |

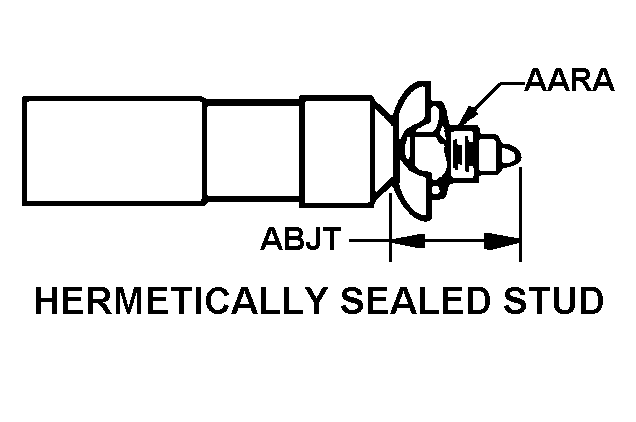

| ELEMENT CONNECTION STYLE | 5 HERMETICALLY SEALED STUD |
Restrictions/Controls & Freight Information | NSN 4540-01-049-9160
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062240 | HEATERS IMMERSION ELEC IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4540-01-049-9160
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
