NSN 4540-00-007-3703 02266-2775, 22662775, 2266-2775
Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4540-00-007-3703 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: 02266-2775, 22662775, 2266-2775, 4540-00-007-3703, 00-007-3703, 4540000073703, 022662775, 000073703
Plumbing, Heating, and Waste Disposal Equipment | Waste Disposal Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 07 JUL 1972 | 00-007-3703 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4540-00-007-3703
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4540-00-007-3703
Technical Data | NSN 4540-00-007-3703
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 31 TUBULAR, SCREW TYPE |
| OVERALL LENGTH | 11.688 INCHES NOMINAL |
| LENGTH | 10.500 INCHES NOMINAL |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | ANY ACCEPTABLE RESISTANCE WIRE ANY ACCEPTABLE RESISTANCE WIRE EMBEDDING/SUPPORT INSULATION STEEL SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 120.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | ANY ACCEPTABLE |
| PHASE | SINGLE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 450.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | NOT RATED SINGLE VOLTAGE |
| POWER CABLE NOMINAL LENGTH | 7.000 INCHES |
| FLEXIBLE TUBE NOMINAL LENGTH | ANY ACCEPTABLE |
| EFFECTIVE HEATING LENGTH | ANY ACCEPTABLE |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 12 WIRE LEAD W/TERMINAL LUG |
| TERMINAL QUANTITY | 2 |
| TERMINAL LENGTH | 6.000 INCHES NOMINAL |

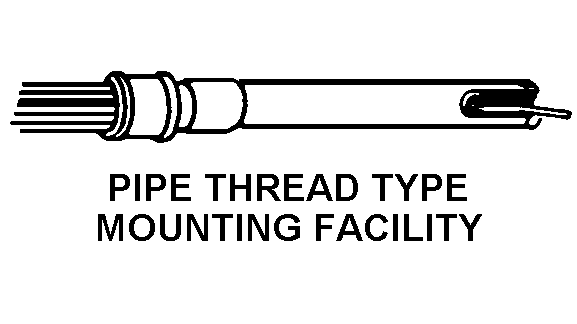

| MOUNTING METHOD STYLE | 8 PIPE THREAD TYPE MOUNTING FACILITY |
| MANUFACTURERS CODE | 79343 |
| DESIGN CONTROL REFERENCE | 02266-2775 |
Restrictions/Controls & Freight Information | NSN 4540-00-007-3703
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026040 | ELEMENTS IMMERSION HEATING |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
