NSN 4520-01-549-3489 PA20397/2111, PA20397/2111 REV 3 ITEM 03, PA203972111
Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-549-3489 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: PA20397/2111, PA20397/2111 REV 3 ITEM 03, PA203972111, PA203972111REV3ITEM03, 144864, 4520-01-549-3489, 01-549-3489, 4520015493489, 015493489
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 19 MAR 2007 | 01-549-3489 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-549-3489
Demand History | NSN 4520-01-549-3489
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 144864 | 2023-08-221 | 8 | DIBBS |
| PA20397/2111 REV 3 ITEM 03 | 2023-08-221 | 8 | DIBBS |
| 144864 | 2021-07-195 | 3 | DIBBS |
| PA20397/2111 REV 3 ITEM 03 | 2021-07-195 | 3 | DIBBS |
| 144864 | 2021-05-132 | 1 | DIBBS |
| PA20397/2111 REV 3 ITEM 03 | 2021-05-132 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-549-3489
Technical Data | NSN 4520-01-549-3489
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1 STRIP ELEMENT |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| WIDTH | 2.500 INCHES NOMINAL |
| LENGTH | 10.500 INCHES NOMINAL |

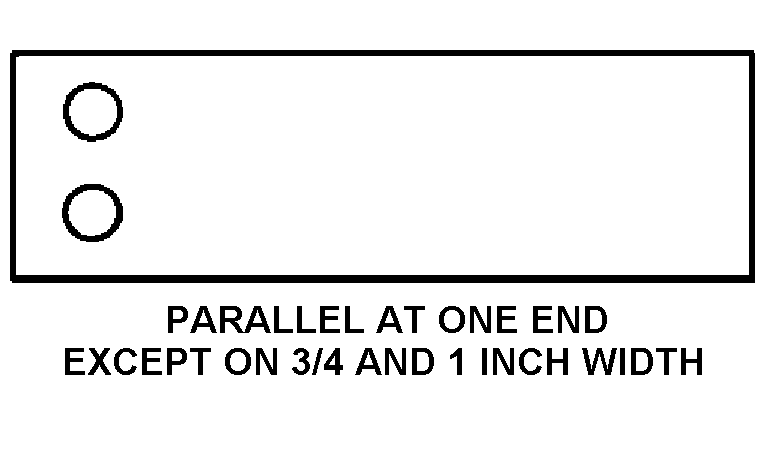

| TERMINAL ARRANGEMENT STYLE | 3 PARALLEL AT ONE END EXCEPT ON 3/4 AND 1 INCH WIDTH |
| MATERIAL | STEEL CORROSION RESISTING SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 240.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 800.0 SINGLE VOLTAGE |
| ELEMENT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 4 STUD TYPE |
| SPECIAL FEATURES | EXPORT CONTROL-NOT TO BE DISTRIBUTED OUTSIDE OF US |
| III END ITEM IDENTIFICATION | PA20397/2120 APS PWR ELEC CUBICLE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | (INAVY)HEATER STRIP;(DRAWING)HEATER ASSY COVER AND INDEX SHEET(PA20397/2111) |
Restrictions/Controls & Freight Information | NSN 4520-01-549-3489
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026520 | HEATERS WATER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-549-3489
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
