NSN 4520-01-547-8985 RECSS30904, 01-547-8985, 015478985
Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-547-8985 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: RECSS30904, 4520-01-547-8985, 01-547-8985, 4520015478985, 015478985
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 02 FEB 2007 | 01-547-8985 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-547-8985
Demand History | NSN 4520-01-547-8985
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4520-01-547-8985 | 2016-10-287 | 1 | CA |
| 4520-01-547-8985 | 2013-11-311 | 2 | US |
Cross Reference | NSN 4520-01-547-8985
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RECSS30904 | 95408 | HOTSTART INC. DBA HOTSTART |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-547-8985
Technical Data | NSN 4520-01-547-8985
| Characteristic | Specifications |
|---|---|

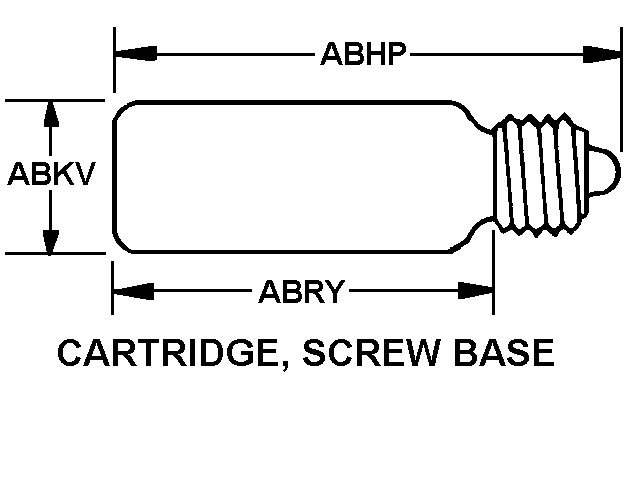

| BODY STYLE | 23 CARTRIDGE, SCREW BASE |
| PHASE | THREE SINGLE VOLTAGE |
| HEAT CONTROL TYPE | THERMOSTAT |
| THERMOSTAT RANGE | 65.0 TO 140.0 DEG FAHRENHEIT |
| ELEMENT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 12 WIRE LEAD W/TERMINAL LUG |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CSS COOLANT SMALL SYSTEM |
| MANUFACTURERS CODE | 95408 |
| DESIGN CONTROL REFERENCE | RECSS30904 |
Restrictions/Controls & Freight Information | NSN 4520-01-547-8985
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4520-01-547-8985
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
