NSN 4520-01-547-0478 C60T5112B2W34, XHF4544034CLT, XHF-45-440-34-CLT
Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-547-0478 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: C60T5112B2W34, XHF4544034CLT, XHF-45-440-34-CLT, XHF4544034CLT33, 4520-01-547-0478, 01-547-0478, 4520015470478, 015470478
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 11 JAN 2007 | 01-547-0478 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-547-0478
Demand History | NSN 4520-01-547-0478
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4520-01-547-0478 | 2013-02-58 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-547-0478
Technical Data | NSN 4520-01-547-0478
| Characteristic | Specifications |
|---|---|

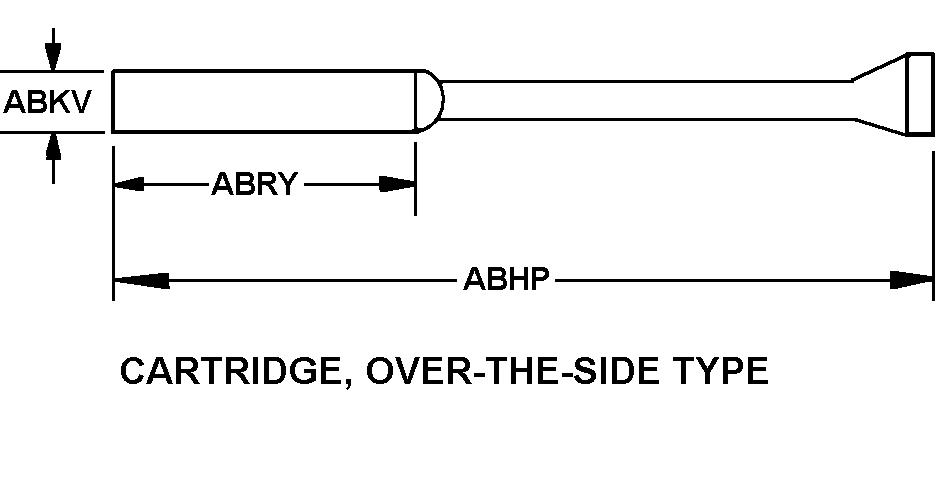

| BODY STYLE | 40 CARTRIDGE, OVER-THE-SIDE TYPE |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | COPPER SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 440.0 AC ALL VOLTAGES |
| MAXIMUM WATTAGE RATING IN WATTS | 4500.0 SINGLE VOLTAGE |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 4 STUD TYPE |
| III END ITEM IDENTIFICATION | HEATER, WATER, ELECTRIC; P/N MSH200-0-45CNT4 |
| MANUFACTURERS CODE | 19857 |
| DESIGN CONTROL REFERENCE | XHF45-440-34C-LT*3+3 |
Restrictions/Controls & Freight Information | NSN 4520-01-547-0478
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4520-01-547-0478
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
