Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-530-8508 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: 8331, 833-1, 4520-01-530-8508, 01-530-8508, 4520015308508, 015308508
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 14 JUN 2005 | 01-530-8508 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-530-8508
Demand History | NSN 4520-01-530-8508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4520-01-530-8508 | 2015-08-221 | 9 | DIBBS |
| 4520-01-530-8508 | 2014-05-124 | 2 | DIBBS |
Cross Reference | NSN 4520-01-530-8508
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 833-1 | 90423 | THE GRIEVE CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-530-8508
Technical Data | NSN 4520-01-530-8508
| Characteristic | Specifications |
|---|---|

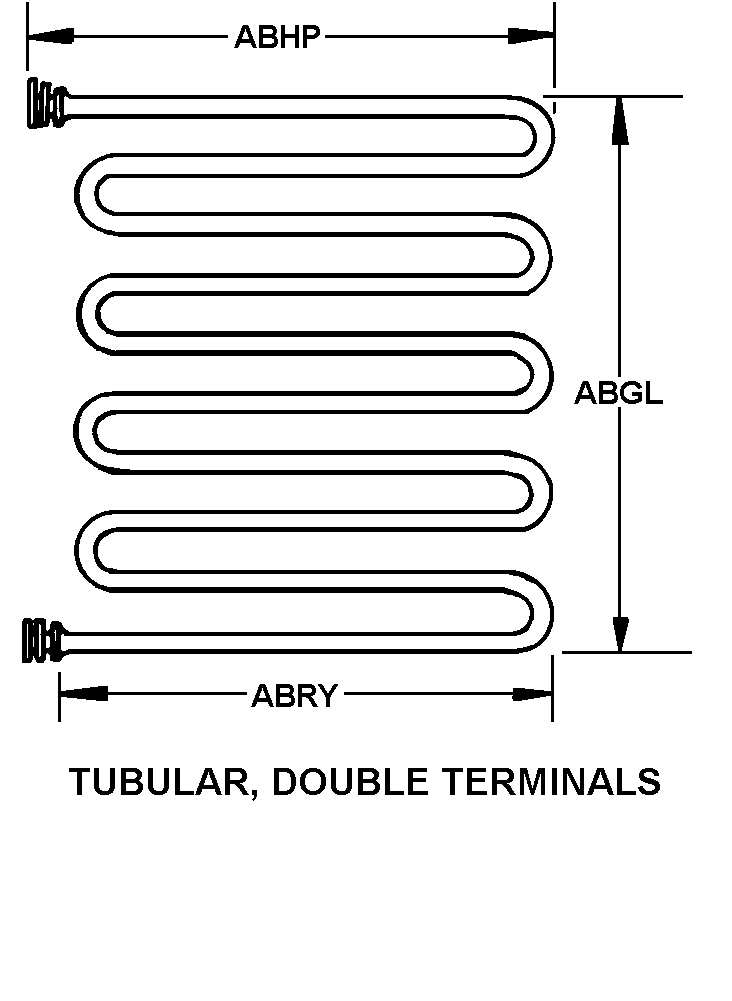

| BODY STYLE | 62 TUBULAR, DOUBLE TERMINALS |
| OVERALL LENGTH | 37.188 INCHES NOMINAL |
| WIDTH | 16.250 INCHES NOMINAL |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | NICKEL AND IRON AND CHROMIUM SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 230.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 6666.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | 32.0 PER SQUARE INCH SINGLE VOLTAGE |
| EFFECTIVE HEATING LENGTH | ANY ACCEPTABLE |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 4 STUD TYPE |
| TERMINAL QUANTITY | 2 |
| TERMINAL LENGTH | 1.188 INCHES NOMINAL |
| MOUNTING METHOD STYLE | 12 AXIAL STUD TYPE MOUNTING FACILITY |
| MOUNTING FACILITY LENGTH | 6.500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF STUD |
| NOMINAL THREAD SIZE | 0.190 INCHES STUD |
| MANUFACTURERS CODE | 90423 |
| DESIGN CONTROL REFERENCE | 833-1 |
