NSN 4520-01-530-3500 RWE103, 54286CONFIGURATION4, 91126-8 ITEM R20
Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-530-3500 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: RWE103, 54286CONFIGURATION4, 91126-8 ITEM R20, 911268ITEMR20, 4520-01-530-3500, 01-530-3500, 4520015303500, 015303500
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 24 MAY 2005 | 01-530-3500 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-530-3500
Demand History | NSN 4520-01-530-3500
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 54-286, CONFIGURATION 4 | 2022-01-31 | 1 | DIBBS |
| 91126-8 ITEM R20 | 2022-01-31 | 1 | DIBBS |
| RWE103 | 2022-01-31 | 1 | DIBBS |
| 54-286, CONFIGURATION 4 | 2020-08-224 | 4 | DIBBS |
| 91126-8 ITEM R20 | 2020-08-224 | 4 | DIBBS |
| RWE103 | 2020-08-224 | 4 | DIBBS |
| 4520-01-530-3500 | 2017-10-297 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-530-3500
Technical Data | NSN 4520-01-530-3500
| Characteristic | Specifications |
|---|---|

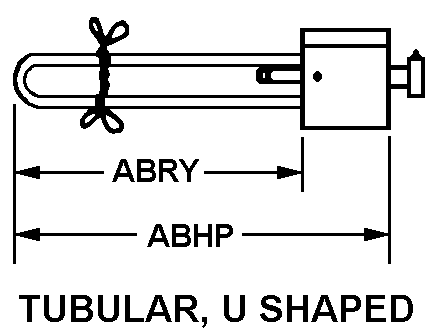

| BODY STYLE | 14 TUBULAR, U SHAPED |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 600.0 SINGLE VOLTAGE |
| ELEMENT QUANTITY | 1 |
| SPECIAL FEATURES | DIA. 1/4 INCH, MADE FROM AN OVERALL LENGTH OF 86 INCHES, |
| III END ITEM IDENTIFICATION | UNIT COOLER FOR AN ARTIC SAFE FREEZER |
Restrictions/Controls & Freight Information | NSN 4520-01-530-3500
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062257 | HEAT ELEMENT/RESISTANCE GRID |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-530-3500
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
