NSN 4520-01-503-5921 CSF00071, 2007848001, 2007848-001
Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-503-5921 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: CSF00071, 2007848001, 2007848-001, 4520-01-503-5921, 01-503-5921, 4520015035921, 015035921
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 26 DEC 2002 | 01-503-5921 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |

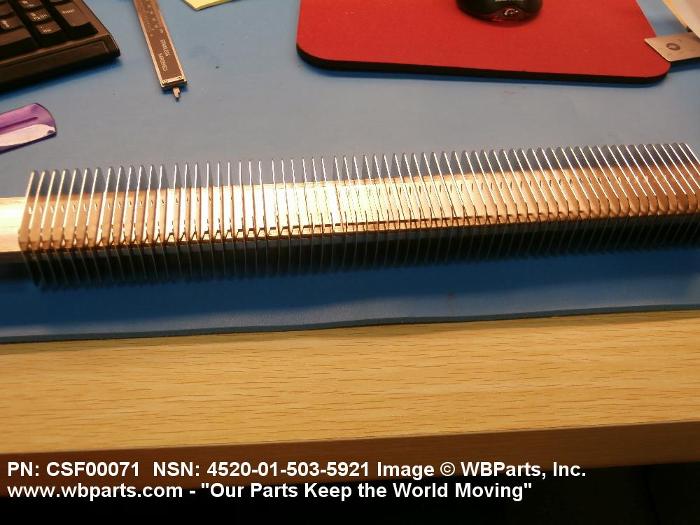

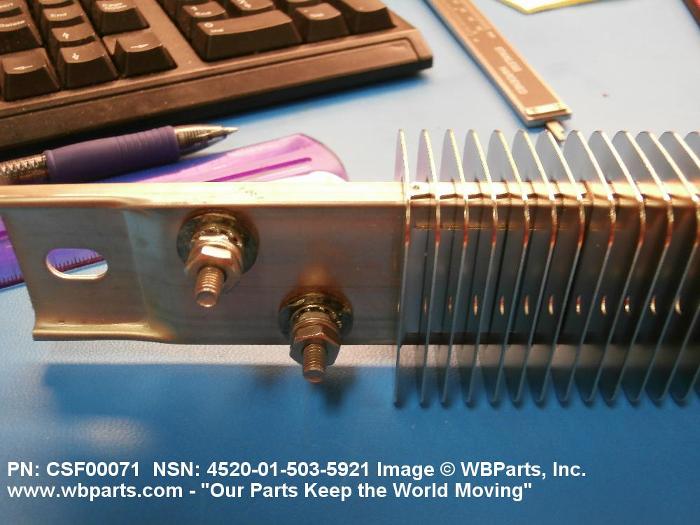

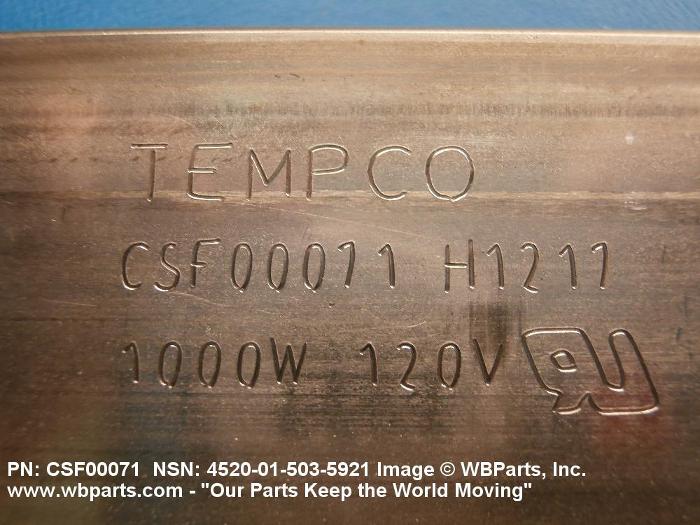

Drawings & Photos | NSN 4520-01-503-5921
Demand History | NSN 4520-01-503-5921
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4520-01-503-5921 | 2015-10-281 | 14 | DIBBS |
| 4520-01-503-5921 | 2014-05-124 | 5 | DIBBS |
| 4520-01-503-5921 | 2012-07-199 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-01-503-5921
Related Products | NSN 4520-01-503-5921
Technical Data | NSN 4520-01-503-5921
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3 STRIP, FINNED |
| OVERALL LENGTH | 17.880 INCHES NOMINAL |
| WIDTH | 2.000 INCHES NOMINAL |
| LENGTH | 13.630 INCHES NOMINAL |
| TERMINAL ARRANGEMENT STYLE | 2 OFFSET OR STAGGERED AT ONE END |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | STEEL CORROSION RESISTING SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 120.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 50.0 |
| PHASE | SINGLE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 1000.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | 21.0 PER SQUARE INCH SINGLE VOLTAGE |
| EFFECTIVE HEATING LENGTH | 13.630 INCHES NOMINAL |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 3 TERMINAL SCREW |
| TERMINAL QUANTITY | 2 |
| MOUNTING METHOD STYLE | 11 STANDOFF TYPE MOUNTING FACILITY |
| MOUNTING FACILITY LENGTH | 1.370 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF SCREW |
| NOMINAL THREAD SIZE | 0.190 INCHES SCREW |
| THREAD QUANTITY | 32 PER INCH SCREW |
| SPECIAL FEATURES | MATERIAL: 304 STAINLESS STEEL; MOUNTING SLOT SIZE: STANDARD 5/16 INCH X 1/2 INCH; MAX. AMPERAGE: 22 AMPS |
| III END ITEM IDENTIFICATION | RADAR THREAT EMITER AN/MST-T1; M3P REU-M |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | HEATER STRIP; FINNED STRIP HEATER |
Restrictions/Controls & Freight Information | NSN 4520-01-503-5921
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062257 | HEAT ELEMENT/RESISTANCE GRID |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-503-5921
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
