Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-503-0787 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: 11735001, 11735-001, 2010864001, 2010864-001, 4520-01-503-0787, 01-503-0787, 4520015030787, 015030787
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 03 DEC 2002 | 01-503-0787 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-503-0787
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-01-503-0787
Related Products | NSN 4520-01-503-0787
Technical Data | NSN 4520-01-503-0787
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1 STRIP ELEMENT |
| WIDTH | 1.000 INCHES NOMINAL |
| LENGTH | 14.280 INCHES NOMINAL |
| TERMINAL ARRANGEMENT STYLE | 5 IN LINE AT ONE END |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | RUBBER SYNTHETIC SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 110.0 AC SINGLE VOLTAGE |
| PHASE | SINGLE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 300.0 SINGLE VOLTAGE |
| HEAT CONTROL TYPE | THERMOSTAT |
| THERMOSTAT RANGE | 140.0 TO 170.0 DEG FAHRENHEIT |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 2 |

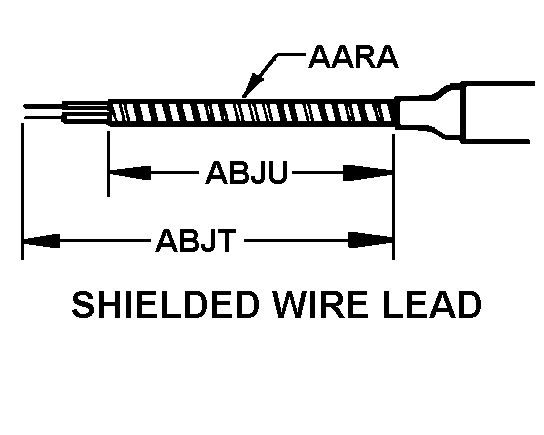

| ELEMENT CONNECTION STYLE | 2 SHIELDED WIRE LEAD |
| TERMINAL QUANTITY | 2 |
| TERMINAL LENGTH | ANY ACCEPTABLE |
| SHIELDING LENGTH | ANY ACCEPTABLE |
| SPECIAL FEATURES | THERMOSTAT SIZE IS 0.60 X 0.28 INCHES; RESISTANCE OF HEATER TO BE: 36.27 MIN AND 44.32 MAX |
| III END ITEM IDENTIFICATION | RADAR THREAT EMITTER AN/MST -T1; M3P REU-M |
