Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT

4520-01-494-5590 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment

Part Alternates: JHA12TA7A111MY, 38500395, 385-00395, 4520-01-494-5590, 01-494-5590, 4520014945590, 014945590

Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment

Supply Group (FSG) NSN Assign. NIIN
45 14 FEB 2002 01-494-5590

Drawings & Photos | NSN 4520-01-494-5590


Cross Reference | NSN 4520-01-494-5590

Part Number Cage Code Manufacturer
385-00395 09009 PRODUCTION CONTROL UNITS INC DBA FOREIGN PARENT IS STERLING FLUID
JHA12TA7A111MY 58823 WELLMAN THERMAL SYSTEMS CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4520-01-494-5590

Technical Data | NSN 4520-01-494-5590

Characteristic Specifications

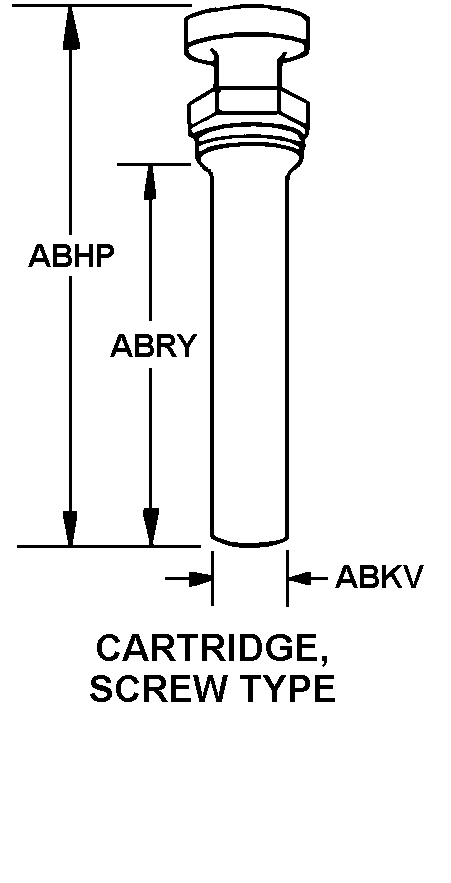

BODY STYLE 30 CARTRIDGE, SCREW TYPE
TERMINAL BOX ENVIRONMENTAL PROTECTION EXPLOSION RESISTANT AND MOISTURE RESISTANT
III SUPPLEMENTARY FEATURES AVAILABLE WITH EXTERNAL THREADED NOZZLE OR FLANGED NOZZLE
III END ITEM IDENTIFICATION AIRCRAFT, B-2 BOMBER

Restrictions/Controls & Freight Information | NSN 4520-01-494-5590

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 026040 ELEMENTS IMMERSION HEATING
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 658 unknown
Originating Activity Code KH Defense Industrial Supply Center
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4520-01-494-5590

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
