NSN 4520-01-493-5992 C050AL63040WPNC43, C050AL63-040WP-NC43, 01-493-5992
Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-01-493-5992 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: C050AL63040WPNC43, C050AL63-040WP-NC43, 4520-01-493-5992, 01-493-5992, 4520014935992, 014935992
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 10 JAN 2002 | 01-493-5992 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4520-01-493-5992
Demand History | NSN 4520-01-493-5992
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4520-01-493-5992 | 2016-04-118 | 15 | DIBBS |
| 4520-01-493-5992 | 2016-03-90 | 4 | DIBBS |
| 4520-01-493-5992 | 2016-03-67 | 2 | DIBBS |
| 4520-01-493-5992 | 2016-02-57 | 1 | DIBBS |
| 4520-01-493-5992 | 2016-02-56 | 2 | DIBBS |
| 4520-01-493-5992 | 2016-02-46 | 1 | DIBBS |
| 4520-01-493-5992 | 2010-03-87 | 1 | DIBBS |
Cross Reference | NSN 4520-01-493-5992
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C050AL63-040WP-NC43 | 95408 | HOTSTART INC. DBA HOTSTART |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-01-493-5992
Technical Data | NSN 4520-01-493-5992
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 45 FLANGE, TYPE |
| OVERALL LENGTH | 15.549 INCHES NOMINAL |
| CONDUIT OPENING SIZE | 0.5000 INCHES NOMINAL |
| LENGTH | 11.630 INCHES NOMINAL |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | PLASTIC SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 480.0 AC SINGLE VOLTAGE |
| PHASE | THREE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 4000.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | NOT RATED SINGLE VOLTAGE |
| ELEMENT QUANTITY | 3 |
| HEAT QUANTITY | 1 |

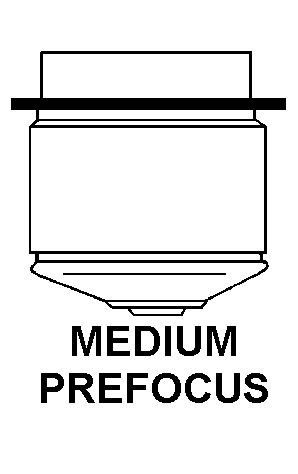

| ELEMENT CONNECTION STYLE | 16 MEDIUM PREFOCUS |
| SPECIAL FEATURES | THERE ARE 2 CONDUIT KNOCKOUTS, AND 4 MOUNTING BOLTS |
| III END ITEM IDENTIFICATION | WATER HEATER |
Restrictions/Controls & Freight Information | NSN 4520-01-493-5992
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 026040 | ELEMENTS IMMERSION HEATING |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-01-493-5992
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
