Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT

4520-01-491-4670 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000

Part Alternates: 118056222000, 118-056222-000, 118056222069, 118-056222-069, 4520-01-491-4670, 01-491-4670, 4520014914670, 014914670

Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment

Supply Group (FSG) NSN Assign. NIIN
45 23 OCT 2001 01-491-4670

Drawings & Photos | NSN 4520-01-491-4670


Demand History | NSN 4520-01-491-4670

Part Number Request Date QTY Origin
118-056222-069 2023-09-261 6 DIBBS
118-056222-069 2023-09-249 6 DIBBS
118056222069 2020-03-83 7 United States
118-056222-069 2020-03-75 7 DIBBS
4520-01-491-4670 2018-03-88 12 DIBBS

Cross Reference | NSN 4520-01-491-4670

Part Number Cage Code Manufacturer
118-056222-000 65586 CHROMALOX, INC. DBA OGDEN
118-056222-069 07131 CHROMALOX INC
118-056222-069 65586 CHROMALOX, INC. DBA OGDEN

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4520-01-491-4670

Technical Data | NSN 4520-01-491-4670

Characteristic Specifications

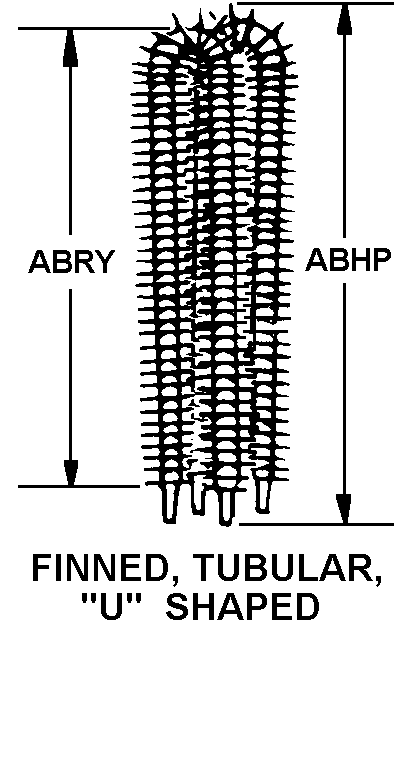

BODY STYLE 26 FINNED, TUBULAR, U SHAPED
OVERALL LENGTH 32.250 INCHES NOMINAL
LENGTH 29.125 INCHES NOMINAL
ELEMENT RADIATION SPECTRUM NONINFRARED
MATERIAL NICKEL ALLOY SHEATH
VOLTAGE IN VOLTS AND CURRENT TYPE 440.0 AC SINGLE VOLTAGE
FREQUENCY IN HERTZ 60.0
PHASE SINGLE SINGLE VOLTAGE
MAXIMUM WATTAGE RATING IN WATTS 4483.0 SINGLE VOLTAGE
WATT DENSITY RATING 54.6 PER SQUARE INCH SINGLE VOLTAGE
EFFECTIVE HEATING LENGTH 55.000 INCHES NOMINAL
ELEMENT QUANTITY 1
HEAT QUANTITY 1

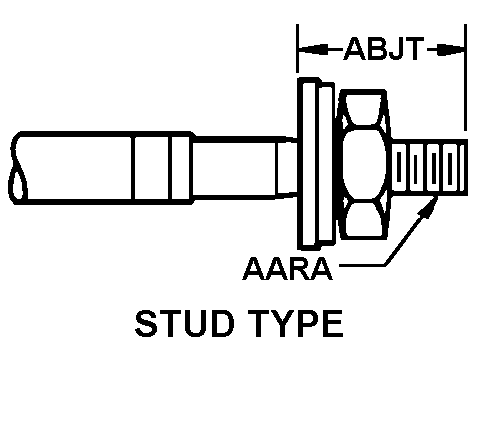

ELEMENT CONNECTION STYLE 4 STUD TYPE
TERMINAL QUANTITY 2
TERMINAL LENGTH ANY ACCEPTABLE

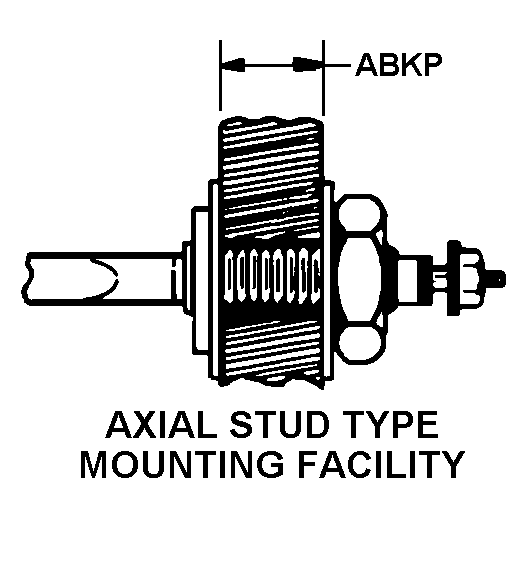

MOUNTING METHOD STYLE 12 AXIAL STUD TYPE MOUNTING FACILITY
MOUNTING FACILITY LENGTH ANY ACCEPTABLE
III END ITEM IDENTIFICATION DUCT HEATER
III PART NAME ASSIGNED BY CONTROLLING AGENCY FINNED TUBULAR ELEMENTS
