Product Details | AIR CONDITIONING-HEATING LATERAL

4520-01-148-6979 A fitting having a branch or branches which are fixed at various angles other than 90 degrees (1.5708 radians) to the run, permitting lines to be taken off laterally from the main line. These laterals may be reducing type.

Part Alternates: Y-2R 12X8X8 IN, Y2R12X8X8IN, 4520-01-148-6979, 01-148-6979, 4520011486979, 011486979

Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment

Supply Group (FSG) NSN Assign. NIIN
45 09 MAR 1983 01-148-6979

Drawings & Photos | NSN 4520-01-148-6979


Cross Reference | NSN 4520-01-148-6979

Part Number Cage Code Manufacturer
Y-2R 12X8X8 IN 09098 UNITED MCGILL CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4520-01-148-6979

Technical Data | NSN 4520-01-148-6979

Characteristic Specifications
MATERIAL STEEL
SHEET METAL GAGE SIZE 20

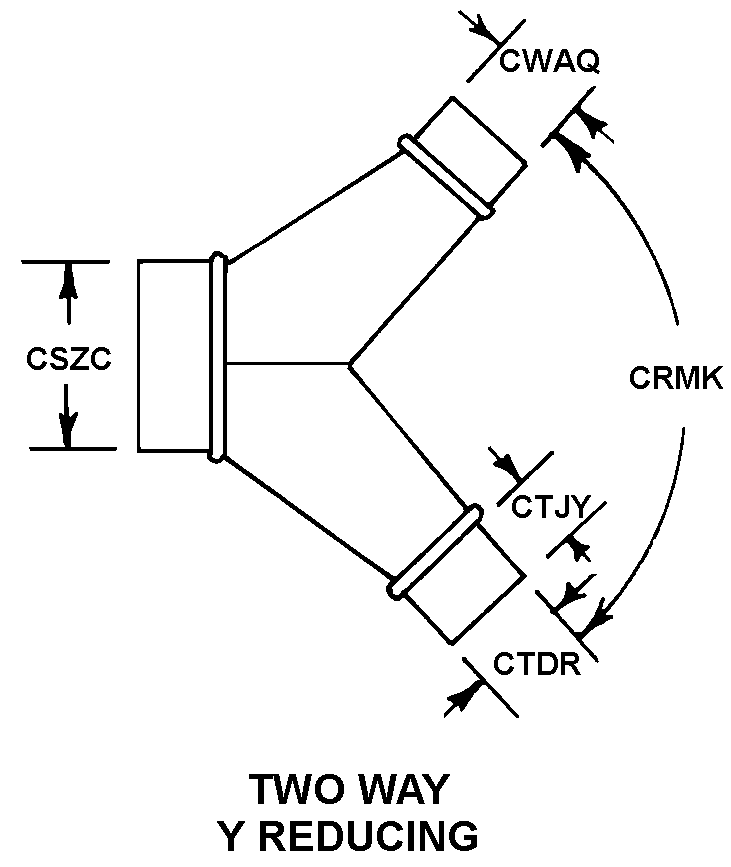

STYLE DESIGNATOR C6 TWO WAY Y REDUCING
MAIN TRUNK INLET DIAMETER 12.000 INCHES NOMINAL
FIRST BRANCH DIAMETER 8.000 INCHES NOMINAL
ATTACHMENT END LENGTH 2.000 INCHES NOMINAL
SECOND BRANCH DIAMETER 8.000 INCHES NOMINAL
ANGLE 90.0 DEGREES NOMINAL

Restrictions/Controls & Freight Information | NSN 4520-01-148-6979

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 72E unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4520-01-148-6979

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
