NSN 4520-01-136-2495 R-1-16X14 IN., R116X14IN, 01-136-2495

4520-01-136-2495 A fitting designed to reduce the size of air conditioning-heating flue pipes or fittings.

Part Alternates: R-1-16X14 IN., R116X14IN, 4520-01-136-2495, 01-136-2495, 4520011362495, 011362495

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
45	05 AUG 1982	01-136-2495	33669 ( REDUCER, AIR CONDITIONING-HEATING )

Part Number	Request Date	QTY	Origin	SBA
4520-01-136-2495	2017-09-249	25	DIBBS
4520-01-136-2495	2017-08-234	25	DIBBS

Part Number	Cage Code	Manufacturer
R-1-16X14 IN.	09098	UNITED MCGILL CORP

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 4520-01-136-2495

Compare

4520-01-136-5495, 4520-01-136-6599, 4520-01-136-7524, 4520-01-137-1137, 4520-01-137-1138

Characteristic	Specifications
MATERIAL	STEEL
SURFACE TREATMENT	ZINC
SHEET METAL GAGE SIZE	24

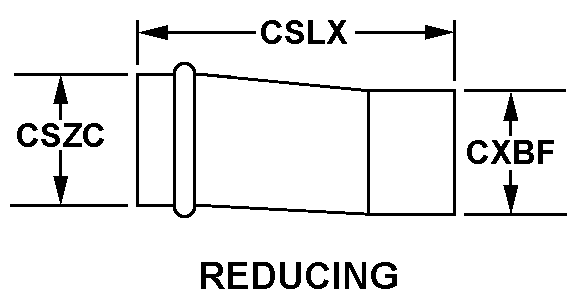

STYLE DESIGNATOR	E1 REDUCING
FITTING OVERALL LENGTH	6.000 INCHES NOMINAL
MAIN TRUNK INLET DIAMETER	16.000 INCHES NOMINAL
MAIN TRUNK REDUCING OUTLET DIAMETER	14.000 INCHES NOMINAL

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	X	SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
