NSN 4520-00-729-6940 007296940
Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-00-729-6940 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: 007296940
Service and Trade Equipment | Wrapping and Packaging Machinery
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 35 | 00-729-6940 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 3540-00-729-6940
Demand History | NSN 4520-00-729-6940
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1310 | 2024-05-137 | 80 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-00-729-6940
Technical Data | NSN 4520-00-729-6940
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 13.281 INCHES NOMINAL |
| WIDTH | 0.121 INCHES NOMINAL |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | NICKEL-CHROMIUM ALLOY RESISTANCE WIRE |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 48.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 600.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | NOT RATED SINGLE VOLTAGE |
| ELEMENT QUANTITY | 1 |
| HEAT QUANTITY | 1 |
| ELEMENT CONNECTION STYLE | 3 TERMINAL SCREW |
| TERMINAL QUANTITY | 2 |

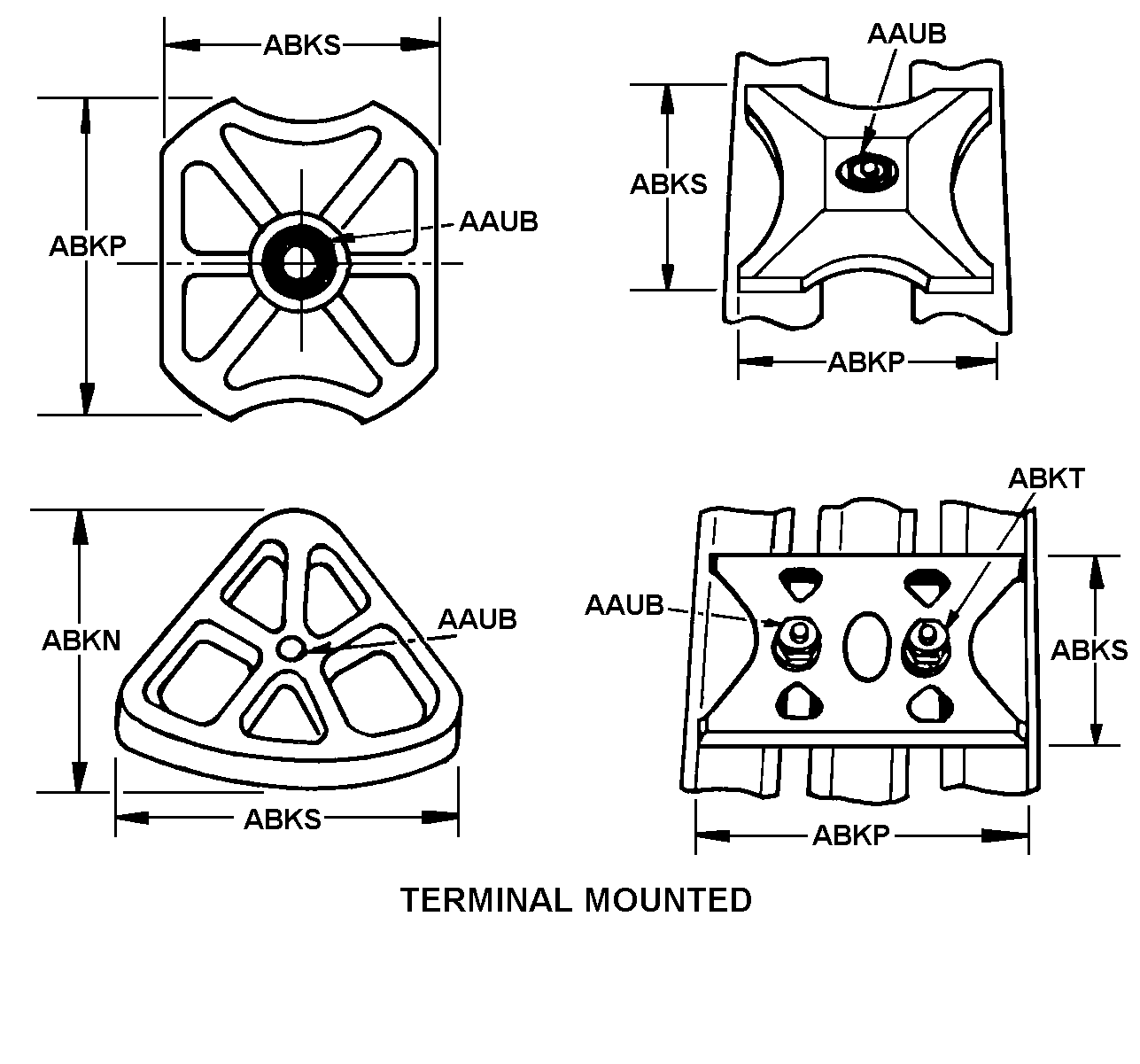

| MOUNTING METHOD STYLE | 1 TERMINAL MOUNTED |
| III FSC APPLICATION DATA | SEALING IRON,ELECTRICAL |
Restrictions/Controls & Freight Information | NSN 4520-00-729-6940
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
