NSN 4520-00-226-7291 MAB87186, BSK43374, CEB85313
Product Details | NONIMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-00-226-7291 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated.2042540000041300000441000004520000000
Part Alternates: MAB87186, BSK43374, CEB85313, 4520-00-226-7291, 00-226-7291, 4520002267291, 002267291
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 01 JAN 1963 | 00-226-7291 | 29427 ( HEATING ELEMENT, ELECTRICAL, NONIMMERSION TYPE ) |
Drawings & Photos | NSN 4520-00-226-7291
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4520-00-226-7291
Related Products | NSN 4520-00-226-7291
Technical Data | NSN 4520-00-226-7291
| Characteristic | Specifications |
|---|---|

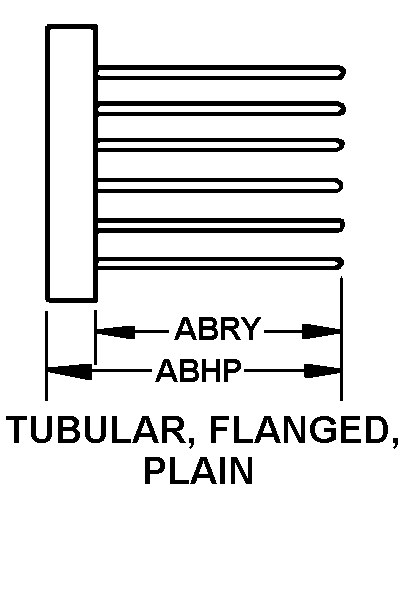

| BODY STYLE | 58 TUBULAR, FLANGED, PLAIN |
| OVERALL LENGTH | 22.125 INCHES NOMINAL |
| LENGTH | 18.000 INCHES NOMINAL |

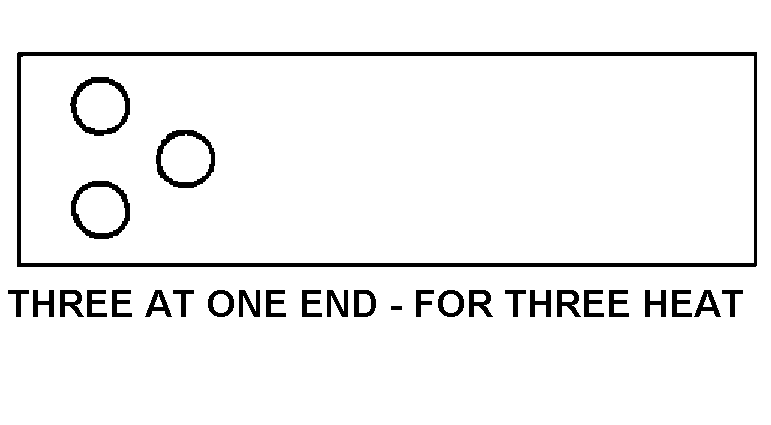

| TERMINAL ARRANGEMENT STYLE | 4 THREE AT ONE END-FOR THREE HEAT |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | STEEL RESISTANCE WIRE |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 208.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 6400.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | NOT RATED SINGLE VOLTAGE |
| HEAT CONTROL TYPE | ANY ACCEPTABLE |
| EFFECTIVE HEATING LENGTH | ANY ACCEPTABLE |
| ELEMENT QUANTITY | 10 |
| HEAT QUANTITY | 3 |

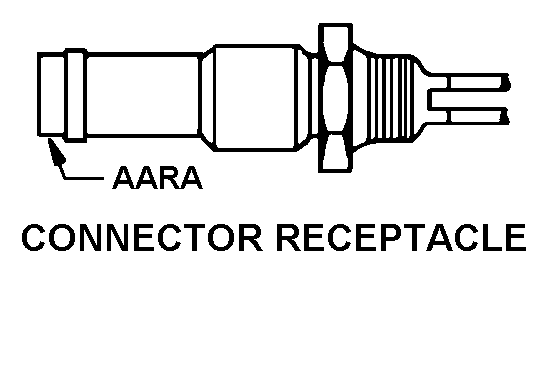

| ELEMENT CONNECTION STYLE | 6 CONNECTOR RECEPTACLE |
| TERMINAL QUANTITY | 3 |
| TERMINAL BOX ENVIRONMENTAL PROTECTION | STANDARD |
| MOUNTING METHOD STYLE | 3 SLOT OR HOLE TYPE MOUNTING FACILITY |
| HOLE DIAMETER | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 5.984 INCHES MINIMUM AND 6.016 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 19.000 INCHES MINIMUM AND 19.125 INCHES MAXIMUM |
| HOLE OR SLOT QUANTITY | 4 |
| SPECIAL FEATURES | DESIGN ANALYSIS; NUCLEAR HARDNESS CRITICAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III FSC APPLICATION DATA | AIR COOLER UNIT |
| MANUFACTURERS CODE | 10855 |
| MFR SOURCE CONTROLLING REFERENCE | CEB85313 |
Restrictions/Controls & Freight Information | NSN 4520-00-226-7291
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062257 | HEAT ELEMENT/RESISTANCE GRID |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4520-00-226-7291
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AH | SU:LGM-30 MINUTEMAN |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
