NSN 4520-00-204-0680 WWV160, WW-V-160, 00-204-0680
Product Details | HEATING RADIATOR VALVE
4520-00-204-0680 A valve specifically designed for installation in the supply line of a heating radiator. It has a female inlet and a ground joint union nut with a male iron pipe threaded tailpiece outlet.
Part Alternates: WWV160, WW-V-160, 4520-00-204-0680, 00-204-0680, 4520002040680, 002040680
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 01 JAN 1963 | 00-204-0680 | 04846 ( VALVE, RADIATOR, HEATING ) |
Drawings & Photos | NSN 4520-00-204-0680
Cross Reference | NSN 4520-00-204-0680
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WW-V-160 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-00-204-0680
Technical Data | NSN 4520-00-204-0680
| Characteristic | Specifications |
|---|---|

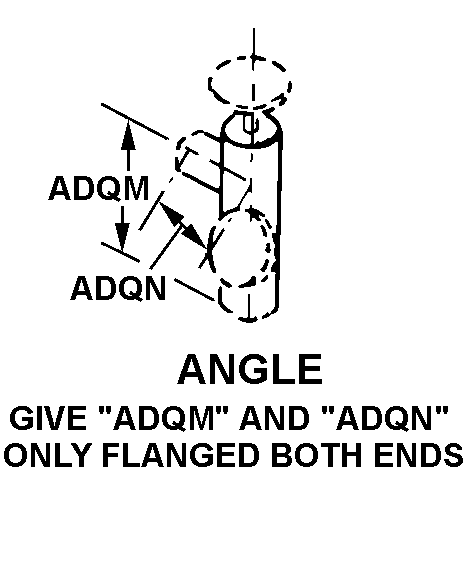

| BODY STYLE | A39 ANGLE |
| BODY MATERIAL | BRASS |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DISK, TOP GUIDED |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | G11 PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 1.250 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| SECOND END STYLE DESIGNATOR | J6 PLAIN |
| SECOND END NOMINAL PIPE SIZE ACCOMMODATED | 1.250 INCHES |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| VALVE OPERATION METHOD | WHEEL |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| MEDIA FOR WHICH DESIGNED | STEAM |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WW-V-160 |
Restrictions/Controls & Freight Information | NSN 4520-00-204-0680
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
