Product Details | IMMERSION TYPE ELECTRICAL HEATING ELEMENT
4520-00-008-4869 An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and a sheath. It is designed to transform electrical current into heat while immersed in a liquid to be heated or in contact with materials to be melted. It may include an automatic control to regulate the amount of heat generated.2042590000041300045Refrigeration and Air Conditioning Components44100018Industrial Boilers45200033Space and Water Heating Equipment
Part Alternates: ARMTS360, ARMTS3605VWXXAR2524, SE12XC01, 4520-00-008-4869, 00-008-4869, 4520000084869, 000084869
Plumbing, Heating, and Waste Disposal Equipment | Space and Water Heating Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 16 JUL 1972 | 00-008-4869 | 11327 ( HEATING ELEMENT, ELECTRICAL, IMMERSION TYPE ) |
Drawings & Photos | NSN 4520-00-008-4869
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4520-00-008-4869
Technical Data | NSN 4520-00-008-4869
| Characteristic | Specifications |
|---|---|

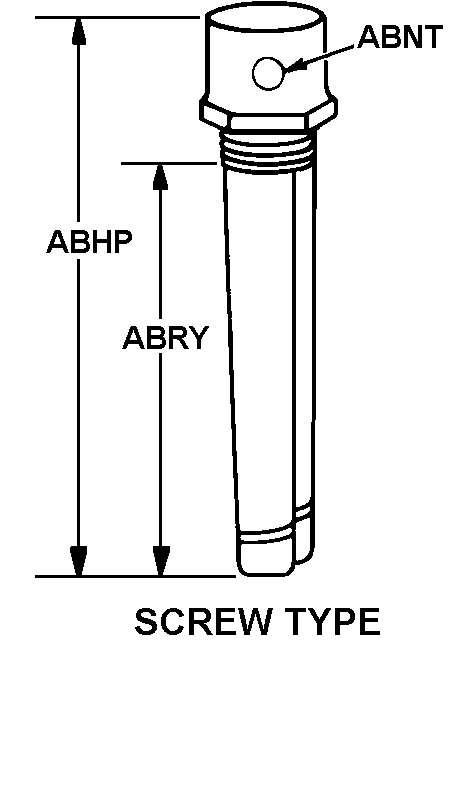

| BODY STYLE | 27 SCREW TYPE |
| OVERALL LENGTH | 25.250 INCHES NOMINAL |
| CONDUIT OPENING SIZE | 1.063 INCHES NOMINAL |
| LENGTH | 17.750 INCHES NOMINAL |
| ELEMENT RADIATION SPECTRUM | NONINFRARED |
| MATERIAL | STEEL CORROSION RESISTING SHEATH |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 440.0 AC SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 50.0 AND 60.0 |
| PHASE | THREE SINGLE VOLTAGE |
| MAXIMUM WATTAGE RATING IN WATTS | 5000.0 SINGLE VOLTAGE |
| WATT DENSITY RATING | 45.0 PER SQUARE INCH SINGLE VOLTAGE |
| HEAT CONTROL TYPE | THERMOCOUPLE |
| EFFECTIVE HEATING LENGTH | 17.750 INCHES NOMINAL |
| ELEMENT QUANTITY | 3 |
| HEAT QUANTITY | 3 |
| ELEMENT CONNECTION STYLE | 3 TERMINAL SCREW |
| TERMINAL QUANTITY | ANY ACCEPTABLE |

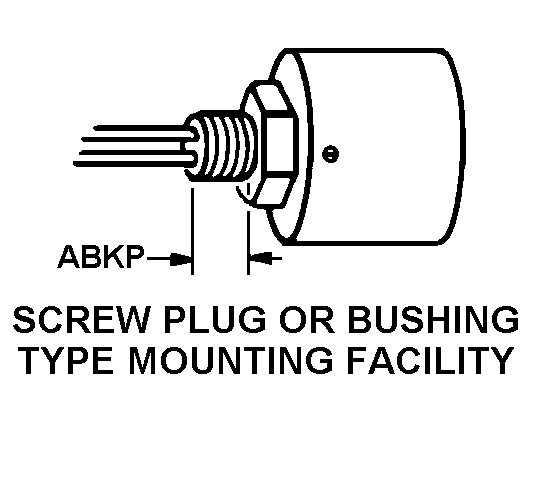

| MOUNTING METHOD STYLE | 9 SCREW PLUG OR BUSHING TYPE MOUNTING FACILITY |
| MOUNTING FACILITY LENGTH | 2.000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC SCREW NPT MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.164 INCHES SCREW 2.500 INCHES MOUNTING FACILITY |
| THREAD QUANTITY | 32.0 PER INCH SCREW 8.0 PER INCH MOUNTING FACILITY |
