NSN 4510-01-473-3615 TMS25RF, TMS-25-RF, 01-473-3615
Product Details | WATER MIXING VALVE
4510-01-473-3615 A valve having one discharge connection and separate hot and cold inlet connections in one body. It is designed to mix water to a desired temperature.
Part Alternates: TMS25RF, TMS-25-RF, 4510-01-473-3615, 01-473-3615, 4510014733615, 014733615
Plumbing, Heating, and Waste Disposal Equipment | Plumbing Fixtures and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 06 APR 2000 | 01-473-3615 | 30193 ( VALVE, WATER MIXING ) |
Drawings & Photos | NSN 4510-01-473-3615
Cross Reference | NSN 4510-01-473-3615
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TMS-25-RF | 35764 | LEONARD VALVE CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4510-01-473-3615
Related Products | NSN 4510-01-473-3615
Technical Data | NSN 4510-01-473-3615
| Characteristic | Specifications |
|---|---|

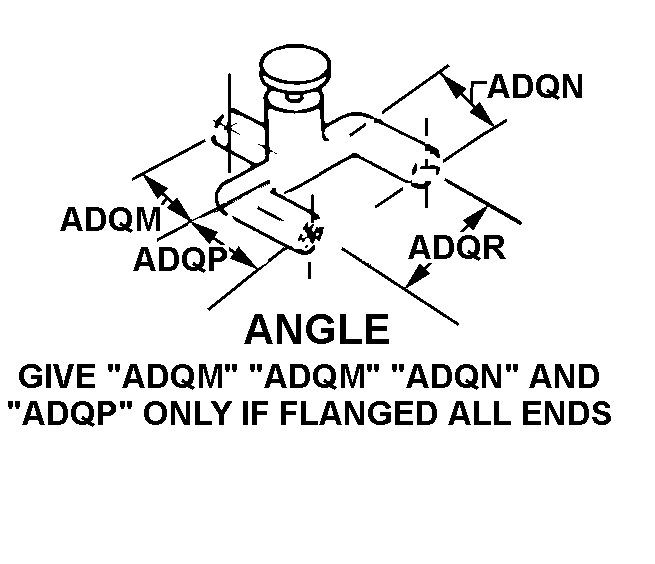

| BODY STYLE | A25 ANGLE |
| BODY MATERIAL | BRONZE |
| SEAT MATERIAL | BRONZE |
| FLOW CONTROL DEVICE | PISTON, SPRING LOADED |
| FLOW CONTROL DEVICE MATERIAL | BRONZE |
| STEM MATERIAL | BRONZE |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SECOND END NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH SECOND END |
| THIRD END NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| MEDIA FOR WHICH DESIGNED | STEAM OR WATER, FRESH |
| TEMP RATING | NOT RATED |
| VALVE DISCHARGE FLOW RATE | 4.0 GALLONS PER MINUTE |
| USAGE DESIGN | CONCEALED PIPE |
| III END ITEM IDENTIFICATION | WASP CLASS LHD |
| III UNIT OF ISSUE WEIGHT | 17.00 POUNDS |
Restrictions/Controls & Freight Information | NSN 4510-01-473-3615
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4510-01-473-3615
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
