NSN 4510-00-416-9577 M316176, M316-176, 00-416-9577
Product Details | SINK DRAIN
4510-00-416-9577 A drain designed to connect sinks, drinking fountains, wall-hung urinals or stationary laundry tubs to a drain pipe. It has no provisions for overflow.
Part Alternates: M316176, M316-176, 4510-00-416-9577, 00-416-9577, 4510004169577, 004169577
Plumbing, Heating, and Waste Disposal Equipment | Plumbing Fixtures and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | 01 MAY 1974 | 00-416-9577 | 08526 ( DRAIN, SINK ) |

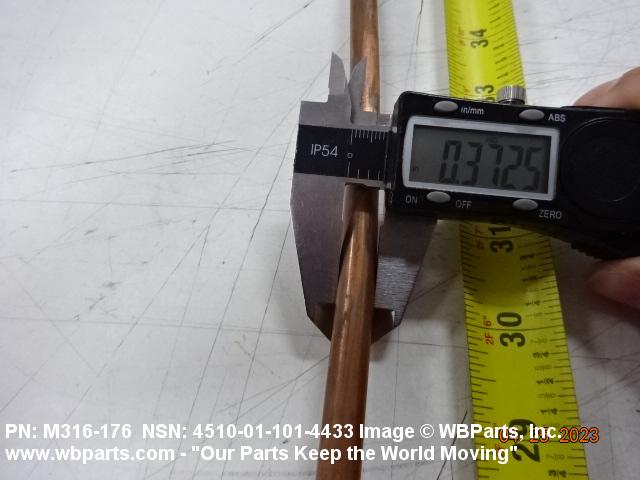

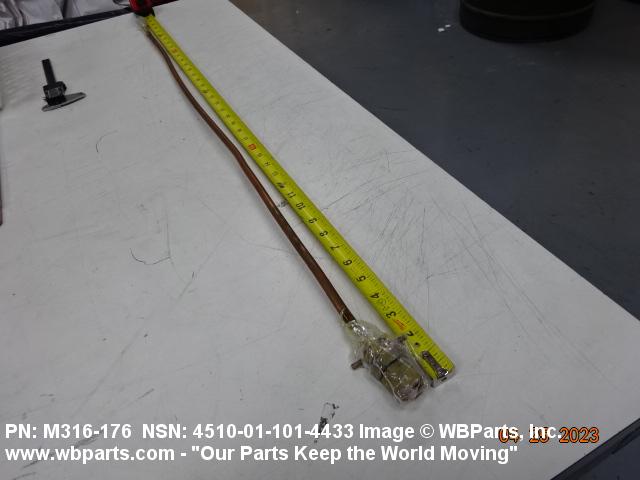

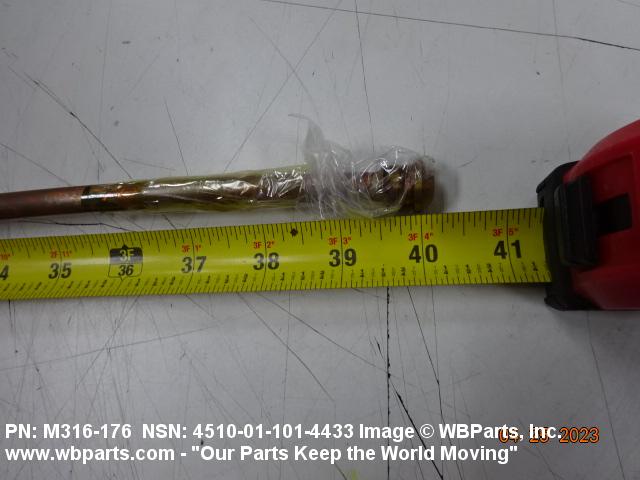

Drawings & Photos | NSN 4510-00-416-9577
Cross Reference | NSN 4510-00-416-9577
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M316-176 | 06071 | DK AEROSPACE CO DIV OF MSL INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4510-00-416-9577
Technical Data | NSN 4510-00-416-9577
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER |
| OUTLET SIZE FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| MANUFACTURERS CODE | 06071 |
| DESIGN CONTROL REFERENCE | M316-176 |
Restrictions/Controls & Freight Information | NSN 4510-00-416-9577
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 572 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4510-00-416-9577
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
