Product Details | WATER MIXING VALVE

4510-00-295-7610 A valve having one discharge connection and separate hot and cold inlet connections in one body. It is designed to mix water to a desired temperature.

Part Alternates: 358277, 363425, 365211, 4510-00-295-7610, 00-295-7610, 4510002957610, 002957610

Plumbing, Heating, and Waste Disposal Equipment | Plumbing Fixtures and Accessories

Supply Group (FSG) NSN Assign. NIIN
45 28 SEP 1973 00-295-7610

Drawings & Photos | NSN 4510-00-295-7610


Cross Reference | NSN 4510-00-295-7610

Part Number Cage Code Manufacturer
358277 06343 WHIRLPOOL CORPORATION DBA MARION DIVISION
363425 06343 WHIRLPOOL CORPORATION DBA MARION DIVISION
363425 18163 EATON CORP CONTROLS DIV
363425 81306 WHIRLPOOL CORPORATION DBA WHIRLPOOL
365211 81306 WHIRLPOOL CORPORATION DBA WHIRLPOOL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4510-00-295-7610

Technical Data | NSN 4510-00-295-7610

Characteristic Specifications

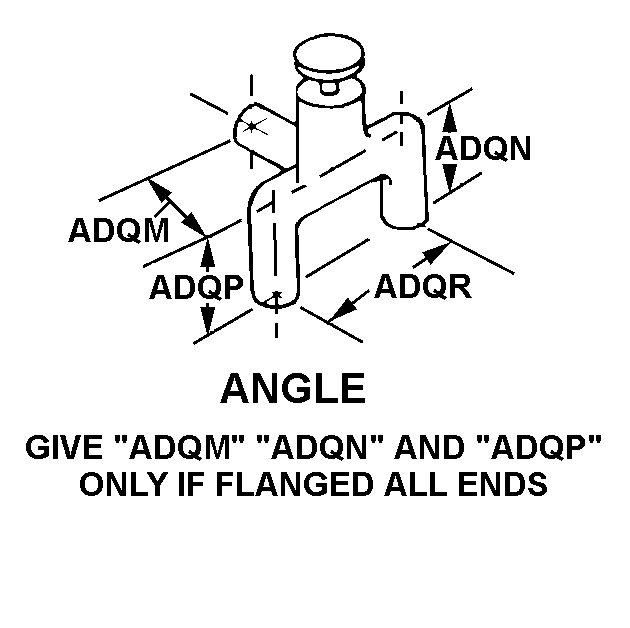

BODY STYLE A28 ANGLE
BODY MATERIAL PLASTIC
END CONNECTION QUANTITY 3
FIRST END CONNECTION TYPE THREADED EXTERNAL HOSE
FIRST END STYLE DESIGNATOR J6 PLAIN
FIRST END OUTSIDE DIAMETER HOSE ACCOMMODATED 0.750 INCHES NOMINAL
FIRST END THREAD DIRECTION RIGHT-HAND
SECOND END RELATIONSHIP WITH FIRST END IDENTICAL
THIRD END RELATIONSHIP WITH PRECEDING ENDS NOT IDENTICAL WITH FIRST OR SECOND END
THIRD END CONNECTION TYPE UNTHREADED EXTERNAL HOSE
THIRD END STYLE DESIGNATOR K3 BEADED
THIRD END OUTSIDE DIAMETER HOSE ACCOMMODATED 0.500 INCHES NOMINAL
MAXIMUM OPERATING PRESSURE NOT RATED
MEDIA FOR WHICH DESIGNED WATER, FRESH
TEMP RATING NOT RATED
VALVE DISCHARGE FLOW RATE NOT RATED
USAGE DESIGN CONCEALED PIPE
SPECIAL FEATURES VALVE IS OPERATED BY SOLENOIDS

Restrictions/Controls & Freight Information | NSN 4510-00-295-7610

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 051080 FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4510-00-295-7610

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
