NSN 4440-00-106-9265 408356ECA, 4083-5-6ECA, 00-106-9265
Product Details | INFRARED DRIER
4440-00-106-9265 A heating device employing infrared lamps or infrared resistance elements for accelerating the drying process of chemical compounds, paints, or inclosures.
Part Alternates: 408356ECA, 4083-5-6ECA, 4440-00-106-9265, 00-106-9265, 4440001069265, 001069265
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Driers, Dehydrators, and Anhydrators
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 19 JUL 1968 | 00-106-9265 | 10223 ( DRIER, INFRARED ) |
Drawings & Photos | NSN 4440-00-106-9265
Cross Reference | NSN 4440-00-106-9265
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4083-5-6ECA | 09327 | RESEARCH INCORPORATED DBA CONTROL SYSTEMS DIV DIV THERMAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4440-00-106-9265
Technical Data | NSN 4440-00-106-9265
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | FIXED |
| HEAT SOURCE QUANTITY | 6 |
| HEAT SOURCE FOR WHICH DESIGNED | LAMP |

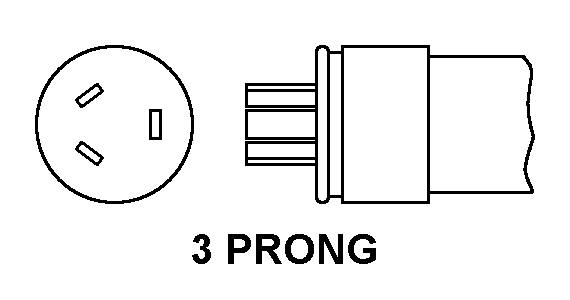

| LAMP BASE STYLE | A28A 3 PRONG |
| HEAT SOURCE | INCLUDED |
| VOLTAGE IN VOLTS | 120.0 |
| WATTAGE RATING IN WATTS | 3000.0 |
| HEAT SOURCE HOLDER TYPE | UNIT |
| QUANTITY | 1 |
| HEAT SOURCE QUANTITY PER HOLDER | 1 |
| SWITCH | NOT INCLUDED |
| WIRED FEATURE | INCLUDED |
| MOUNTING FACILITY | CASTER |
| OVERALL LENGTH | 11.370 INCHES NOMINAL |
| OVERALL WIDTH | 6.000 INCHES NOMINAL |
| OVERALL HEIGHT | 5.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 09327 |
| DESIGN CONTROL REFERENCE | 4083-5-6ECA |
Restrictions/Controls & Freight Information | NSN 4440-00-106-9265
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062600 | OVENS INFRA RED RAY HEATING SUB1 |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
