NSN 4420-01-234-8681 4M318A4, 4M318A4 PC3 , 4M318A4PC3
Product Details | FLUID COOLER CORE ASSEMBLY
4420-01-234-8681 An assembled unit which may consist of tubes, tube sheets, baffles and fins which comprise the basic heat transfer element of a COOLER, FLUID, TRANSMISSION and COOLER, FLUID, INDUSTRIAL. Excludes automotive radiators.20229300045Engine Cooling System Components, Nonaircraft44200036Heat Exchangers and Steam Condensers
Part Alternates: 4M318A4, 4M318A4 PC3 , 4M318A4PC3, 4M318B4, 4420-01-234-8681, 01-234-8681, 4420012348681, 012348681
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Heat Exchangers and Steam Condensers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 21 JUN 1986 | 01-234-8681 | 36982 ( CORE ASSEMBLY, FLUID COOLER ) |
Drawings & Photos | NSN 4420-01-234-8681
Cross Reference | NSN 4420-01-234-8681
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4M318A4 | 51900 | ITT CORPORATION DBA ITT STANDARD |
| 4M318A4 | 6LE50 | FLUID HANDLING, LLC DBA STANDARD XCHANGE |
| 4M318A4 PC3 | 51900 | ITT CORPORATION DBA ITT STANDARD |
| 4M318A4 PC3 | 6LE50 | FLUID HANDLING, LLC DBA STANDARD XCHANGE |
| 4M318B4 | 51900 | ITT CORPORATION DBA ITT STANDARD |
| 4M318B4 | 6LE50 | FLUID HANDLING, LLC DBA STANDARD XCHANGE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4420-01-234-8681
Technical Data | NSN 4420-01-234-8681
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER AND NICKEL ALLOY TUBE SHEET COPPER AND NICKEL ALLOY TUBES |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-15726 MIL SPEC SINGLE MATERIAL RESPONSE TUBE SHEET MIL-T-15005 MIL SPEC SINGLE MATERIAL RESPONSE TUBES |

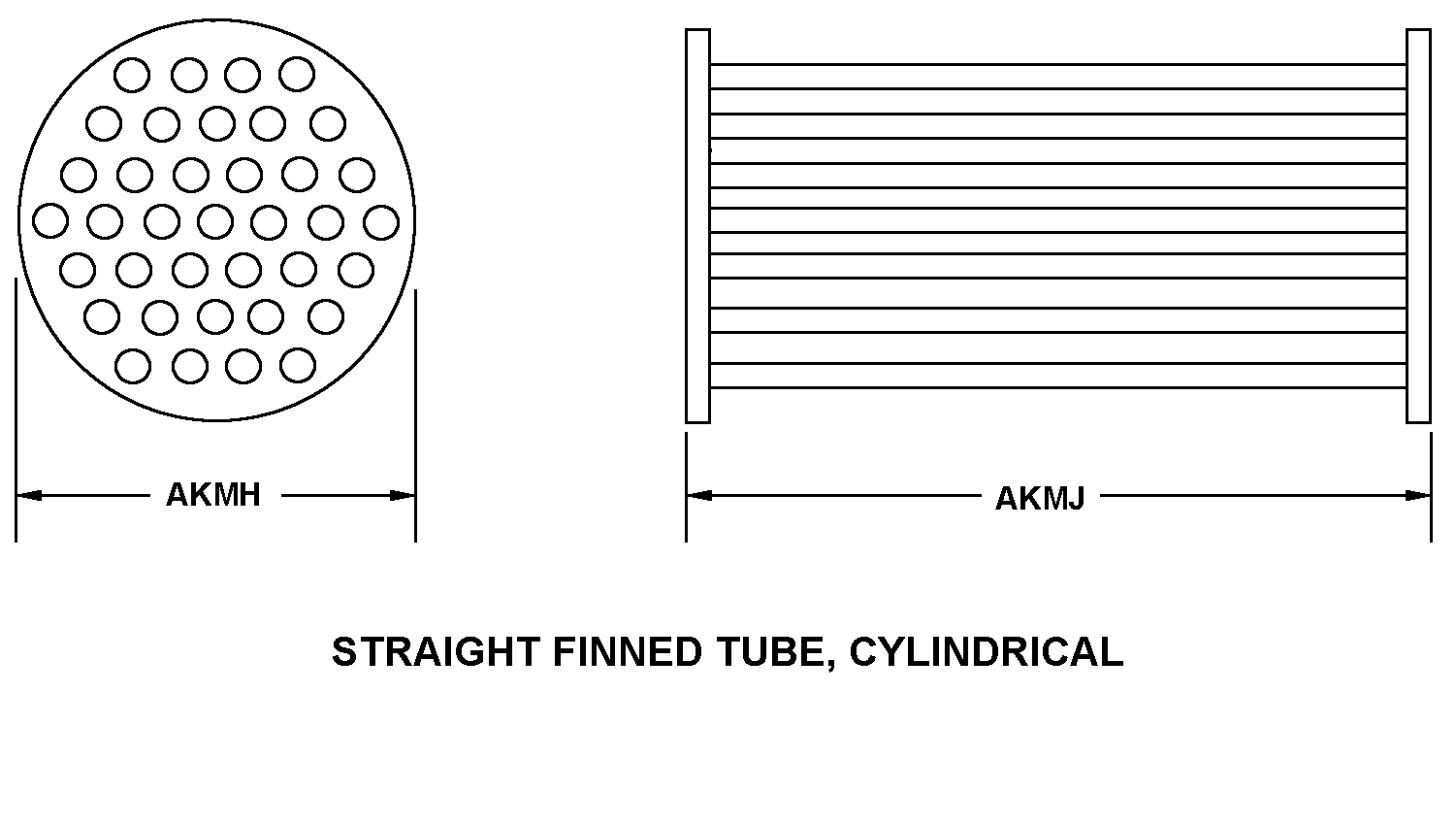

| STYLE DESIGNATOR | B8A STRAIGHT FINNED TUBE, CYLINDRICAL |
| CORE DIAMETER | ANY ACCEPTABLE |
| CORE LENGTH | 17.875 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
| TUBE QUANTITY | 68 |
| TUBING OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| TUBE ATTACHMENT METHOD | EXPANDED BOTH ENDS |
Restrictions/Controls & Freight Information | NSN 4420-01-234-8681
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 122860 | HEAT EXCHANGER/COOLER TUBE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4420-01-234-8681
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
