NSN 4420-01-130-7885 5 126 04 036 002, 512604036002, 01-130-7885
Product Details | INDUSTRIAL FLUID COOLER
4420-01-130-7885 An apparatus designed to lower the temperature of a fluid by bringing it into proximity with another fluid of lower temperature so that heat transfer is effected by conduction through the walls of separating chambers. Excludes air conditioning equipment, refrigeration equipment, and radiators.
Part Alternates: 5 126 04 036 002, 512604036002, 4420-01-130-7885, 01-130-7885, 4420011307885, 011307885
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Heat Exchangers and Steam Condensers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 28 APR 1982 | 01-130-7885 | 04041 ( COOLER, FLUID, INDUSTRIAL ) |
Drawings & Photos | NSN 4420-01-130-7885
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4420-01-130-7885
Technical Data | NSN 4420-01-130-7885
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL SHELL COPPER ALLOY TUBES |

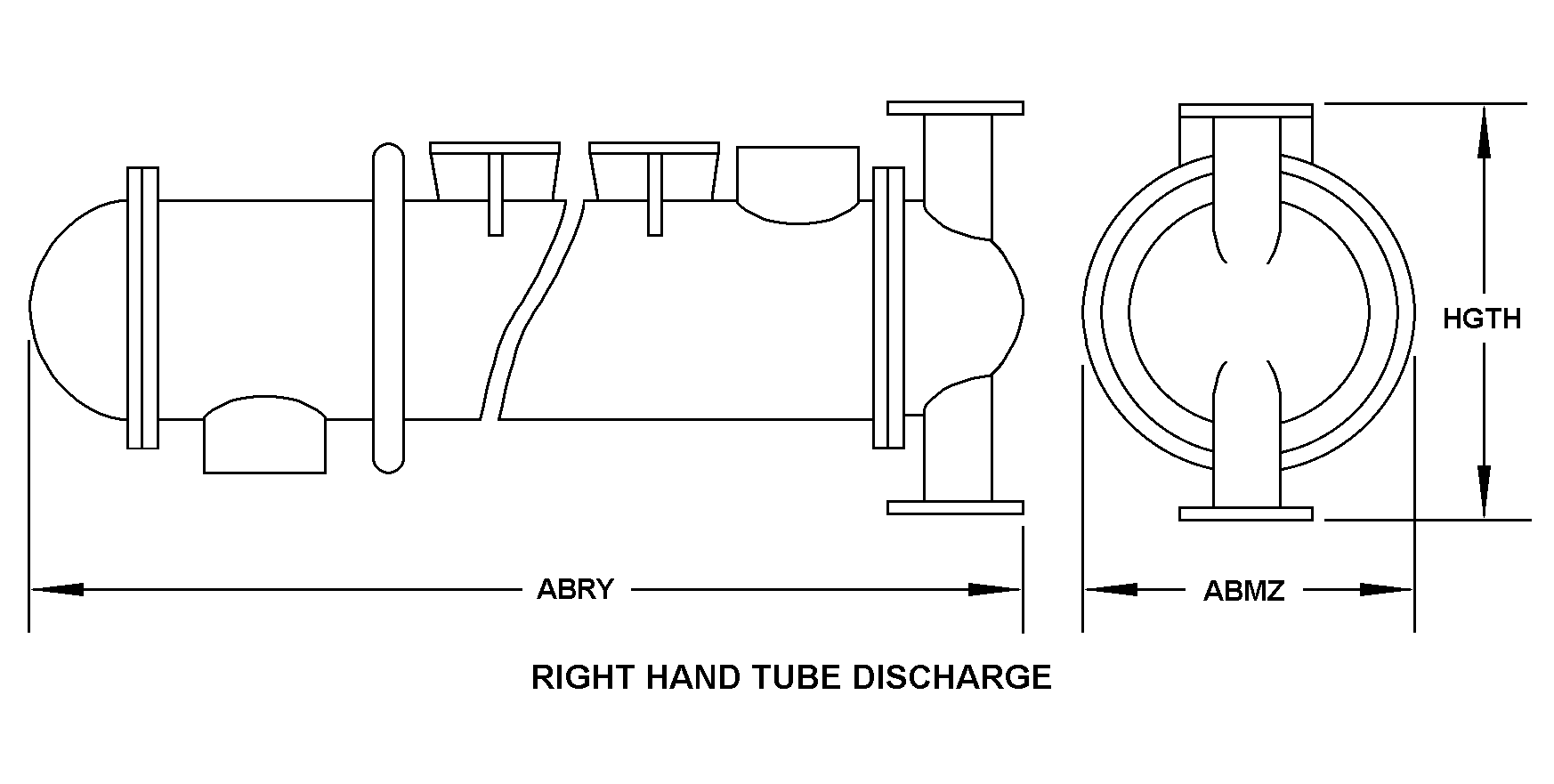

| STYLE DESIGNATOR | A14 RIGHT HAND TUBE DISCHARGE |
| DIAMETER | 7.250 INCHES NOMINAL |
| LENGTH | 43.380 INCHES NOMINAL |
| HEIGHT | 11.375 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
| EFFECTIVE HEAT TRANSFER SURFACE AREA | 8.9 SQUARE FEET |
| TUBE QUANTITY | 32 |
| TUBING OUTSIDE DIAMETER | 0.375 INCHES NOMINAL BOTH INLET AND OUTLET TUBE ENDS |
| TUBE ATTACHMENT METHOD | EXPANDED BOTH ENDS |
| CAPACITY RATING | 900.0 GALLONS PER HOUR |
| III CUBIC MEASURE | 2.070 CUBIC FEET |
| III END ITEM IDENTIFICATION | CONTROLLABLE PITCH PROPELLER SYSTEM ONBOARD 270 FT WMEC CLASS COAST GUARD VESSELS |
| MANUFACTURERS CODE | 51900 |
| DESIGN CONTROL REFERENCE | 5 126 04 036 002 |
Restrictions/Controls & Freight Information | NSN 4420-01-130-7885
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4420-01-130-7885
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | R | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
