NSN 4420-01-119-0105 9182384, 01-119-0105, 011190105
Product Details | FLUID COOLER CORE ASSEMBLY
4420-01-119-0105 An assembled unit which may consist of tubes, tube sheets, baffles and fins which comprise the basic heat transfer element of a COOLER, FLUID, TRANSMISSION and COOLER, FLUID, INDUSTRIAL. Excludes automotive radiators.20229300045Engine Cooling System Components, Nonaircraft44200036Heat Exchangers and Steam Condensers
Part Alternates: 9182384, 4420-01-119-0105, 01-119-0105, 4420011190105, 011190105
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Heat Exchangers and Steam Condensers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 16 SEP 1981 | 01-119-0105 | 36982 ( CORE ASSEMBLY, FLUID COOLER ) |
Drawings & Photos | NSN 4420-01-119-0105
Cross Reference | NSN 4420-01-119-0105
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9182384 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4420-01-119-0105
Technical Data | NSN 4420-01-119-0105
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

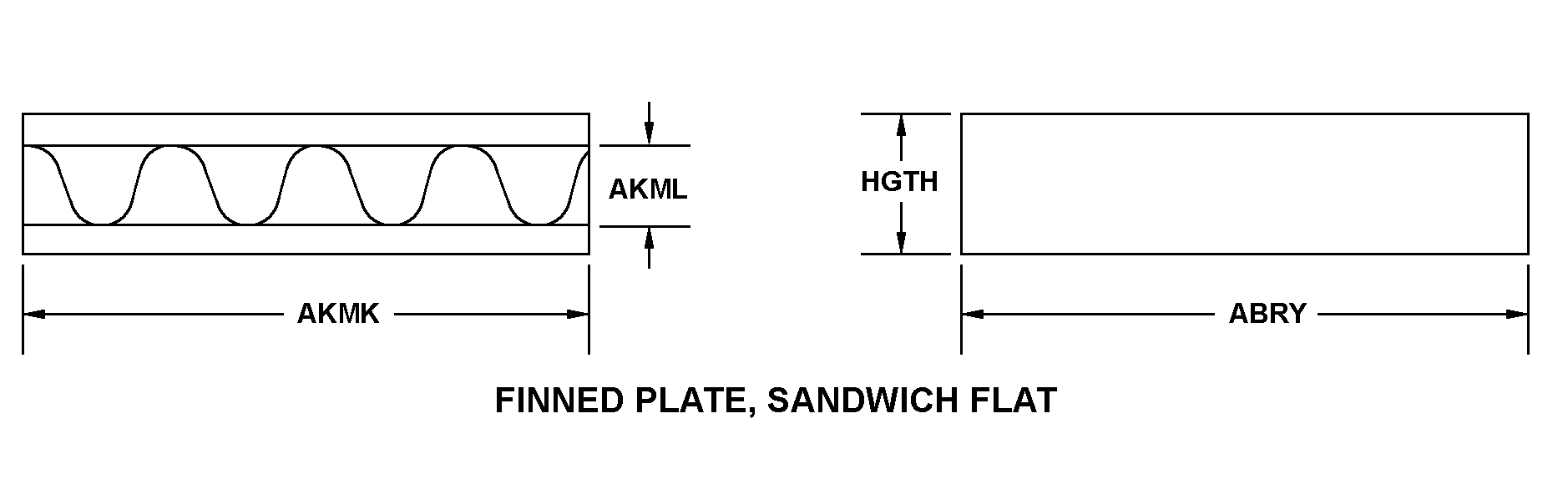

| STYLE DESIGNATOR | B15 FINNED PLATE, SANDWICH, FLAT |
| LENGTH | 18.562 INCHES NOMINAL |
| HEIGHT | 8.500 INCHES NOMINAL |
| CORE WIDTH | 18.562 INCHES NOMINAL |
| CORE THICKNESS | 0.215 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
Restrictions/Controls & Freight Information | NSN 4420-01-119-0105
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
