NSN 4420-01-058-4397 D1296, 01-058-4397, 010584397
Product Details | FLUID COOLER CORE ASSEMBLY
4420-01-058-4397 An assembled unit which may consist of tubes, tube sheets, baffles and fins which comprise the basic heat transfer element of a COOLER, FLUID, TRANSMISSION and COOLER, FLUID, INDUSTRIAL. Excludes automotive radiators.20229300045Engine Cooling System Components, Nonaircraft44200036Heat Exchangers and Steam Condensers
Part Alternates: D1296, 4420-01-058-4397, 01-058-4397, 4420010584397, 010584397
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Heat Exchangers and Steam Condensers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 27 MAR 1978 | 01-058-4397 | 36982 ( CORE ASSEMBLY, FLUID COOLER ) |
Drawings & Photos | NSN 4420-01-058-4397
Cross Reference | NSN 4420-01-058-4397
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D1296 | 98396 | R. W. FERNSTRUM & COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4420-01-058-4397
Technical Data | NSN 4420-01-058-4397
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |

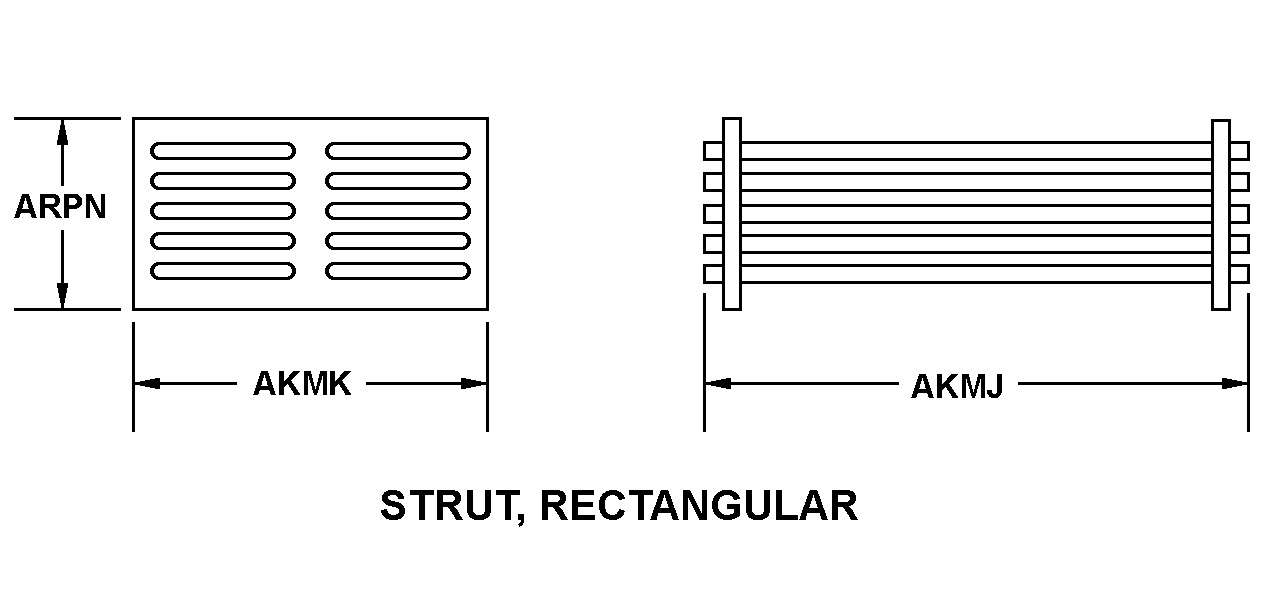

| STYLE DESIGNATOR | B1 STRUT, RECTANGULAR |
| CORE LENGTH | 102.750 INCHES NOMINAL |
| CORE WIDTH | 10.812 INCHES NOMINAL |
| CORE THICKNESS | 7.750 INCHES NOMINAL |
| CORE HEIGHT | 2.750 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
| TUBE QUANTITY | 8 |
| TUBE ATTACHMENT METHOD | BRAZED BOTH ENDS |
| III END ITEM IDENTIFICATION | MAIN PROPULSION DIESEL ONBOARD 65 FT WYTL CG VESSELS |
| MANUFACTURERS CODE | 98396 |
| DESIGN CONTROL REFERENCE | D1296 |
Restrictions/Controls & Freight Information | NSN 4420-01-058-4397
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4420-01-058-4397
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
