NSN 4420-00-600-5437 MMC40E2, S9700C3124822, S9700-C-3124822
Product Details | FLUID COOLER CORE ASSEMBLY
4420-00-600-5437 An assembled unit which may consist of tubes, tube sheets, baffles and fins which comprise the basic heat transfer element of a COOLER, FLUID, TRANSMISSION and COOLER, FLUID, INDUSTRIAL. Excludes automotive radiators.20229300045Engine Cooling System Components, Nonaircraft44200036Heat Exchangers and Steam Condensers
Part Alternates: MMC40E2, S9700C3124822, S9700-C-3124822, D884N, D884N2, 2094510945E1, 209-4510945E1, 4420-00-600-5437, 00-600-5437, 4420006005437, 006005437
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Heat Exchangers and Steam Condensers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 01 JAN 1963 | 00-600-5437 | 36982 ( CORE ASSEMBLY, FLUID COOLER ) |
Drawings & Photos | NSN 4420-00-600-5437
Demand History | NSN 4420-00-600-5437
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 209-4510945E1 | 2024-06-154 | 1 | DIBBS |
| D884N2 | 2024-06-154 | 1 | DIBBS |
| MMC40E2 | 2024-06-154 | 1 | DIBBS |
| 209-4510945E1 | 2023-10-290 | 4 | DIBBS |
| D884N2 | 2023-10-290 | 4 | DIBBS |
| MMC40E2 | 2023-10-290 | 4 | DIBBS |
| 209-4510945E1 | 2023-08-221 | 5 | DIBBS |
| D884N2 | 2023-08-221 | 5 | DIBBS |
| MMC40E2 | 2023-08-221 | 5 | DIBBS |
| 209-4510945E1 | 2021-10-279 | 4 | DIBBS |
| D884N2 | 2021-10-279 | 4 | DIBBS |
| MMC40E2 | 2021-10-279 | 4 | DIBBS |
| 209-4510945E1 | 2019-06-153 | 4 | DIBBS |
| D884N2 | 2019-06-153 | 4 | DIBBS |
| MMC40E2 | 2019-06-153 | 4 | DIBBS |
| 209-4510945E1 | 2019-03-62 | 1 | DIBBS |
| D884N2 | 2019-03-62 | 1 | DIBBS |
| MMC40E2 | 2019-03-62 | 1 | DIBBS |
| 209-4510945E1 | 2019-02-59 | 2 | DIBBS |
| D884N2 | 2019-02-59 | 2 | DIBBS |
| MMC40E2 | 2019-02-59 | 2 | DIBBS |
| 4420-00-600-5437 | 2017-08-222 | 1 | United States |
Cross Reference | NSN 4420-00-600-5437
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4420-00-600-5437
Related Products | NSN 4420-00-600-5437
Technical Data | NSN 4420-00-600-5437
| Characteristic | Specifications |
|---|---|

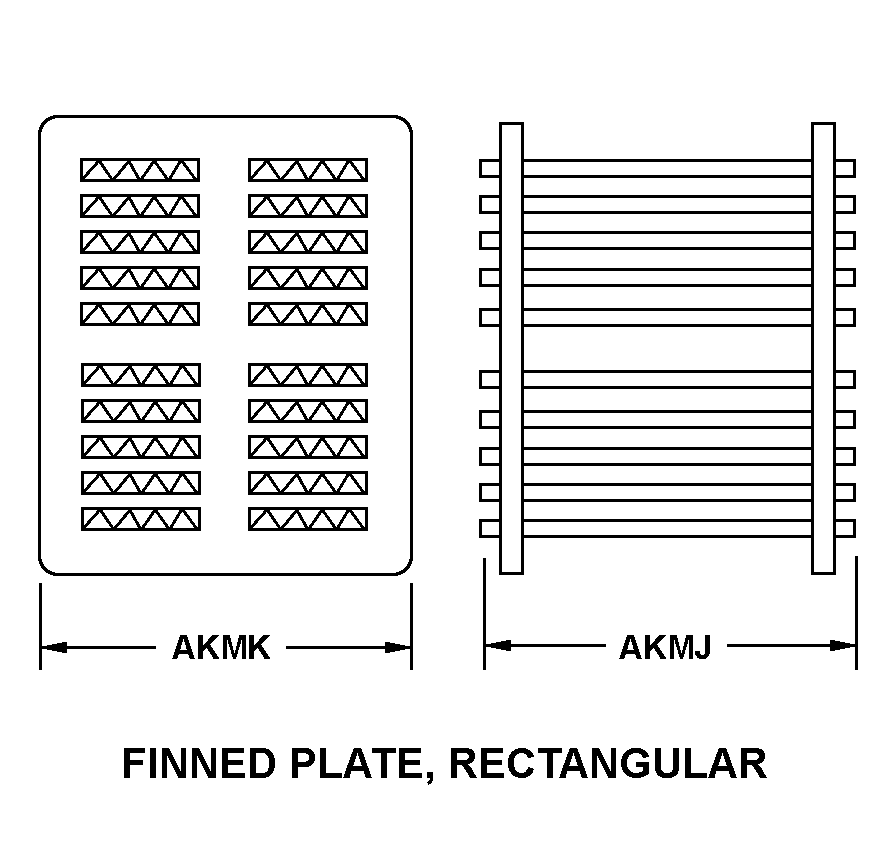

| STYLE DESIGNATOR | B6 FINNED PLATE, RECTANGULAR |
| CORE LENGTH | 88.000 INCHES NOMINAL |
| CORE WIDTH | 7.062 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
| III END ITEM IDENTIFICATION | 19059356057,LANDING CRAFT,DESIGN LCM8 |
Restrictions/Controls & Freight Information | NSN 4420-00-600-5437
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 122860 | HEAT EXCHANGER/COOLER TUBE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4420-00-600-5437
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
