NSN 4420-00-491-8809 MILH82000, 00-491-8809, 004918809
Product Details | INDUSTRIAL FLUID HEATER
4420-00-491-8809 An apparatus designed to raise the temperature of a fluid by bringing it into proximity with another fluid of higher temperature so that heat transfer is effected by direct contact or by passing those fluids through pipe(s), tube(s), or coils which are submerged in a tank of hot water or steam which is supplied from an outside source. The fluid is never stored in this tank. Excludes air conditioning, electric fluid heaters, and refrigeration equipment.
Part Alternates: MILH82000, 4420-00-491-8809, 00-491-8809, 4420004918809, 004918809
Furnace, Steam Plant, and Drying Equipment; and Nuclear Reactors | Heat Exchangers and Steam Condensers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | 22 MAR 1972 | 00-491-8809 | 04042 ( HEATER, FLUID, INDUSTRIAL ) |
Drawings & Photos | NSN 4420-00-491-8809
Cross Reference | NSN 4420-00-491-8809
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILH82000 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4420-00-491-8809
Technical Data | NSN 4420-00-491-8809
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

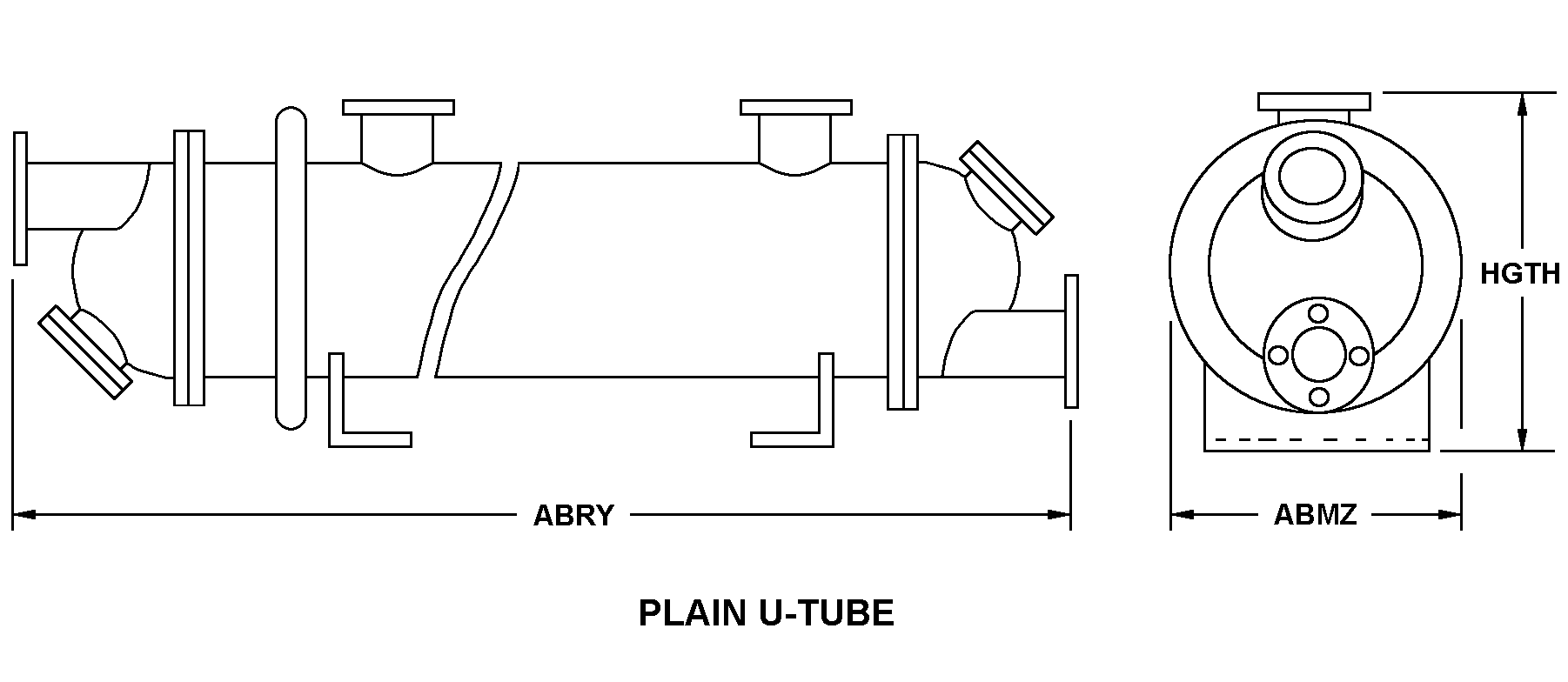

| STYLE DESIGNATOR | A15 PLAIN U-TUBE |
| DIAMETER | 12.000 INCHES MAXIMUM |
| LENGTH | 192.000 INCHES MAXIMUM |
| HEIGHT | 48.000 INCHES MAXIMUM |
| HEAT TRANSFER METHOD | INDIRECT |
| TUBE ATTACHMENT METHOD | WELDED BOTH ENDS |
| RATED CAPACITY AT MAXIMUM WORKING PRESSURE | 21000.0 GALLONS PER HOUR |
| CONNECTION TYPE | FLANGED PIPE HEATING FLUID INLET FLANGED PIPE HEATING FLUID OUTLET |
| CONNECTION NOMINAL DIAMETER | 3.000 INCHES HEATING FLUID INLET 3.000 INCHES HEATING FLUID OUTLET |
| SPECIAL FEATURES | OIL TYPE DF 1 FED SPEC VV-800,HEATER AND EXCHANGER ON SEPARATE SKIDS WITH COMPONENTS AND ACCESSORIES,MIN OUTPUT OF 5,000,000 BTU/HR,FITTINGS TO BE IN ACCORDANCE W/ANSI B31.1.0 FOR 150 PSI 450 DEG F SERVICE,EXTERIOR SURFACE COVERED W/STD THK FIBERGLASS INSULATION,HOSES FURNISHED,HEAT EXCHANGER FURNISHED |
| NONDEFINITIVE SPEC/STD DATA | 5 SIZE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY SPECIAL FEATURES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILH82000 |
Restrictions/Controls & Freight Information | NSN 4420-00-491-8809
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | M | 85 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | JS | Naval ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4420-00-491-8809
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 2C | Major construction and civil engineering equipment Civil Engineer Support Office 2D |
| Issue Repair, or Requisition | AH | Submit/refer requisitions to CESO (Civil Engineer Support Office) CBC Port Hueneme. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | R41 | Naval Facilities Expenditionary Logistics Center Code N42 Bldg 1000 23rd Ave Port Hueneme, CA 93043 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | J | 2C Cog CESE Material (major end item) |
| Acquisition Advice Codes | A | SERVICE/AGENCY-REGULATED (Service/Agency use only.) # Issue, transfer or shipment is controlled by authorities above the ICP level to assure proper and equitable distribution. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
