NSN 4330-01-504-9506 HF0634300, HF6343, P0390937U7B

Product Details | FLUID FILTER ELEMENT

4330-01-504-9506 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: HF0634300, HF6343, P0390937U7B, P039093-7U7B, 6743959, 7437000195, 7-437-000195, KS10, KS7, KZ10, 1004381P7, 1004381-P7, 4330-01-504-9506, 01-504-9506, 4330015049506, 015049506

Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
43	14 FEB 2003	01-504-9506	32624 ( FILTER ELEMENT, FLUID )

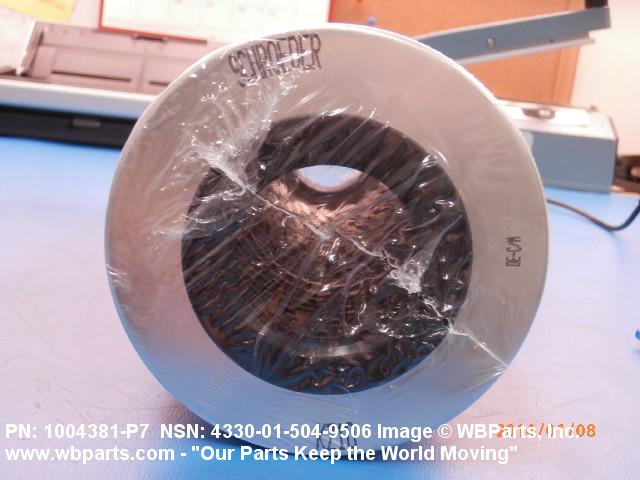

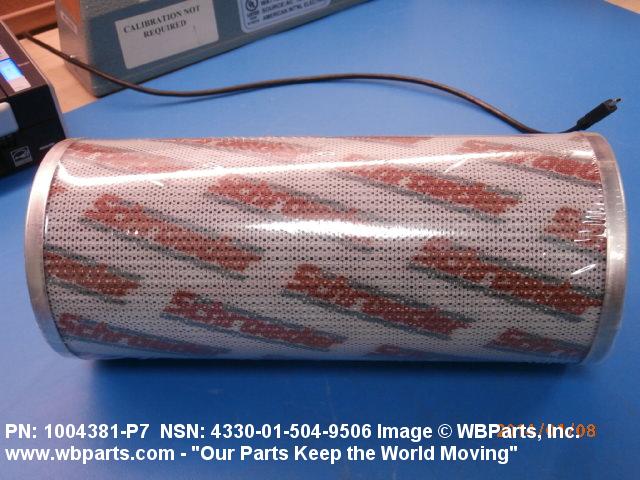

Drawings & Photos | NSN 4330-01-504-9506

Part Number	Request Date	QTY	Origin
1004381-P7	2023-05-138	500	DIBBS
7-437-000195	2023-05-138	500	DIBBS
HF0634300	2023-05-138	500	DIBBS
KS7	2023-05-138	500	DIBBS
KZ10	2023-05-138	500	DIBBS
P039093-7U7B	2023-05-138	500	DIBBS
1004381-P7	2023-01-12	231	DIBBS
7-437-000195	2023-01-12	231	DIBBS
HF0634300	2023-01-12	231	DIBBS
KS7	2023-01-12	231	DIBBS
KZ10	2023-01-12	231	DIBBS
P039093-7U7B	2023-01-12	231	DIBBS
1004381-P7	2022-11-306	1058	DIBBS
7-437-000195	2022-11-306	1058	DIBBS
HF0634300	2022-11-306	1058	DIBBS
KS7	2022-11-306	1058	DIBBS
KZ10	2022-11-306	1058	DIBBS
P039093-7U7B	2022-11-306	1058	DIBBS
1004381-P7	2022-10-291	1058	DIBBS
7-437-000195	2022-10-291	1058	DIBBS
HF0634300	2022-10-291	1058	DIBBS
KS7	2022-10-291	1058	DIBBS
KZ10	2022-10-291	1058	DIBBS
P039093-7U7B	2022-10-291	1058	DIBBS
1004381-P7	2021-11-305	1117	DIBBS
7-437-000195	2021-11-305	1117	DIBBS
HF0634300	2021-11-305	1117	DIBBS
KS7	2021-11-305	1117	DIBBS
KZ10	2021-11-305	1117	DIBBS
P039093-7U7B	2021-11-305	1117	DIBBS
1004381-P7	2021-10-290	1117	DIBBS
7-437-000195	2021-10-290	1117	DIBBS
HF0634300	2021-10-290	1117	DIBBS
KS7	2021-10-290	1117	DIBBS
KZ10	2021-10-290	1117	DIBBS
P039093-7U7B	2021-10-290	1117	DIBBS
4330-01-504-9506	2021-09-270	10	US
1004381-P7	2020-10-303	262	DIBBS
7-437-000195	2020-10-303	262	DIBBS
HF0634300	2020-10-303	262	DIBBS
KS7	2020-10-303	262	DIBBS
KZ10	2020-10-303	262	DIBBS
P039093-7U7B	2020-10-303	262	DIBBS
1004381-P7	2020-01-16	404	DIBBS
7-437-000195	2020-01-16	404	DIBBS
HF0634300	2020-01-16	404	DIBBS
KS7	2020-01-16	404	DIBBS
KZ10	2020-01-16	404	DIBBS
P039093-7U7B	2020-01-16	404	DIBBS
1004381-P7	2019-03-87	339	DIBBS
7-437-000195	2019-03-87	339	DIBBS
HF0634300	2019-03-87	339	DIBBS
KS7	2019-03-87	339	DIBBS
KZ10	2019-03-87	339	DIBBS
P039093-7U7B	2019-03-87	339	DIBBS
4330-01-504-9506	2018-01-22	1	DIBBS-RFPs
4330-01-504-9506	2016-07-213	796	DIBBS
4330-01-504-9506	2016-04-115	429	DIBBS
4330-01-504-9506	2015-01-01	448	DIBBS
4330-01-504-9506	2014-08-233	346	DIBBS
4330-01-504-9506	2014-03-64	364	DIBBS
015049506	2013-11-326	24	United States
4330-01-504-9506	2013-10-304	221	DIBBS
4330-01-504-9506	2013-10-281	244	DIBBS
4330-01-504-9506	2013-02-50	255	DIBBS
4330-01-504-9506	2013-02-48	255	DIBBS
4330-01-504-9506	2012-12-352	0	DIBBS
4330-01-504-9506	2011-11-307	272	DIBBS
4330-01-504-9506	2011-10-279	180	DIBBS
4330-01-504-9506	2010-10-285	281	DIBBS
4330-01-504-9506	2010-05-144	182	DIBBS
4330-01-504-9506	2010-03-82	164	DIBBS
4330-01-504-9506	2008-12-365	277	DIBBS
4330-01-504-9506	2008-09-248	221	DIBBS
4330-01-504-9506	2008-06-154	452	DIBBS
4330-01-504-9506	2008-04-112	175	DIBBS
4330-01-504-9506	2008-01-31	173	DIBBS
4330-01-504-9506	2007-05-143	122	DIBBS
4330-01-504-9506	2007-01-26	90	DIBBS

Cross Reference | NSN 4330-01-504-9506

Part Number	Cage Code	Manufacturer
1004381-P7	00365	TLD ACE CORPORATION
6743959	53711	NAVAL SEA SYSTEMS COMMAND
7-437-000195	12361	GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP
HF0634300	33457	CUMMINS FILTRATION INC. DBA FLEETGUARD
HF6343	33457	CUMMINS FILTRATION INC. DBA FLEETGUARD
KS10	08832	SCHROEDER INDUSTRIES LLC
KS7	08832	SCHROEDER INDUSTRIES LLC
KZ10	08832	SCHROEDER INDUSTRIES LLC
P039093-7U7B	9N879	FLUITEK CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4330-01-504-9506

Compare

Related Products | NSN 4330-01-504-9506

4330-01-504-9823, 4330-01-504-9829, 4330-01-505-1129, 4330-01-505-2135, 4330-01-505-2313

Technical Data | NSN 4330-01-504-9506

Characteristic	Specifications
STYLE DESIGNATOR	A12 CYLINDRICAL W/CONTAINER
BODY DIAMETER	4.000 INCHES NOMINAL
BODY INSIDE DIAMETER	1.620 INCHES NOMINAL
BODY OVERALL LENGTH	9.000 INCHES NOMINAL
MATERIAL	GLASS FIBER FILTERING MEDIUM
FILTERING MEDIA DESIGN	WOVEN 1ST FILTERING MEDIA RESPONSE LAYERED 2ND FILTERING MEDIA RESPONSE LAYERED 3RD FILTERING MEDIA RESPONSE
DESIGN TYPE	NONREUSABLE
FILTRATION RATING IN MICRONS	10.0 ABSOLUTE
FLOW DIRECTION	OUTSIDE IN
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
TEMP RATING	-20.0 DEG FAHRENHEIT MINIMUM AND 225.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE	NOT RATED
DIFFERENTIAL PRESSURE	100.0 POUNDS PER SQUARE INCH
SPECIAL FEATURES	FILTER CONTAINS A CRUSH-PROTECTIVE CENTER TUBE, FILTERING DESIGN CONSIST OF 7 LAYERS, 2 LAYERS EPOXY COATED STEEL FABRIC FOR MAXIMUM SUPPORT, 2 LAYERS POLYPROPYLENE SCRIM FILTERS AND PROTECTS MEDIA AND ADDS FINAL PASS FILTRATION, 2 LAYERS OF SYNTHETIC GLASS FOR ULTRA FINE FILTRATION, AND LAYER OF Z MEDIA PROVIDES MAXIMUM DIRT-HOLDING CAPACITY WITH MINIMUM PRESSURE DROP
III END ITEM IDENTIFICATION	KF50 HIGH PRESSURE FILTER
