Product Details | FLUID FILTER

4330-01-384-0743 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.21516500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving41300045Refrigeration and Air Conditioning Components43300057Centrifugals, Separators, and Pressure and Vacuum Filters4930000063500059Miscellaneous Alarm, Signal, and Security Detection Systems65150057Medical and Surgical Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies66300029Chemical Analysis Instruments

Part Alternates: 842H-16 APA-A 20, 842H-16 APA-A 20SQ SYSTEM, 842H16APAA20, 842H16APAA20SQSYSTEM, 4330-01-384-0743, 01-384-0743, 4330013840743, 013840743

Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters

Supply Group (FSG) NSN Assign. NIIN
43 08 DEC 1993 01-384-0743

Drawings & Photos | NSN 4330-01-384-0743


Cross Reference | NSN 4330-01-384-0743

Part Number Cage Code Manufacturer
842H-16 APA-A 20 53964 KAYDON CUSTOM FILTRATION CORPORATION
842H-16 APA-A 20SQ SYSTEM 53964 KAYDON CUSTOM FILTRATION CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4330-01-384-0743

Technical Data | NSN 4330-01-384-0743

Characteristic Specifications

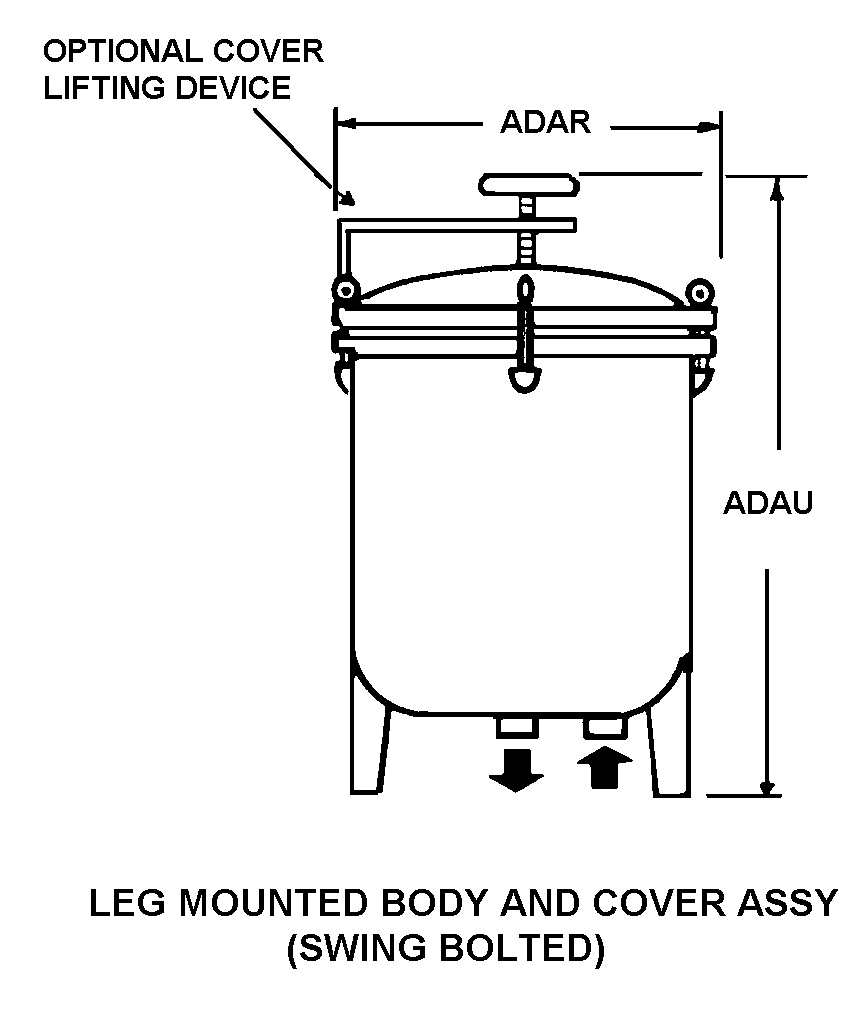

STYLE DESIGNATOR C53 LEG MOUNTED BODY AND COVER ASSY
BODY OUTSIDE DIAMETER 25.250 INCHES NOMINAL
BODY HEIGHT 83.250 INCHES NOMINAL
SURFACE TREATMENT LACQUER BODY
FILTERING MEDIA DESIGN POROUS SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE REUSABLE
FILTERING ELEMENT QUANTITY 24
FILTRATION RATING IN MICRONS NOT RATED
MEDIA FOR WHICH DESIGNED FUEL/OIL, HYDROCARBON
MAXIMUM OPERATING PRESSURE 130.0 POUNDS PER SQUARE INCH
TEMP RATING 225.0 DEG FAHRENHEIT NOMINAL
MOUNTING TYPE BRACKET BOTTOM SIDE
FILTERING SYSTEM FOR WHICH DESIGNED FULL FLOW
FEATURES PROVIDED AIR BLEED VALVE AND DIFFERENTIAL PRESSURE RELIEF VALVE AND DRAIN COCK
SPECIAL FEATURES DIESEL FUEL CONDITIONING SYSTEM WITH 16EA. P/N CI35-20-02-5 COALESCER AND 8EA. P/N D220066 SEPARATOR ELEMNETS AND CANNISTERS; CONNECTIONS: INLET 4.0IN.FEMALE QUICK DISCONNECT COUPLER AND ADAPTER, BRONZE 150LBS., OUTLET 4.0IN. MALE QUICK DISCONNECT; OTHER FEATURES INCLUDE AUTOMATIC WATER DRAIN CONTROL VALVE; AUTOMATIC AIR RELEASE WITH ISOLATION VALVE; FLOAT CONTROL VALVE; FUEL DISCHARGE VALVE; SKID-MOUNTED: 4.0IN. STEEL CHANNEL, 4.50FT.L X 3.00FT.W, W/FORKLIFT OPENINGS
III SUPPLEMENTARY FEATURES 150.0GPM DIESEL FUEL

Restrictions/Controls & Freight Information | NSN 4330-01-384-0743

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 069100 FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 593 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4330-01-384-0743

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
