Product Details | FLUID FILTER

4330-01-373-7094 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.21516500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving41300045Refrigeration and Air Conditioning Components43300057Centrifugals, Separators, and Pressure and Vacuum Filters4930000063500059Miscellaneous Alarm, Signal, and Security Detection Systems65150057Medical and Surgical Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies66300029Chemical Analysis Instruments

Part Alternates: HMK045379, HMK04-5379, 4330-01-373-7094, 01-373-7094, 4330013737094, 013737094

Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters

Supply Group (FSG) NSN Assign. NIIN
43 09 APR 1993 01-373-7094

Drawings & Photos | NSN 4330-01-373-7094


Cross Reference | NSN 4330-01-373-7094

Part Number Cage Code Manufacturer
HMK04-5379 18265 DONALDSON COMPANY, INC. DBA TORIT PRODUCTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4330-01-373-7094

Technical Data | NSN 4330-01-373-7094

Characteristic Specifications

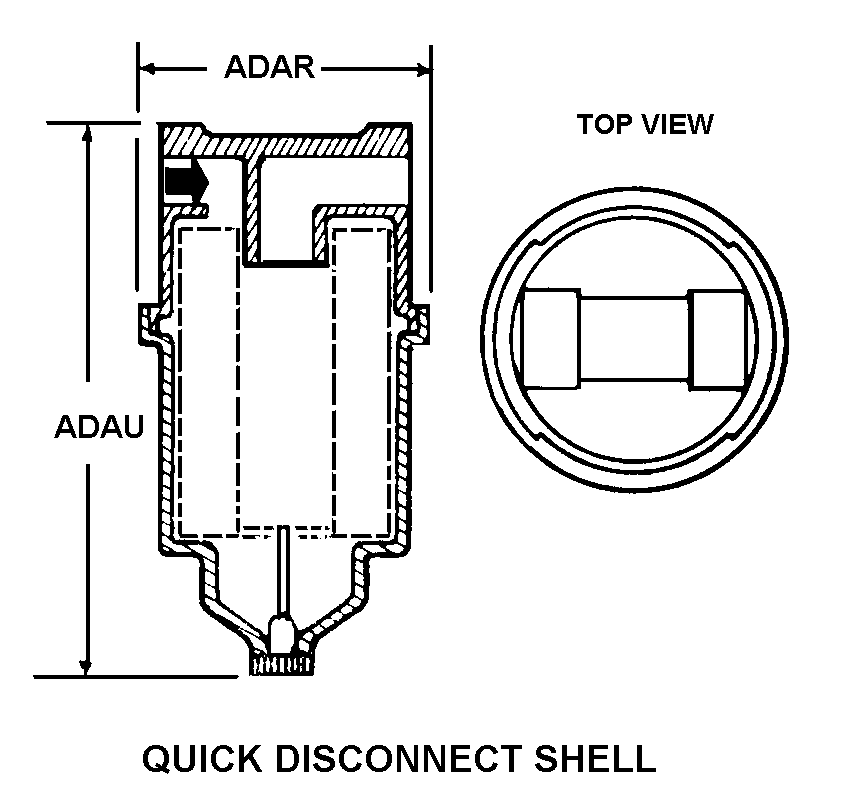

STYLE DESIGNATOR C43 QUICK-DISCONNECT SHELL
DESIGN TYPE REUSABLE
MEDIA FOR WHICH DESIGNED FUEL/OIL, HYDROCARBON
MAXIMUM OPERATING PRESSURE 1000.0 POUNDS PER SQUARE INCH
FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION IDENTICAL TO FIRST INTAKE CONNECTION
MOUNTING TYPE INLET CONNECTION AND OUTLET CONNECTION HEAD SIDE
FEATURES PROVIDED DIFFERENTIAL PRESSURE INDICATOR
SPECIAL FEATURES SPIN ON CANISTER W/ALUMINUM HEAD ASSY

Restrictions/Controls & Freight Information | NSN 4330-01-373-7094

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 069100 FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 593 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4330-01-373-7094

Category Code Description
Cognizance Codes3BNavy-owned stocks of field level repairable DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
ReparabilityDField Level Reparables
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
