NSN 4330-01-289-2419 E4336, E-4336, E-4336 2063S-6
Product Details | FLUID FILTER
4330-01-289-2419 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.21516500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving41300045Refrigeration and Air Conditioning Components43300057Centrifugals, Separators, and Pressure and Vacuum Filters4930000063500059Miscellaneous Alarm, Signal, and Security Detection Systems65150057Medical and Surgical Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies66300029Chemical Analysis Instruments
Part Alternates: E4336, E-4336, E-4336 2063S-6, E43362063S6, 2063665, 2063-6-6-5, 2063S6, 2063S-6, 2063S665, 2063S-6-6-5, 535657A1, 4330-01-289-2419, 01-289-2419, 4330012892419, 012892419
Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 18 NOV 1988 | 01-289-2419 | 32622 ( FILTER, FLUID ) |

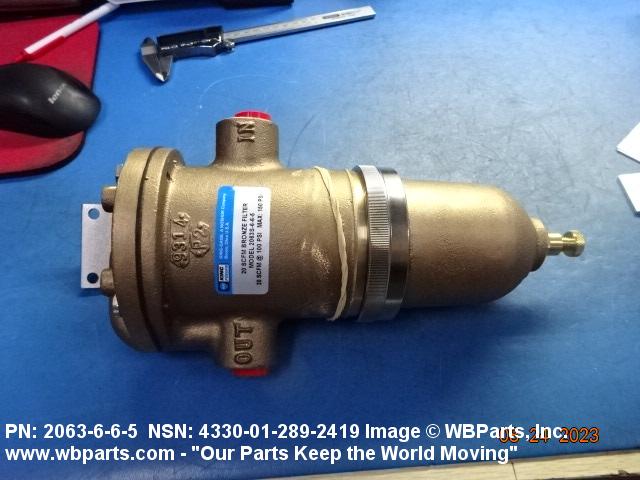

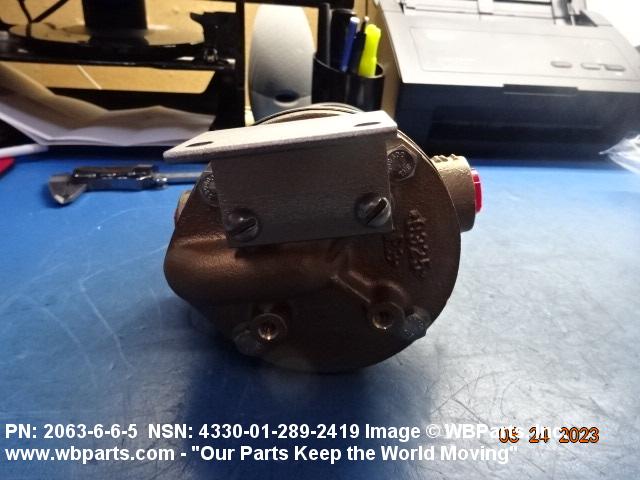

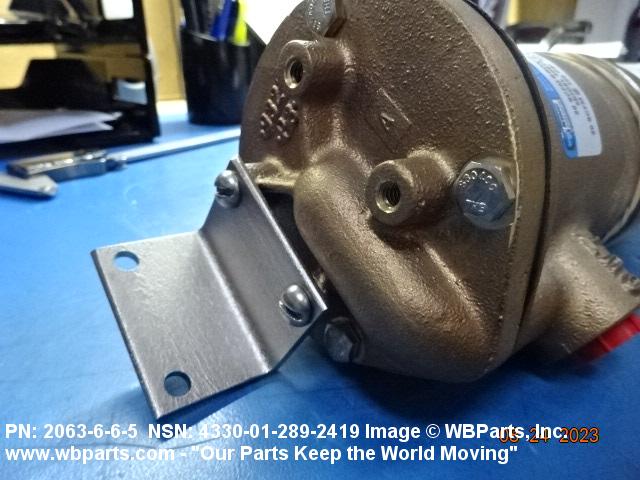

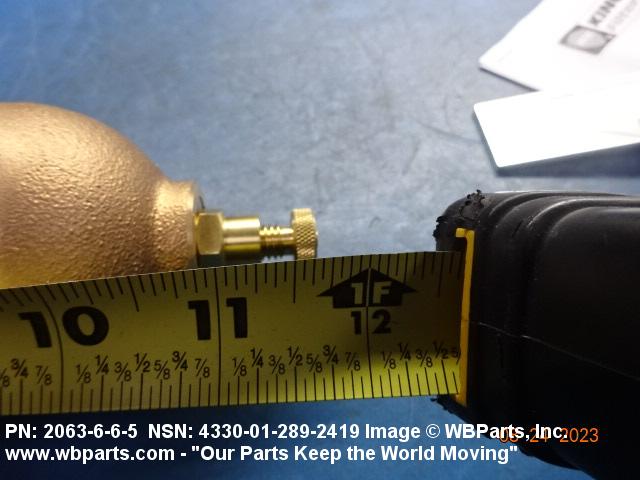

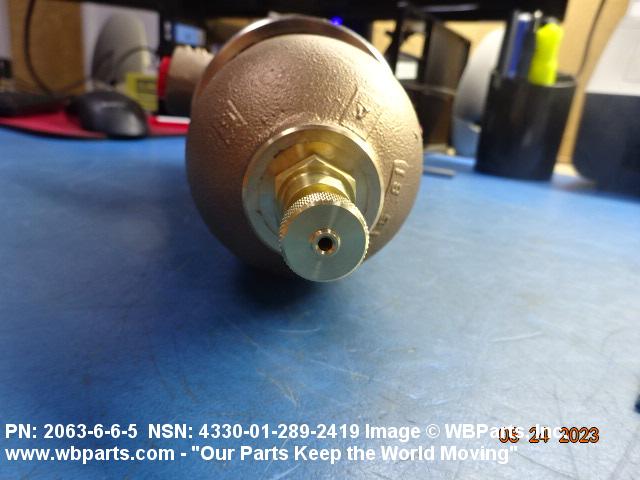

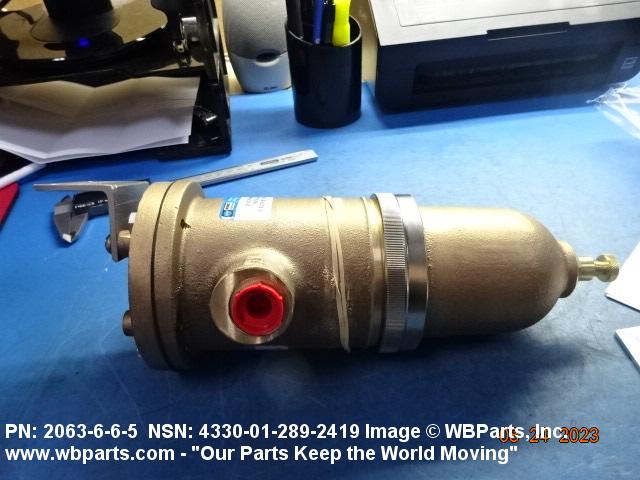

Drawings & Photos | NSN 4330-01-289-2419
Demand History | NSN 4330-01-289-2419
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2063S-6-6-5 | 2024-09-12 | 43 | DIBBS |
| 2063S-6-6-5 | 2024-07-05 | 17 | DIBBS |
| 2063S665 | 2024-06-26 | 12 | United States |
| 2063S-6-6-5 | 2024-06-24 | 17 | DIBBS |
| 2063S-6-6-5 | 2023-08-24 | 16 | DIBBS |
| 4330-01-289-2419 | 2023-08-03 | 2 | United States |
| 4330-01-289-2419 | 2023-08-02 | 2 | United States |
| 4330-01-289-2419 | 2023-03-20 | 4 | United States |
| 2063S-6-6-5 | 2023-01-12 | 14 | DIBBS |
| 2063S-6-6-5 | 2022-07-21 | 13 | DIBBS |
| 4330-01-289-2419 | 2018-10-11 | 17 | DIBBS |
| 4330-01-289-2419 | 2018-05-10 | 15 | DIBBS |
| 4330-01-289-2419 | 2018-02-15 | 4 | DIBBS |
| 4330-01-289-2419 | 2018-01-07 | 8 | DIBBS |
| 4330-01-289-2419 | 2017-09-28 | 9 | DIBBS |
| 4330-01-289-2419 | 2017-06-18 | 7 | DIBBS |
| 4330-01-289-2419 | 2014-07-21 | 4 | DIBBS |
| 4330-01-289-2419 | 2014-07-02 | 6 | DIBBS |
| 4330-01-289-2419 | 2013-04-26 | 4 | US |
| 4330-01-289-2419 | 2013-03-14 | 4 | DIBBS |
| 2063S665 | 2012-07-17 | 21 | US |
| 4330-01-289-2419 | 2012-07-11 | 4 | US |
| 4330-01-289-2419 | 2012-05-16 | 4 | United States |
| 4330-01-289-2419 | 2012-04-12 | 16 | United States |
| 4330-01-289-2419 | 2012-04-09 | 16 | United States |
| 4330-01-289-2419 | 2012-03-02 | 6 | DIBBS |
| 4330-01-289-2419 | 2012-02-09 | 7 | DIBBS |
| 4330-01-289-2419 | 2011-10-03 | 8 | DIBBS |
| 4330-01-289-2419 | 2011-08-15 | 0 | DIBBS |
| 4330-01-289-2419 | 2011-02-17 | 19 | DIBBS |
| 4330-01-289-2419 | 2009-10-27 | 16 | DIBBS |
| 4330-01-289-2419 | 2007-07-20 | 11 | DIBBS |
| 4330-01-289-2419 | 2007-06-24 | 34 | DIBBS |
Cross Reference | NSN 4330-01-289-2419
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2063-6-6-5 | 33667 | KING ENGINEERING CORPORATION DBA KING-GAGE SYSTEMS |
| 2063S-6 | 33667 | KING ENGINEERING CORPORATION DBA KING-GAGE SYSTEMS |
| 2063S-6-6-5 | 33667 | KING ENGINEERING CORPORATION DBA KING-GAGE SYSTEMS |
| 535657A1 | 05168 | ELSAG BAILEY INC |
| E-4336 | 33667 | KING ENGINEERING CORPORATION DBA KING-GAGE SYSTEMS |
| E-4336 2063S-6 | 33667 | KING ENGINEERING CORPORATION DBA KING-GAGE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4330-01-289-2419
Technical Data | NSN 4330-01-289-2419
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C43 QUICK-DISCONNECT SHELL |
| BODY OUTSIDE DIAMETER | 5.250 INCHES NOMINAL |
| BODY HEIGHT | 11.750 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY SEDIMENT BOWL |
| DESIGN TYPE | REUSABLE |
| FILTERING ELEMENT QUANTITY | 2 |
| FILTRATION RATING IN MICRONS | 0.1 ABSOLUTE |
| MEDIA FOR WHICH DESIGNED | AIR |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| TEMP RATING | 32.0 DEG FAHRENHEIT MINIMUM AND 120.0 DEG FAHRENHEIT MAXIMUM |
| DROP PRESSURE | NOT RATED |
| DIFFERENTIAL PRESSURE | NOT RATED |
| FIRST INTAKE CONNECTION TYPE | THREADED INTERNAL TUBE HEAD SIDE |
| FIRST INTAKE THREAD SERIES DESIGNATOR | UNF |
| FIRST INTAKE NOMINAL THREAD SIZE | 0.562 INCHES |
| FIRST INTAKE THREAD CLASS | 18 |
| FIRST INTAKE THREAD DIRECTION | RIGHT-HAND |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | BRACKET W/DRILLED HOLE TOP |
| BRACKET QUANTITY | 1 |
| MOUNTING HOLE QUANTITY | 2 |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.625 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| FILTERING SYSTEM FOR WHICH DESIGNED | FULL FLOW |
| FEATURES PROVIDED | DRAIN COCK |
| SPECIAL FEATURES | AUTOMATIC DRAIN; 20 SCFM; SHOCKPROOF |
Restrictions/Controls & Freight Information | NSN 4330-01-289-2419
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120940 | EXTRACTORS CENTRIFUGAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4330-01-289-2419
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
