NSN 4330-01-074-9502 ACA645F25Y4, AC-A645F-25Y4, 12707383

Product Details | FLUID FILTER ELEMENT

4330-01-074-9502 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: ACA645F25Y4, AC-A645F-25Y4, 12707383, 3001436, 30014361, 3001436-1, 325871, 7513983, 4330-01-074-9502, 01-074-9502, 4330010749502, 010749502

Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
43	11 APR 1979	01-074-9502	32624 ( FILTER ELEMENT, FLUID )

Drawings & Photos | NSN 4330-01-074-9502

Part Number	Request Date	QTY	Origin
7513983	2021-08-238	82	US
4330-01-074-9502	2020-08-242	2	AR
30014361	2020-06-178	2	US
30014361	2019-09-249	3	RU
30014361	2019-09-249	3	RU
3001436-1	2019-04-111	20	DIBBS
325871	2019-04-111	20	DIBBS
7513983	2019-04-111	20	DIBBS
AC-A645F-25Y4	2019-04-111	20	DIBBS
3001436-1	2019-03-84	6701	DIBBS
325871	2019-03-84	6701	DIBBS
7513983	2019-03-84	6701	DIBBS
AC-A645F-25Y4	2019-03-84	6701	DIBBS
3001436-1	2019-03-72	6701	DIBBS
325871	2019-03-72	6701	DIBBS
7513983	2019-03-72	6701	DIBBS
AC-A645F-25Y4	2019-03-72	6701	DIBBS
3001436-1	2019-01-29	1651	DIBBS
325871	2019-01-29	1651	DIBBS
7513983	2019-01-29	1651	DIBBS
AC-A645F-25Y4	2019-01-29	1651	DIBBS
4330-01-074-9502	2018-12-343	1532	DIBBS
4330-01-074-9502	2018-11-308	1037	DIBBS
30014361	2018-09-256	2	PA
4330-01-074-9502	2018-08-217	209	DIBBS
4330-01-074-9502	2018-07-211	2	United States
4330-01-074-9502	2018-07-182	1107	DIBBS
4330-01-074-9502	2018-05-133	2191	DIBBS
4330-01-074-9502	2017-02-37	1187	DIBBS
4330-01-074-9502	2016-10-297	75	DIBBS
4330-01-074-9502	2016-06-158	267	DIBBS
4330-01-074-9502	2016-04-115	541	DIBBS
4330-01-074-9502	2016-03-87	89	DIBBS
4330-01-074-9502	2016-01-03	910	DIBBS
4330-01-074-9502	2015-09-263	699	DIBBS
7513983	2015-03-76	20	TH
30014361	2015-02-50	1	Germany
4330-01-074-9502	2014-05-132	2825	DIBBS
4330-01-074-9502	2014-04-120	2825	DIBBS
4330-01-074-9502	2014-03-80	1022	DIBBS
4330-01-074-9502	2014-03-65	1022	DIBBS
4330-01-074-9502	2014-02-57	452	DIBBS
4330-01-074-9502	2014-02-41	452	DIBBS
4330-01-074-9502	2014-02-36	1246	DIBBS
4330-01-074-9502	2014-01-20	1246	DIBBS
3001436	2013-10-298	1	US
4330-01-074-9502	2013-09-261	1570	DIBBS
4330-01-074-9502	2013-09-245	1570	DIBBS
30014361	2013-08-219	15	CL
4330-01-074-9502	2013-05-137	925	DIBBS
4330-01-074-9502	2013-05-122	925	DIBBS
4330-01-074-9502	2013-04-99	455	DIBBS
4330-01-074-9502	2013-03-84	455	DIBBS
4330-01-074-9502	2013-03-77	582	DIBBS
4330-01-074-9502	2013-03-62	582	DIBBS
30014361	2013-01-21	2	Greece
4330-01-074-9502	2012-11-325	0	DIBBS
3001436-1	2012-11-310	60
30014361	2011-06-160	6	United States
4330-01-074-9502	2010-09-267	3	us
4330-01-074-9502	2010-02-47	357	DIBBS
4330-01-074-9502	2009-10-292	548	DIBBS

Cross Reference | NSN 4330-01-074-9502

Part Number	Cage Code	Manufacturer
12707383	19200	US ARMY ARDEC RDECOM
3001436	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
3001436-1	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
325871	13520	WESTERN FILTER, A DIVISION OF DONALDSON COMPANY, INC.
7513983	05228	PTI TECHNOLOGIES INC.
AC-A645F-25Y4	18350	PALL AEROPOWER CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4330-01-074-9502

Compare

Related Products | NSN 4330-01-074-9502

4330-01-074-9593, 4330-01-074-9642, 4330-01-075-1105, 4330-01-075-2013, 4330-01-075-4643

Technical Data | NSN 4330-01-074-9502

Characteristic	Specifications

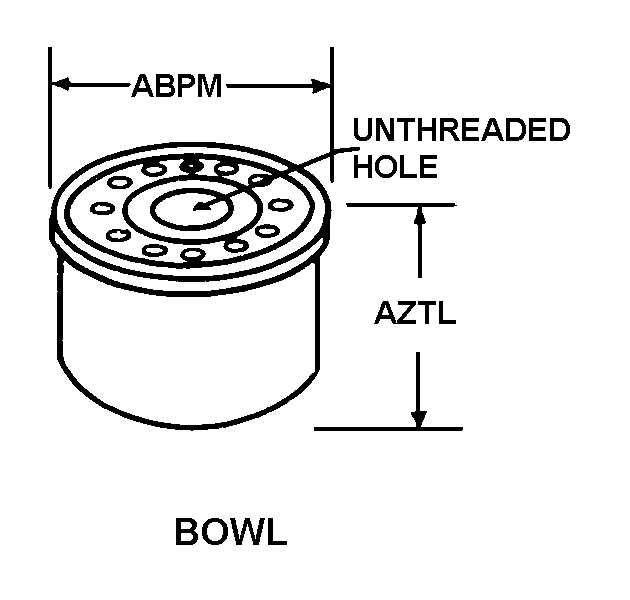

STYLE DESIGNATOR	A28 BOWL
BODY DIAMETER	1.750 INCHES NOMINAL
BODY OVERALL LENGTH	4.437 INCHES NOMINAL
MATERIAL	ANY ACCEPTABLE BODY
FILTERING MEDIA DESIGN	ANY ACCEPTABLE SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE	NONREUSABLE
FILTRATION RATING IN MICRONS	NOT RATED
FLOW DIRECTION	OUTSIDE IN
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
TEMP RATING	-53.0 DEG FAHRENHEIT MINIMUM AND 350.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE	7.0 POUNDS PER SQUARE INCH
DIFFERENTIAL PRESSURE	300.0 POUNDS PER SQUARE INCH

Restrictions/Controls & Freight Information | NSN 4330-01-074-9502

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	133320	MACHINERY PARTS OIL/FUEL FILTER
Less than car load rating	Q	70
Less than truck load rating	Q	70.0
Water commodity Code	594	unknown
Originating Activity Code	XH	USCG Aircraft Repair and Supply Center Elizabeth City, NC 27909-5001
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4330-01-074-9502

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	LP	SX:FSC 2840 ITEMS NOT ELSEWHERE MMAC CODED
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
