NSN 4330-00-898-0135 AD25201, AD2520-1, AE4147
Product Details | FLUID FILTER COVER
4330-00-898-0135 A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters
Part Alternates: AD25201, AD2520-1, AE4147, AE414-7, 3N225PC56, 4330-00-898-0135, 00-898-0135, 4330008980135, 008980135
Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1962 | 00-898-0135 | 22569 ( COVER, FLUID FILTER ) |
Drawings & Photos | NSN 4330-00-898-0135
Demand History | NSN 4330-00-898-0135
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3N225PC56 | 2021-07-189 | 2 | DIBBS |
| AD2520-1 | 2021-07-189 | 2 | DIBBS |
| AE414-7 | 2021-07-189 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4330-00-898-0135
Technical Data | NSN 4330-00-898-0135
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| ATTACHMENT METHOD | BOLTED |

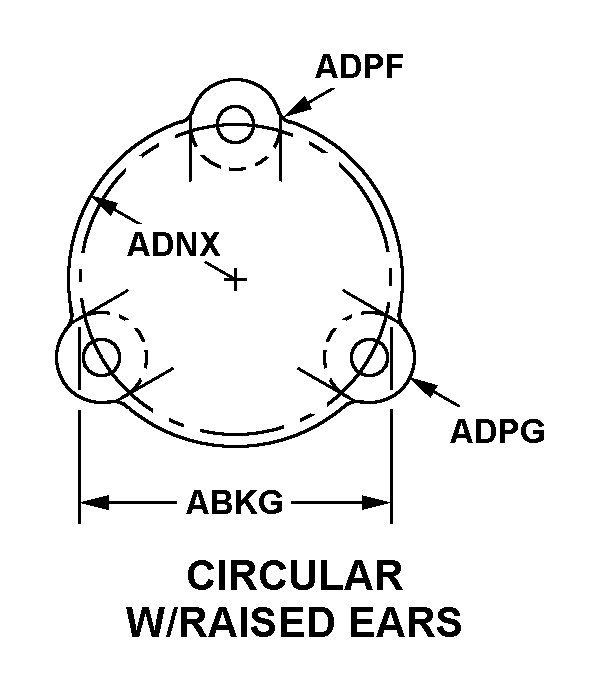

| PERIPHERAL SHAPE STYLE | 50 CIRCULAR W/RAISED EARS |
| BOLT CIRCLE DIAMETER | 16.125 INCHES NOMINAL |
| BODY RADIUS | 6.031 INCHES NOMINAL |
| INVERTED RADIUS | 7.000 INCHES NOMINAL |
| EAR RADIUS | 1.250 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 9 RECESS, SAME SHAPE AS THE PERIPHERY |
| FLANGE THICKNESS | 0.688 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 1.500 INCHES NOMINAL |
| BODY THICKNESS | 1.812 INCHES NOMINAL |
| MOUNTING HOLE TYPE AND QUANTITY | 4 PLAIN |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 2.000 INCHES NOMINAL |
| FLUID FILTER ELEMENT RETAINER | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4330-00-898-0135
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4330-00-898-0135
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
