NSN 4330-00-855-1060 PR4246, PR424-6, 53576
Product Details | FLUID FILTER
4330-00-855-1060 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.21516500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving41300045Refrigeration and Air Conditioning Components43300057Centrifugals, Separators, and Pressure and Vacuum Filters4930000063500059Miscellaneous Alarm, Signal, and Security Detection Systems65150057Medical and Surgical Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies66300029Chemical Analysis Instruments
Part Alternates: PR4246, PR424-6, 53576, 7515670, 4330-00-855-1060, 00-855-1060, 4330008551060, 008551060
Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 04 OCT 1967 | 00-855-1060 | 32622 ( FILTER, FLUID ) |

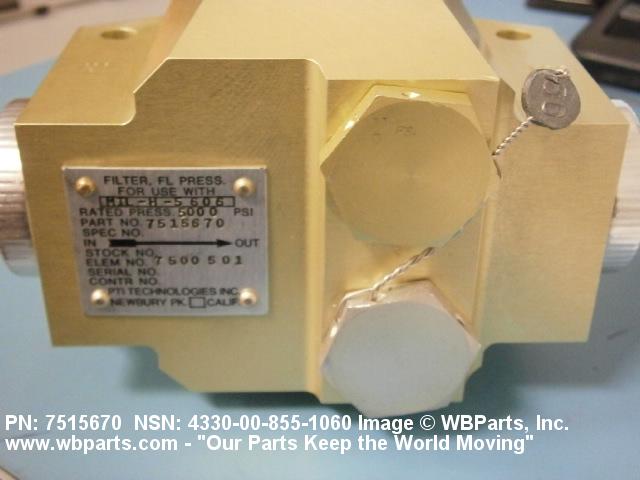

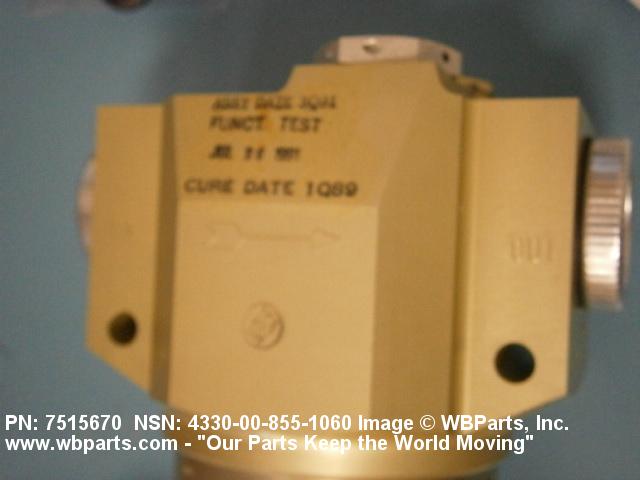

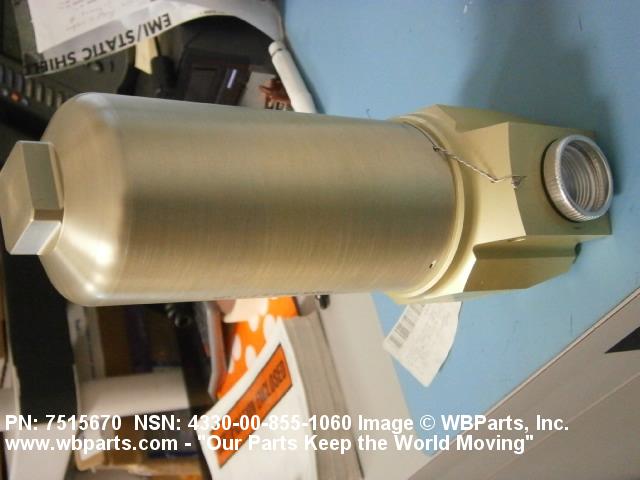

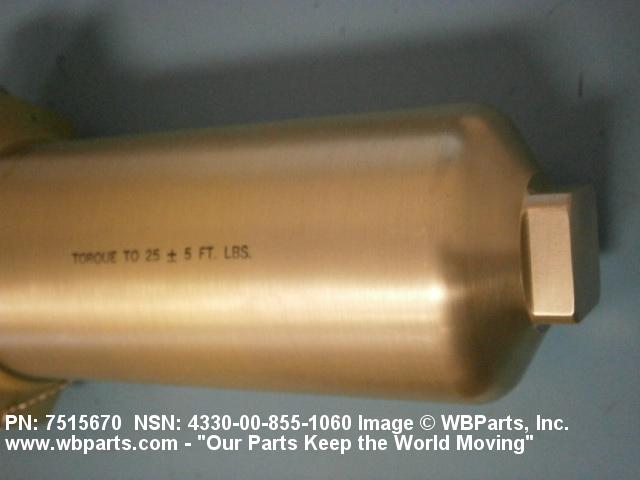

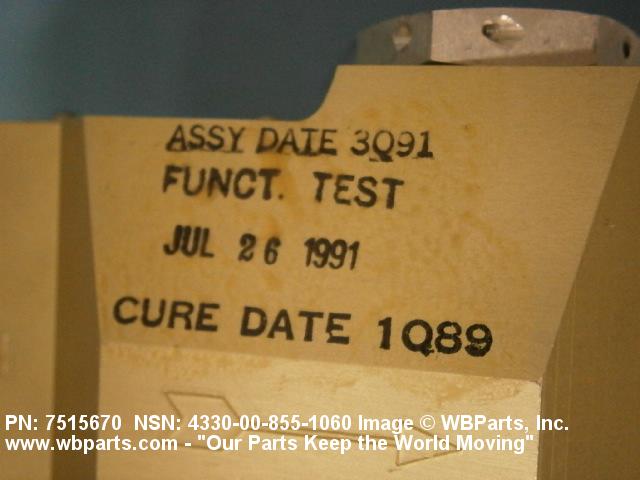

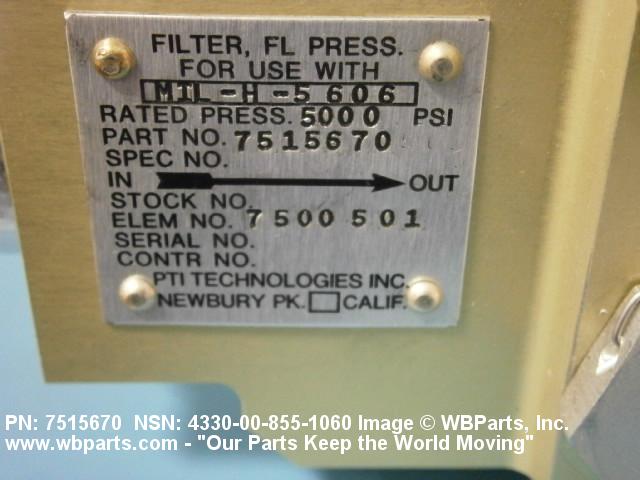

Drawings & Photos | NSN 4330-00-855-1060
Demand History | NSN 4330-00-855-1060
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4330-00-855-1060 | 2014-02-57 | 1 | DIBBS |
| 4330-00-855-1060 | 2014-02-41 | 1 | DIBBS |
| 4330-00-855-1060 | 2012-03-88 | 1 | United States |
| 4330-00-855-1060 | 2012-03-80 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4330-00-855-1060
Technical Data | NSN 4330-00-855-1060
| Characteristic | Specifications |
|---|---|
| BODY LENGTH | 3.500 INCHES NOMINAL |
| BODY WIDTH | 4.500 INCHES NOMINAL |
| BODY HEIGHT | 10.625 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING FILTERING MEDIUM ALUMINUM ALLOY SEDIMENT BOWL |
| FILTERING MEDIA DESIGN | ENCASED SINGLE FILTERING MEDIA RESPONSE |
| DESIGN TYPE | REUSABLE |
| FILTERING ELEMENT QUANTITY | 1 |
| FILTRATION RATING IN MICRONS | 10.0 NOMINAL |
| MAXIMUM OPERATING PRESSURE | 5000.0 POUNDS PER SQUARE INCH |
| FIRST INTAKE CONNECTION TYPE | THREADED INTERNAL TUBE END |
| FIRST INTAKE THREAD SERIES DESIGNATOR | UN |
| FIRST INTAKE NOMINAL THREAD SIZE | 1.312 INCHES |
| FIRST INTAKE THREAD QUANTITY PER INCH | 12 |
| FIRST INTAKE THREAD CLASS | 2B |
| FIRST INTAKE THREAD DIRECTION | RIGHT-HAND |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | BRACKET W/DRILLED HOLE HEAD SIDE |
| BRACKET QUANTITY | 1 |
| MOUNTING HOLE QUANTITY | 2 |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 3.687 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.656 INCHES NOMINAL |
| FEATURES PROVIDED | BY-PASS VALVE |
| MANUFACTURERS CODE | 05228 |
| DESIGN CONTROL REFERENCE | 7515670 |
Restrictions/Controls & Freight Information | NSN 4330-00-855-1060
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4330-00-855-1060
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
