NSN 4330-00-844-0843 KF301K25, KF30-1K25, KF301K25P
Product Details | FLUID FILTER
4330-00-844-0843 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.21516500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving41300045Refrigeration and Air Conditioning Components43300057Centrifugals, Separators, and Pressure and Vacuum Filters4930000063500059Miscellaneous Alarm, Signal, and Security Detection Systems65150057Medical and Surgical Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies66300029Chemical Analysis Instruments
Part Alternates: KF301K25, KF30-1K25, KF301K25P, KF30-1K25P, LF201K25, LF20-1K25, 4330-00-844-0843, 00-844-0843, 4330008440843, 008440843
Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 20 SEP 1967 | 00-844-0843 | 32622 ( FILTER, FLUID ) |
Drawings & Photos | NSN 4330-00-844-0843
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4330-00-844-0843
Technical Data | NSN 4330-00-844-0843
| Characteristic | Specifications |
|---|---|

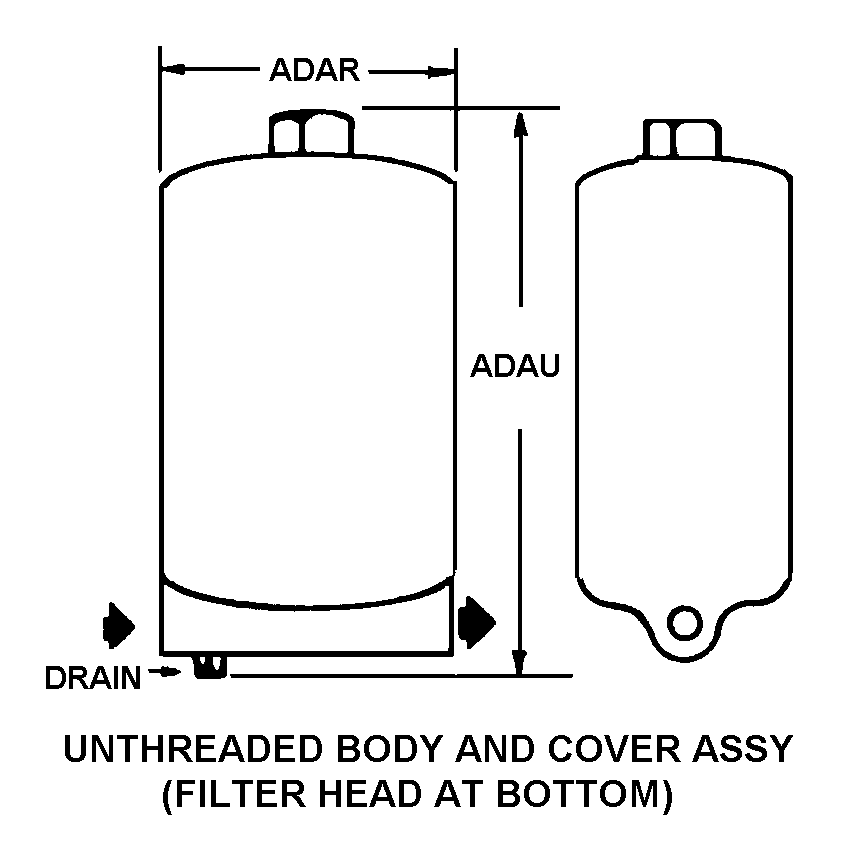

| STYLE DESIGNATOR | C39 UNTHREADED BODY AND COVER ASSY |
| BODY OUTSIDE DIAMETER | 5.000 INCHES NOMINAL |
| BODY HEIGHT | 15.750 INCHES NOMINAL |
| MATERIAL | IRON CAST BODY RUBBER BUNA N SEAL STEEL SEDIMENT BOWL |
| FILTERING MEDIA DESIGN | PLEATED SINGLE FILTERING MEDIA RESPONSE |
| DESIGN TYPE | REUSABLE |
| FILTERING ELEMENT QUANTITY | 1 |
| FILTRATION RATING IN MICRONS | 25.0 NOMINAL |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
| TEMP RATING | -45.0 DEG FAHRENHEIT MINIMUM AND 225.0 DEG FAHRENHEIT MAXIMUM |
| DROP PRESSURE | NOT RATED |
| DIFFERENTIAL PRESSURE | 30.0 POUNDS PER SQUARE INCH |
| FIRST INTAKE CONNECTION TYPE | THREADED INTERNAL PIPE END |
| FIRST INTAKE THREAD SERIES DESIGNATOR | NPTF |
| FIRST INTAKE NOMINAL THREAD SIZE | 1.500 INCHES |
| FIRST INTAKE THREAD DIRECTION | RIGHT-HAND |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | UNTHREADED HOLE BASE |
| MOUNTING HOLE QUANTITY | 4 |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 4.5000 INCHES NOMINAL AND 5.000 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.562 INCHES NOMINAL |
| FILTERING SYSTEM FOR WHICH DESIGNED | FULL FLOW |
| FEATURES PROVIDED | BY-PASS VALVE AND DRAIN PLUG |
| III UNPACKAGED UNIT WEIGHT | 50.00 POUNDS |
Restrictions/Controls & Freight Information | NSN 4330-00-844-0843
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:FILTERS,NOI SUB6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4330-00-844-0843
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
