NSN 4330-00-554-7420 MS219186, MS21918-6 , MS219186A

Product Details | FLUID FILTER ELEMENT

4330-00-554-7420 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: MS219186, MS21918-6 , MS219186A, MS21918-6A , MS219226, MS21922-6 , MS219226R, MS21922-6R , MS219228, MS21922-8 , MS291226, MS29122-6 , AS219226, AS21922-6 , SAE AS18280 , SAEAS18280, X5008/12/156 ITEM 2 , X5008/12/156/2 , X5008121562, X500812156ITEM2, MILF18280 , MILF18280E, MIL-F-18280E , 140093, 156 ITEM 2 , 156/2 , 1562, 156ITEM2, 1727063, 4330-00-554-7420, 00-554-7420, 4730005547398 , 4330005547420, 005547420

Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
43	01 JAN 1963	00-554-7420	32624 ( FILTER ELEMENT, FLUID )

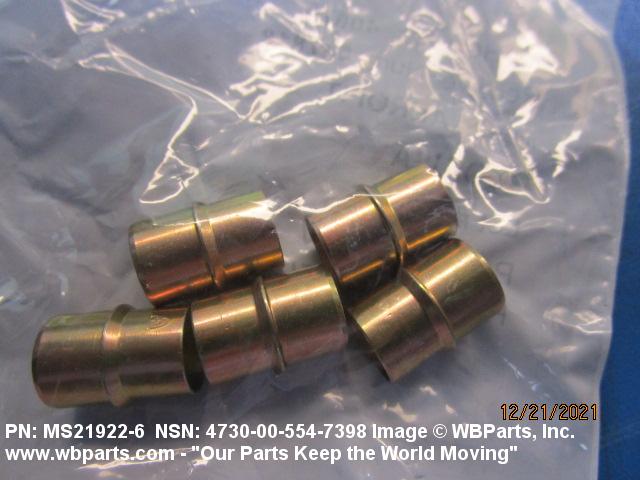

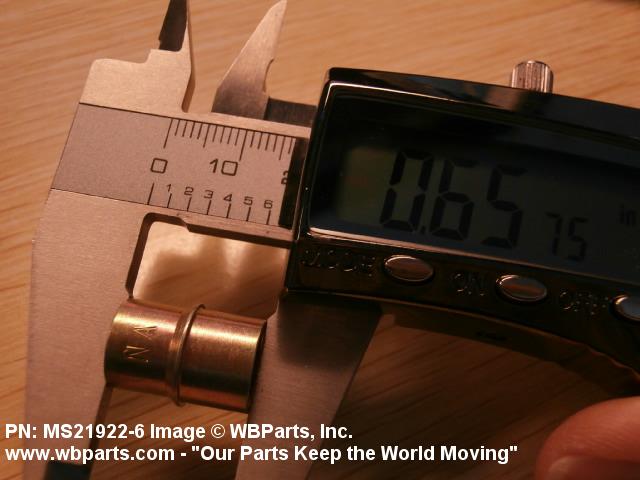

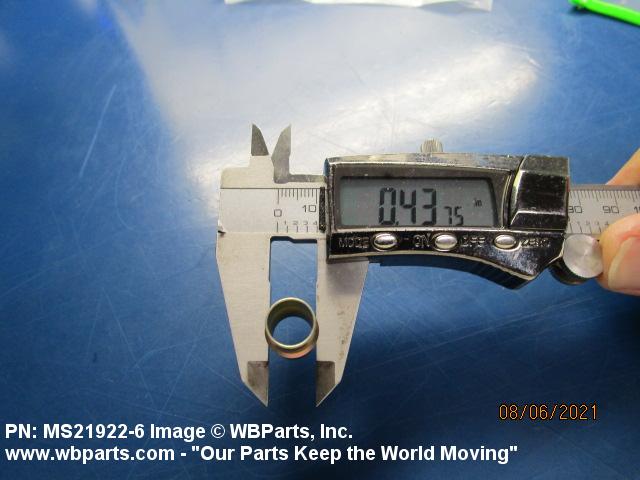

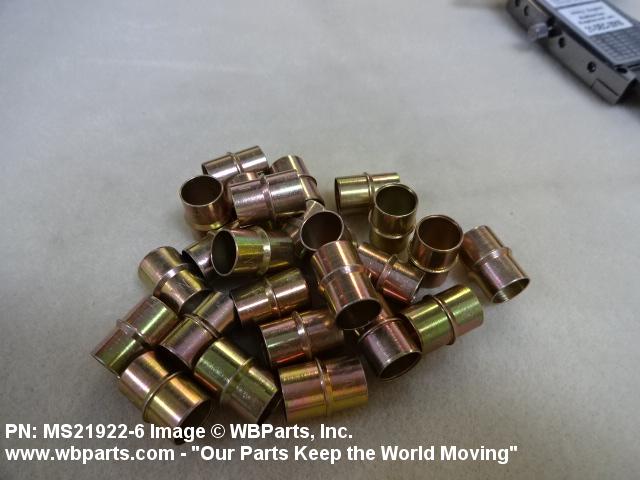

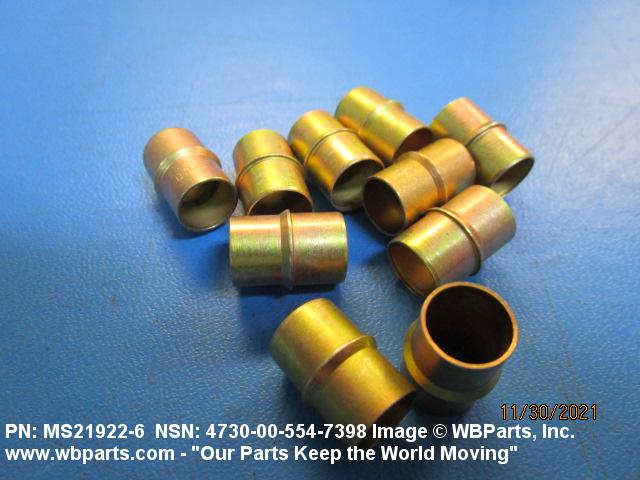

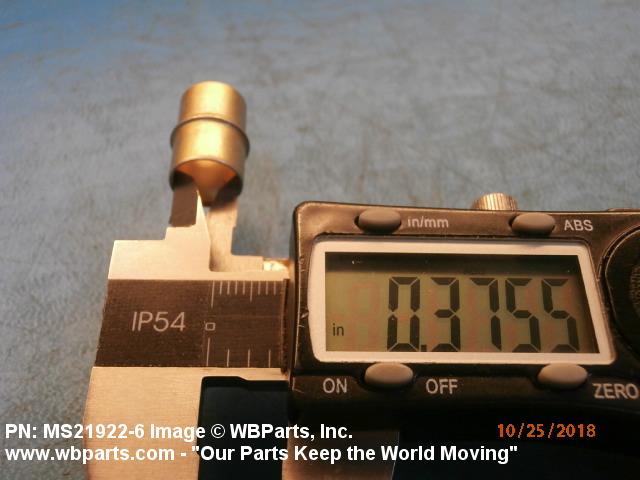

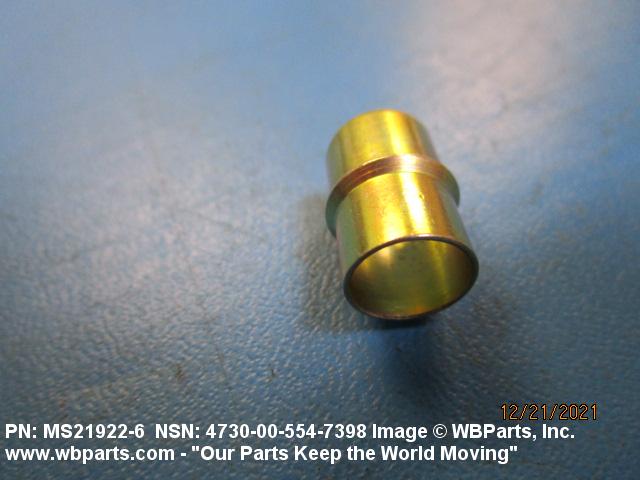

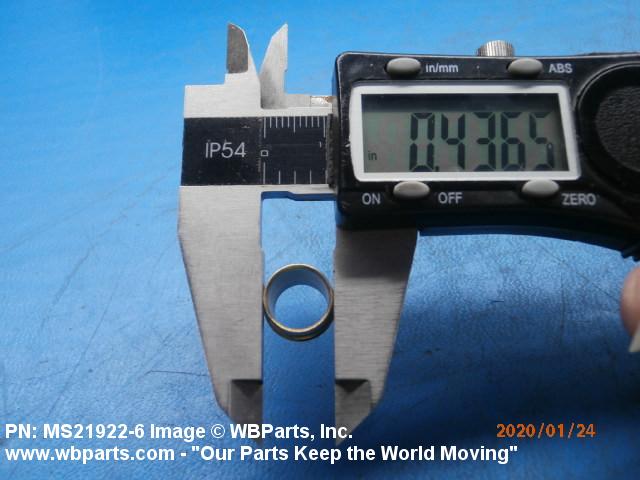

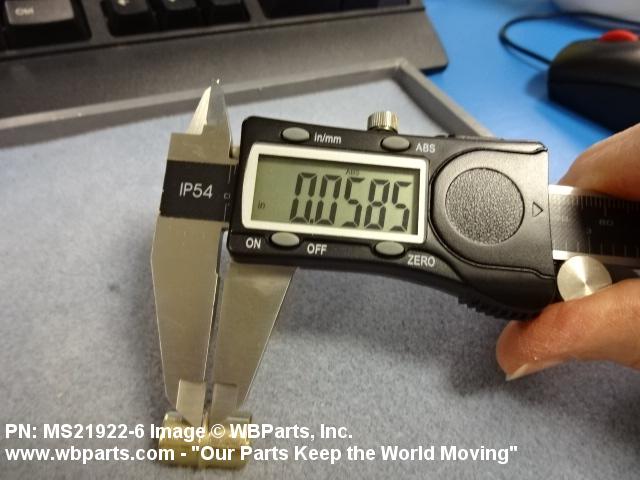

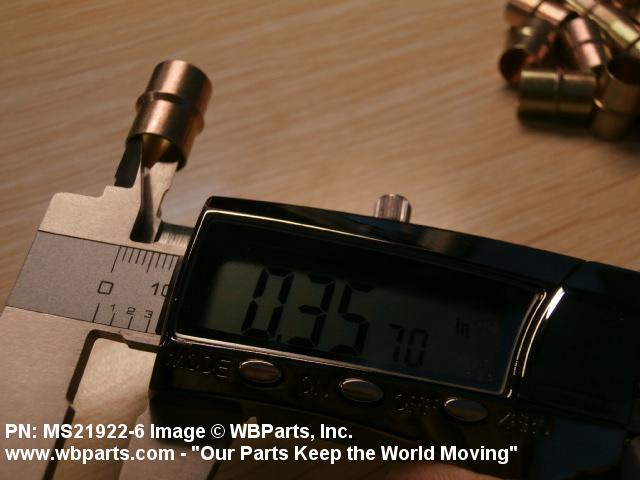

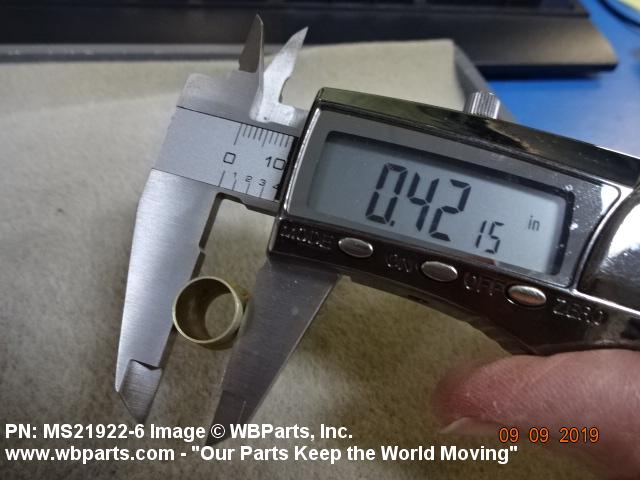

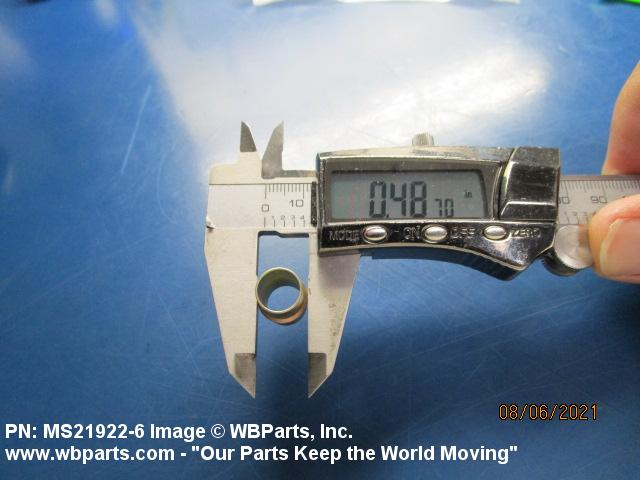

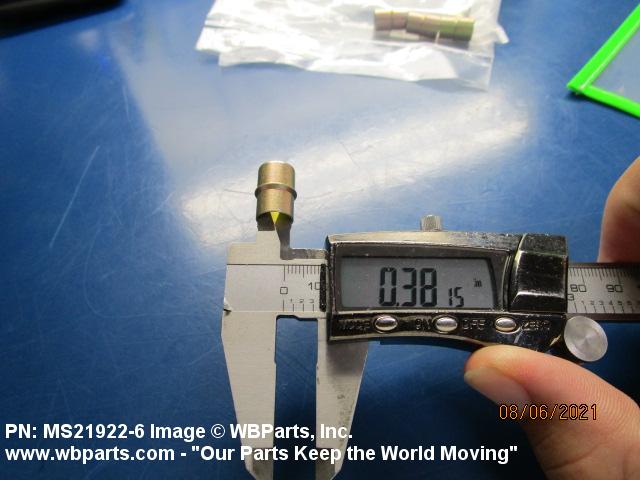

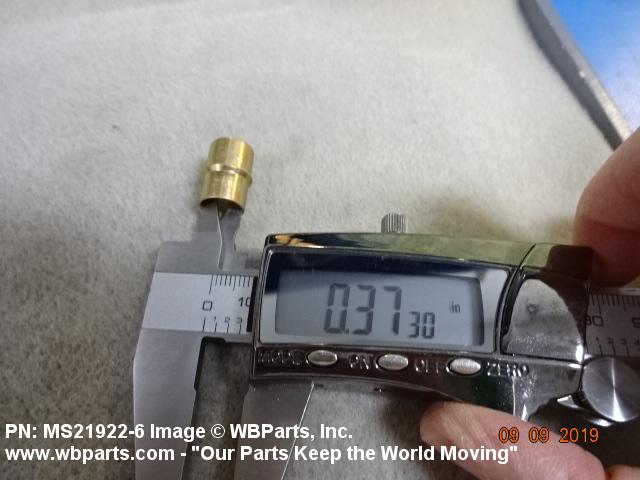

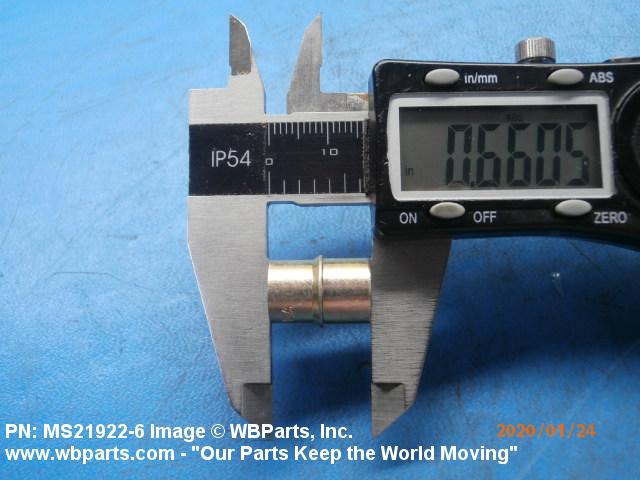

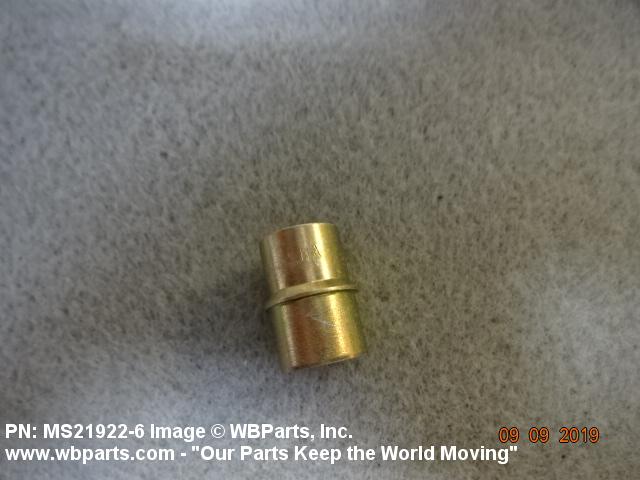

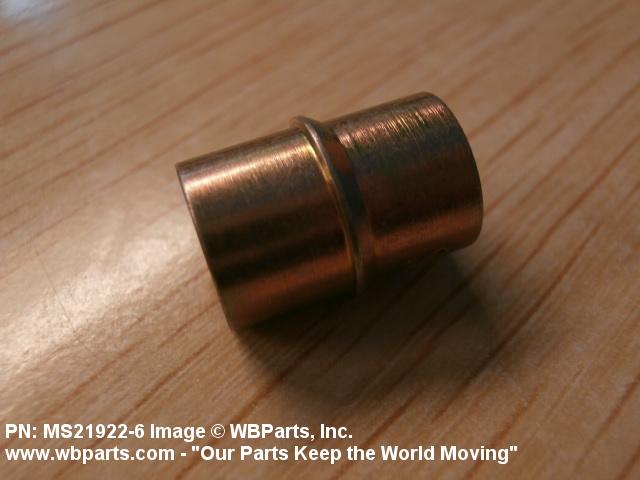

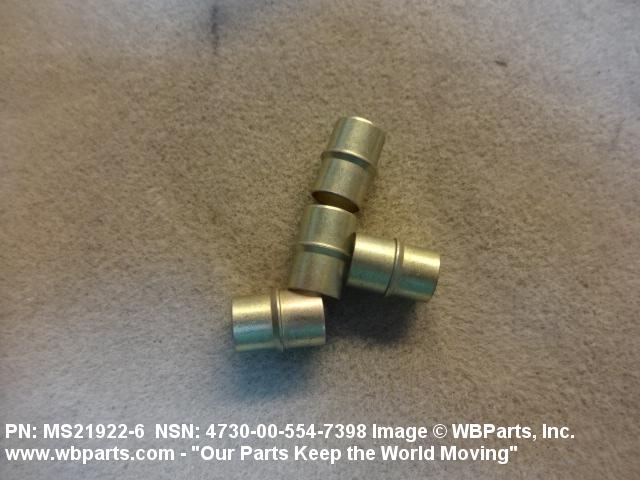

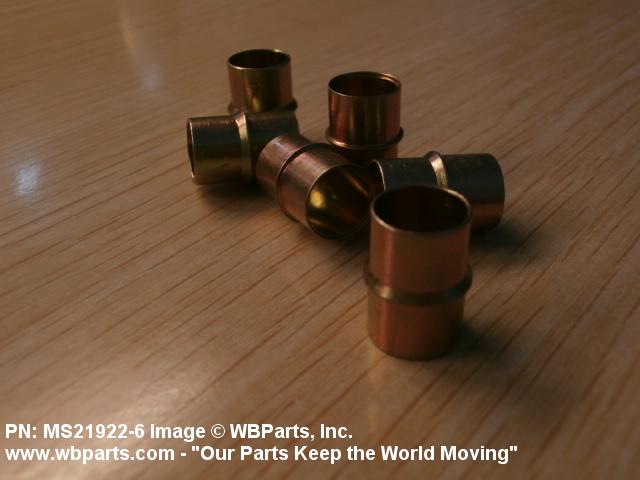

Drawings & Photos | NSN 4330-00-554-7420

Part Number	Request Date	QTY	Origin
MS219226	2024-11-310	50	United States
MS219226	2024-07-197	100	US
MS219226	2024-04-101	10	United States
MS219226	2024-03-66	20	United States
MS219228	2024-03-66	20	United States
MS219226	2023-10-278	22	US
MS219228	2023-10-278	42	US
MS219226	2023-08-222	50	United States
MS219226	2023-04-96	50	Singapore
MS219228	2023-03-74	15	Canada
MS219226	2023-01-05	70	us
MS219226	2022-09-259	15	US
MS219226	2022-07-201	348	IN
MS219228	2022-07-201	146	IN
MS219226	2022-06-174	1000	IN
MS219226	2022-06-165	1000	US
MS219226	2022-05-140	348	IN
MS219228	2022-05-140	146	IN
MS219226	2022-02-53	50	IN
MS219226	2021-10-286	12	United States
MS219226	2021-09-258	750	IN
MS219226	2021-08-214	20	us
MS219226	2021-04-105	900	KR
MS219226	2021-04-104	900	KR
MS219226	2021-03-90	10	us
MS219226	2020-07-204	23	US
MS219226	2020-04-104	10	us
MS219226	2020-04-100	280	United States
MS219226	2020-03-90	6	US
4330-00-554-7420	2019-02-59	6	us
MS219226	2018-12-346	300	US
MS219226	2018-12-345	50	United States
MS219226	2018-10-295	40	Singapore
4330-00-554-7420	2018-06-179	66	us
MS219226	2018-05-124	50	US
MS219226	2018-04-102	200	US
4730-00-554-7398	2017-11-312	10	United States
MS219226	2017-08-215	175	US
MS21922-6	2017-07-192	165	PK
MS21922-8	2017-07-192	267	PK
MS219226	2017-06-159	50	US
AS219226	2017-05-136	2	US
MS219226	2017-05-135	2	US
MS219228	2017-05-135	2	US
MS219226	2017-04-107	300	India
MS219226	2017-04-97	1	FR
MS219226	2016-12-337	5	US
MS219226	2016-12-337	10	US
MS219226	2016-12-337	14	US
MS219226	2016-12-337	20	US
MS219226	2016-05-140	1	US
MS219226	2016-03-67	6	Colombia
MS219228	2015-11-323	6	US
MS219226	2015-09-265	200	IT
MS219228	2015-09-265	200	IT
MS219226	2014-10-279	500	US
MS219228	2014-06-176	10	US
MS219226	2014-04-112	10	Thailand
MS219226	2014-01-10	12	US
MS219226	2013-12-338	250	US
MS219226	2013-03-60	5885	IN
MS219226	2013-01-22	5	United States
MS219228	2012-12-354	20	US
1562	2012-11-310	3
MS219228	2012-10-304	25	US
MS21922-6	2011-10-291	600
MS219228	2011-09-273	300	US
MS219226	2011-06-180	10	United States
MS21922-8	2011-06-155	10	PK
MS21922-8	2011-06-155	10	PK
AS219226	2011-05-150	2	CN
MS219226	2010-12-350	30	United States
MS219228	2010-12-350	30	United States
MS219228	2010-08-235	20	US
MS219226	2010-08-235	30	US
MS219226	2010-06-176	42	Italy
MS219228	2010-06-176	28	Italy
4730-00-554-7398	2009-09-254	288	Singapore
4730-00-554-7398	2009-07-189	65	US
MS219226	2009-06-176	50	US
MS219228	2009-06-153	4	Australia
4330-00-554-7420	2009-05-124	10	DIBBS
4730-00-554-7398	2009-04-105	500	US
MS219226	2009-04-104	500	United States
4730-00-554-7398	2008-11-329	500	US
MS219228	2008-09-273	50	US
MS219226	2007-11-324	300	Iraq
4730-00-554-7398	2007-09-255	20	DE
AS219226	2007-04-95	4	US

Cross Reference | NSN 4330-00-554-7420

Part Number	Cage Code	Manufacturer
140093	05167	PACIFIC SCIENTIFIC COMPANY DBA PACIFIC SCIENTIFIC HTL/KIN
140093	45402	PACIFIC SCIENTIFIC COMPANY DBA PACIFIC SCIENTIFIC HTL/KIN TECHS
1727063	90005	PUROLATOR FACET, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4330-00-554-7420

Compare

Related Products | NSN 4330-00-554-7420

4330-00-555-0798, 4330-00-555-1299, 4330-00-555-1824, 4330-00-555-5705, 4330-00-555-9649

Technical Data | NSN 4330-00-554-7420

Characteristic	Specifications
STYLE DESIGNATOR	A6 CYLINDRICAL W/OUT CONTAINER
BODY DIAMETER	0.100 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
BODY INSIDE DIAMETER	0.064 INCHES MINIMUM AND 0.067 INCHES MAXIMUM
BODY OVERALL LENGTH	0.550 INCHES NOMINAL
MATERIAL	STEEL FILTERING MEDIUM
FILTERING MEDIA DESIGN	SPIRAL WOUND SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE	NONREUSABLE
FILTRATION RATING IN MICRONS	10.0 ABSOLUTE
FLOW DIRECTION	OUTSIDE IN
MEDIA FOR WHICH DESIGNED	OXYGEN, GASEOUS
TEMP RATING	72.0 DEG FAHRENHEIT MINIMUM AND 300.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE	0.8 POUNDS PER SQUARE INCH
DIFFERENTIAL PRESSURE	NOT RATED
III FSC APPLICATION DATA	VALVE,BREATHING EQUIPMENT,ACFT
MANUFACTURERS CODE	05167
MFR SOURCE CONTROLLING REFERENCE	140093

Restrictions/Controls & Freight Information | NSN 4330-00-554-7420

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4330-00-554-7420

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
