NSN 4330-00-461-4047 M8138030, M81380-30, CDF230E

Product Details | FLUID FILTER ELEMENT

4330-00-461-4047 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: M8138030, M81380-30, CDF230E, CDF-230E, EM30202, EM-30202, GNG230, GNG-230, MILM81380, MIL-M-81380, MILPRF81380, MIL-PRF-81380, 041315M230IN, 041315-M2-30IN., 041630M1, 041630-M1, 041630S, 047809, 4330-00-461-4047, 00-461-4047, 4330004614047, 004614047

Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
43	09 MAY 1969	00-461-4047	32624 ( FILTER ELEMENT, FLUID )

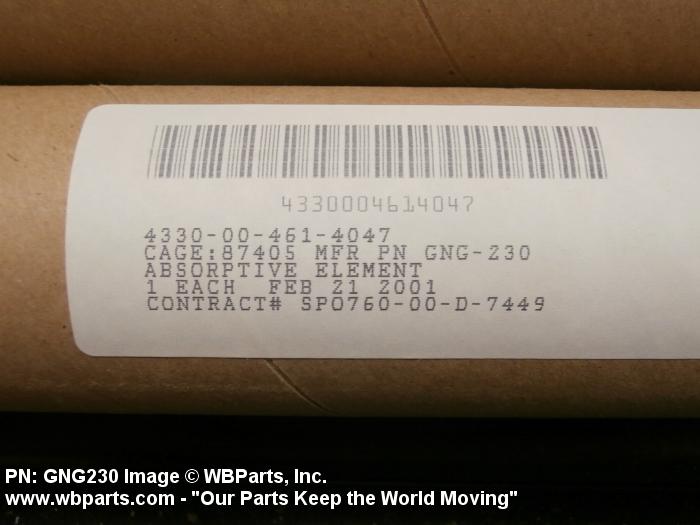

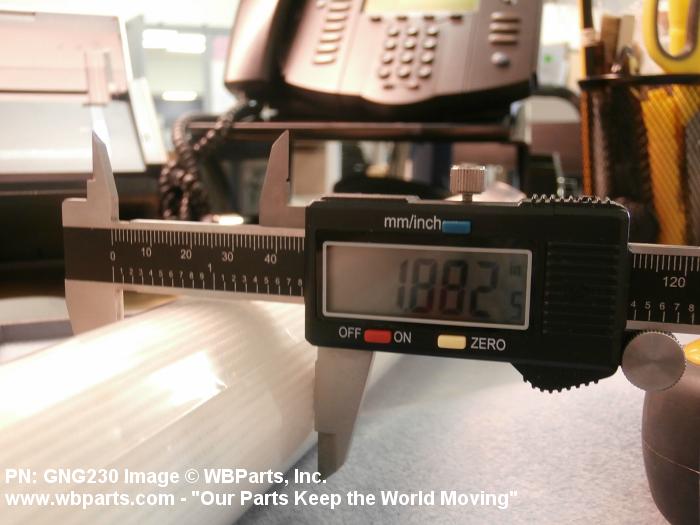

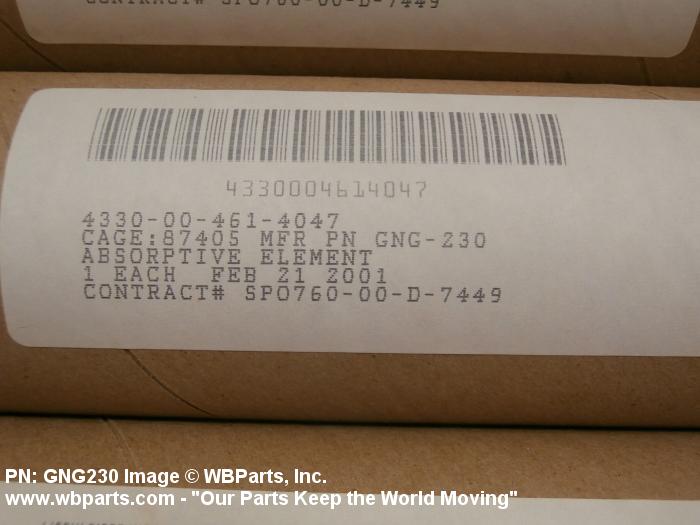

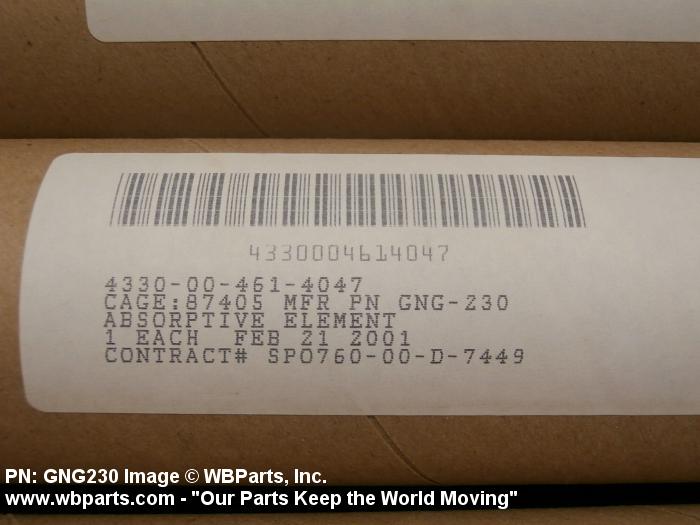

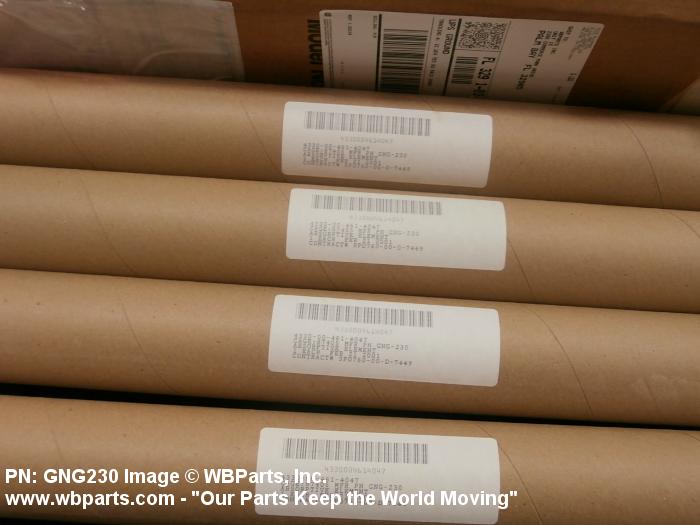

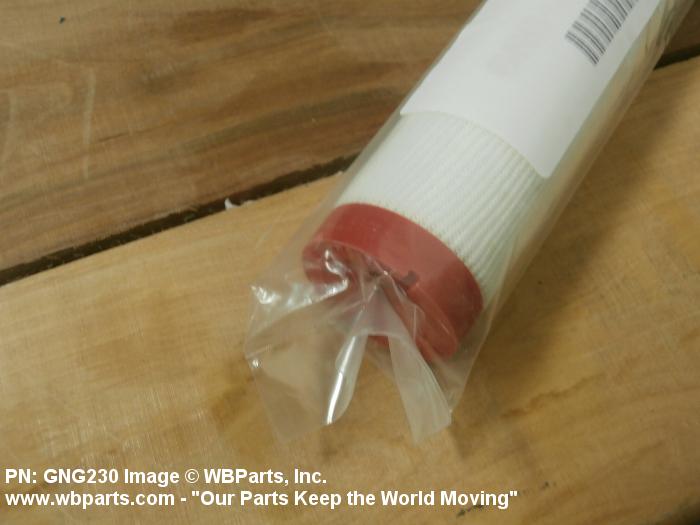

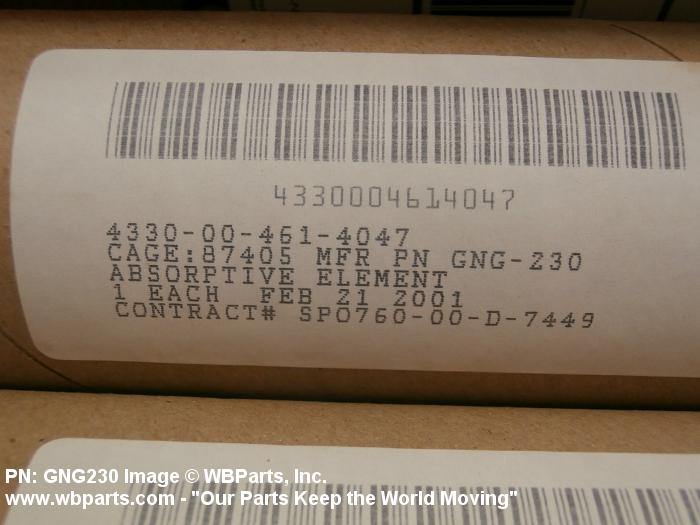

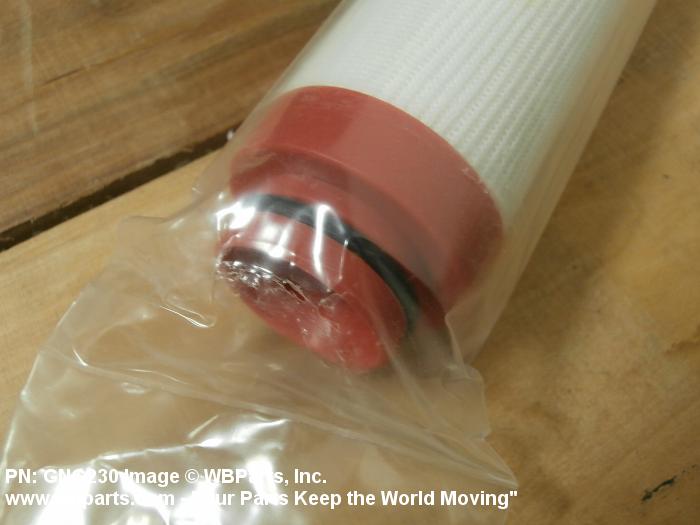

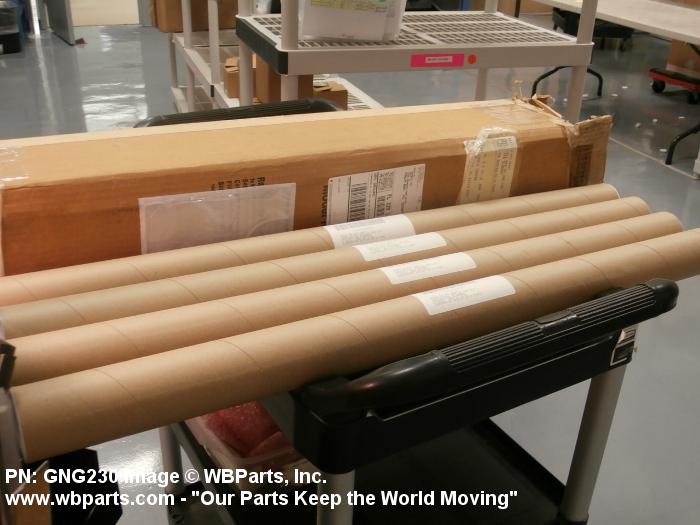

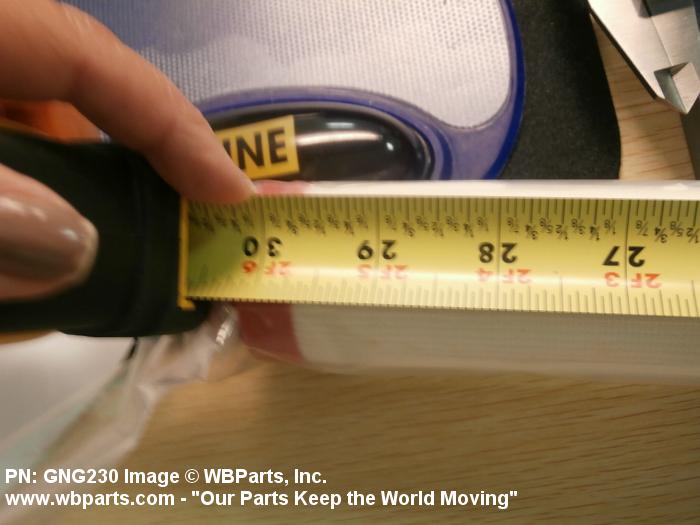

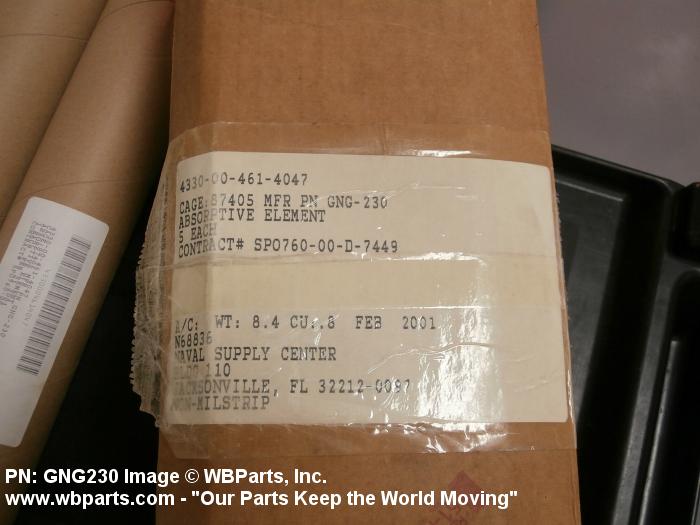

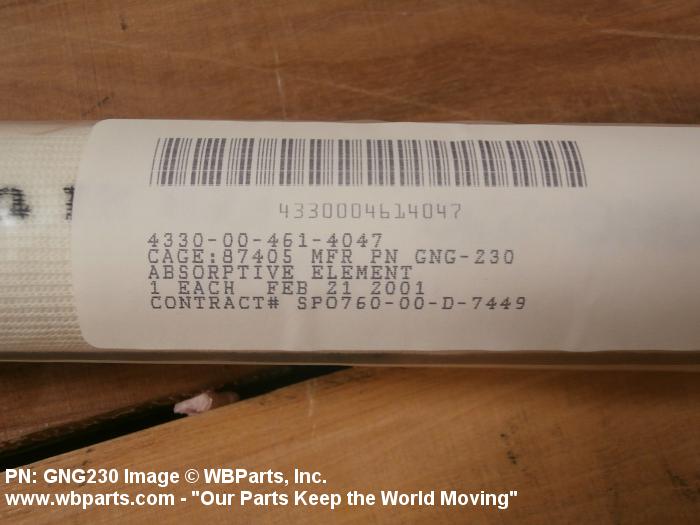

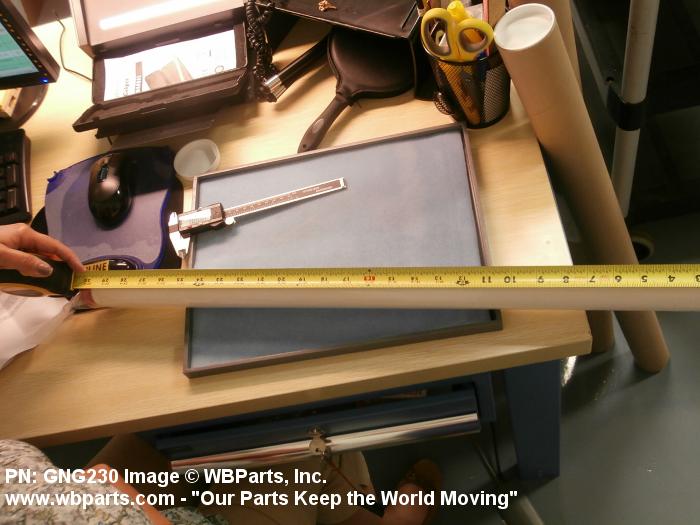

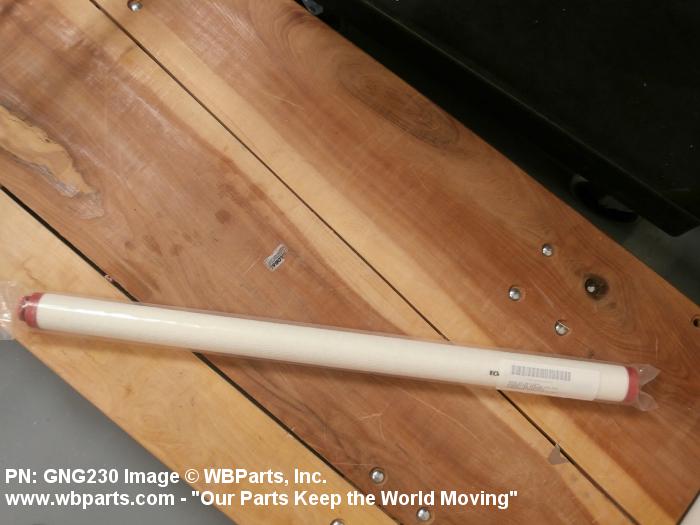

Drawings & Photos | NSN 4330-00-461-4047

Part Number	Request Date	QTY	Origin
4330-00-461-4047	2022-05-132	20	US
4330-00-461-4047	2016-10-293	184	DIBBS
4330-00-461-4047	2016-05-146	229	DIBBS
4330-00-461-4047	2015-12-364	236	DIBBS
4330-00-461-4047	2015-11-318	36	DIBBS
4330-00-461-4047	2015-11-309	33	DIBBS
4330-00-461-4047	2015-11-306	36	DIBBS
4330-00-461-4047	2015-10-298	33	DIBBS
4330-00-461-4047	2015-09-260	33	DIBBS
4330-00-461-4047	2015-07-208	52	DIBBS
4330-00-461-4047	2015-06-176	60	DIBBS
4330-00-461-4047	2014-07-210	4	Spain
GNG230	2010-05-128	40	LT

Cross Reference | NSN 4330-00-461-4047

Part Number	Cage Code	Manufacturer
041315-M2-30IN.	90005	PUROLATOR FACET, INC.
041630-M1	90005	PUROLATOR FACET, INC.
041630S	90005	PUROLATOR FACET, INC.
047809	90005	PUROLATOR FACET, INC.
CDF-230E	13573	VELCON FILTERS, LLC
EM-30202	31381	PARKER-HANNIFIN CORPORATION DBA RACOR DIV
GNG-230	87405	PECOFACET OKLAHOMA LLC DIV PECOFACET OKLAHOMA LLC
M81380-30	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-M-81380	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-81380	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4330-00-461-4047

Compare

Related Products | NSN 4330-00-461-4047

4330-00-462-0259, 4330-00-462-3973, 4330-00-463-3735, 4330-00-463-3787, 4330-00-463-4499

Technical Data | NSN 4330-00-461-4047

Characteristic	Specifications
STYLE DESIGNATOR	A10 CYLINDRICAL W/CONTAINER
BODY DIAMETER	1.890 INCHES NOMINAL
BODY INSIDE DIAMETER	ANY ACCEPTABLE
BODY OVERALL LENGTH	30.000 INCHES NOMINAL
MATERIAL	ANY ACCEPTABLE CONTAINER/CARTRIDGE ANY ACCEPTABLE FILTERING MEDIUM ANY ACCEPTABLE SEAL
FILTERING MEDIA DESIGN	ANY ACCEPTABLE SINGLE FILTERING MEDIA RESPONSE
FILTRATION RATING IN MICRONS	NOT RATED
MEDIA FOR WHICH DESIGNED	ANY ACCEPTABLE
TEMP RATING	NOT RATED
DROP PRESSURE	NOT RATED
DIFFERENTIAL PRESSURE	NOT RATED
FILTERING SURFACE AREA	ANY ACCEPTABLE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-81380

Restrictions/Controls & Freight Information | NSN 4330-00-461-4047

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	069100	FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	594	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4330-00-461-4047

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
