NSN 4330-00-370-8099 0611020927, 06-1102-0927 , 20011431
Product Details | E MECHANICAL FILTER
4330-00-370-8099
Part Alternates: 0611020927, 06-1102-0927 , 20011431, 2001-1431, 28880641, 2888064-1, 6-1102-0927, 4330-00-370-8099, 00-370-8099, 4330003708099, 003708099, 611020927
Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 08 MAR 1974 | 00-370-8099 | 77777 ( ) |

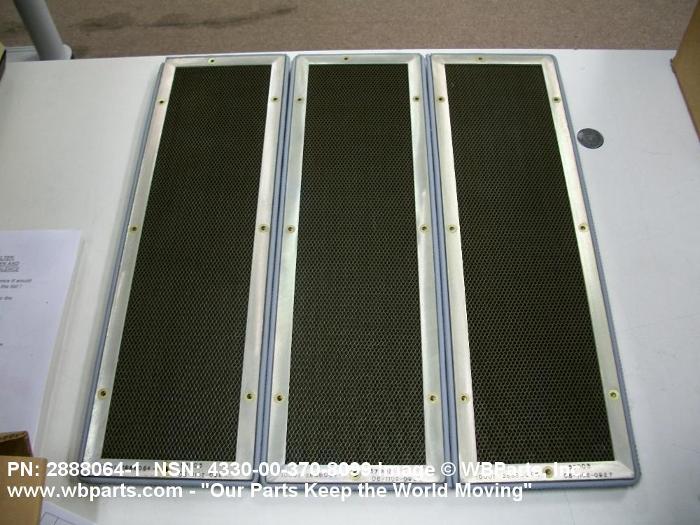

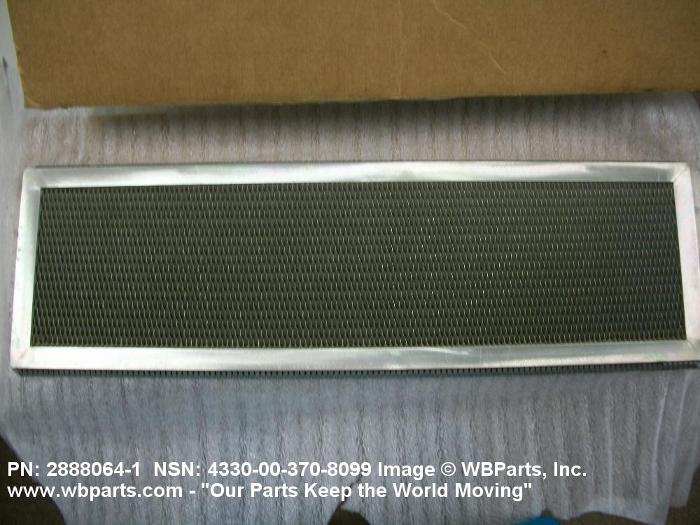

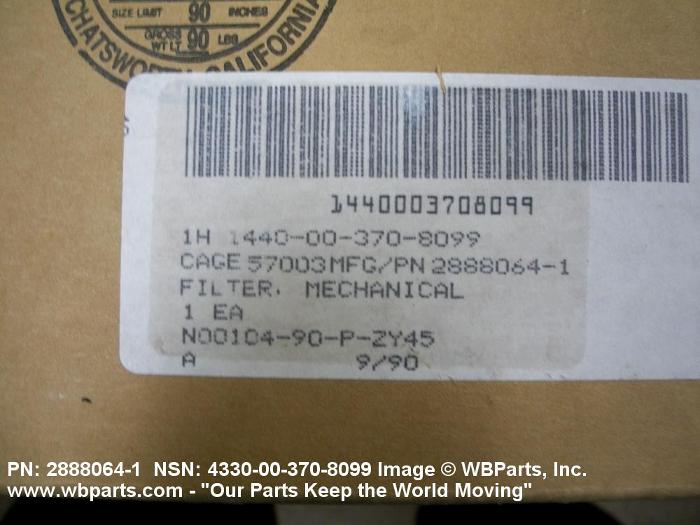

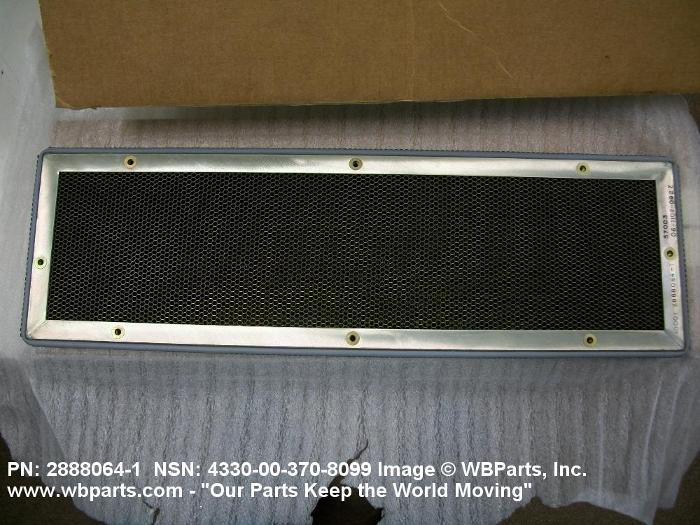

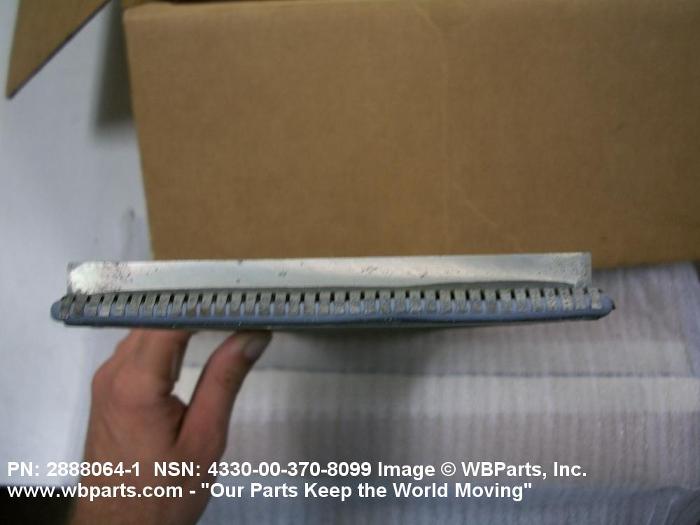

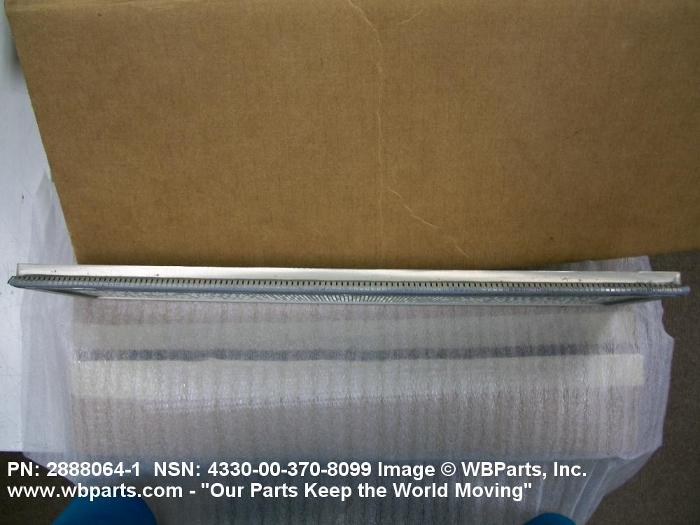

Drawings & Photos | NSN 4330-00-370-8099
Demand History | NSN 4330-00-370-8099
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 06-1102-0927 | 2024-05-123 | 14 | DIBBS |
| 2001-1431 | 2024-05-123 | 14 | DIBBS |
| 06-1102-0927 | 2022-04-101 | 10 | DIBBS |
| 2001-1431 | 2022-04-101 | 10 | DIBBS |
| 06-1102-0927 | 2022-03-90 | 10 | DIBBS |
| 2001-1431 | 2022-03-90 | 10 | DIBBS |
| 06-1102-0927 | 2021-11-319 | 4 | DIBBS |
| 2001-1431 | 2021-11-319 | 4 | DIBBS |
| 06-1102-0927 | 2021-10-304 | 4 | DIBBS |
| 2001-1431 | 2021-10-304 | 4 | DIBBS |
| 4330-00-370-8099 | 2014-04-104 | 7 | DIBBS |
| 4330-00-370-8099 | 2014-02-49 | 7 | DIBBS |
| 4330-00-370-8099 | 2014-02-33 | 7 | DIBBS |
| 4330-00-370-8099 | 2013-04-100 | 1 | DIBBS |
| 4330-00-370-8099 | 2013-03-85 | 1 | DIBBS |
| 4330-00-370-8099 | 2012-03-75 | 3 | DIBBS |
| 4330-00-370-8099 | 2012-03-68 | 0 | United States |
| 4330-00-370-8099 | 2011-11-305 | 13 | DIBBS |
Cross Reference | NSN 4330-00-370-8099
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4330-00-370-8099
Related Products | NSN 4330-00-370-8099
Technical Data | NSN 4330-00-370-8099
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | SHIELDING MEDIA HONEYCOMB ALUMINUM,1/8 IN. CELL SIZE PER MIL-C-7438,FRAME ALUMINUM PER QQ-A-200/9 ALLOY 6063-T4,FINGER STOCK BERYLLIUM COPPER,PER QQ-C-533 ALLOY 172,SILVER PLATED,FINISH,SHIELDING MEDIA,FRAME AND RIVNUTS SHALL BE ZINCATE AND COPPER STRIKE 0.0007 MINIMUM THICK ELECTRO TIN 0.0004 MINIMUM THICK,BEFORE SOLDERING FINGER STOCK TO FRAME |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2888064-1 |
Restrictions/Controls & Freight Information | NSN 4330-00-370-8099
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127470 | PUMP PARTS HND/WNDML |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4330-00-370-8099
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | N | Asbestos (item capable of emitting asbestos dust/fibers) |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
