NSN 4330-00-310-0487 M1544AW58, M15-44AW58, 0111015
Product Details | EXHAUST-INTAKE PNEUMATIC MUFFLER
4330-00-310-0487 A noise control/filtering device of various sizes, shapes, designs, materials (metallic/non-metallic) and varied mounting configurations used to diffuse air blasts, lowers air velocity, reduce noise, filtration of airborne moisture and/or dust contamination, pressure equalization, speed control for air operated devices. For vehicular application see MUFFLER, (as modified).20343100028Compressors and Vacuum Pumps43300057Centrifugals, Separators, and Pressure and Vacuum Filters47300051Hose, Pipe, Tube, Lubrication, and Railing Fittings

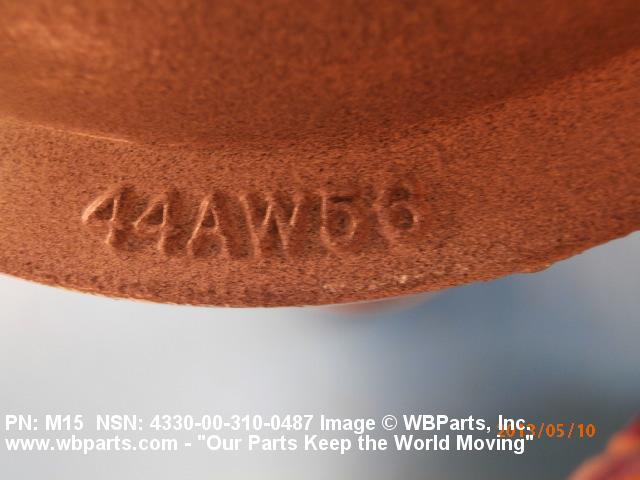

Part Alternates: M1544AW58, M15-44AW58, 0111015, 0111015 M15, 0111015M15, 137001, 1-37-001, M15, 4330-00-310-0487, 00-310-0487, 4330003100487, 003100487
Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 21 OCT 1973 | 00-310-0487 | 37112 ( PNEUMATIC MUFFLER, EXHAUST-INTAKE ) |

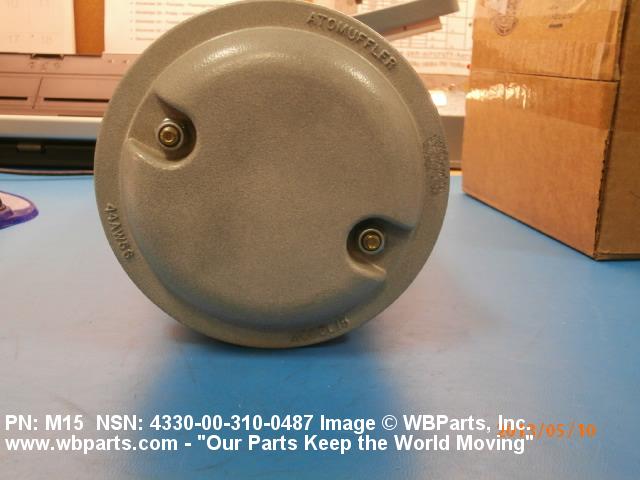

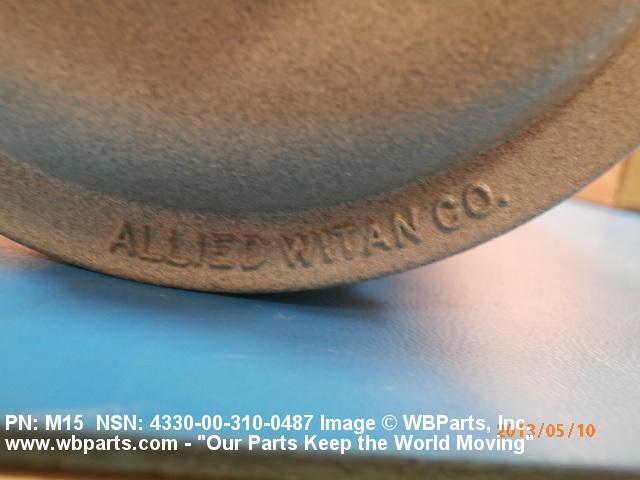

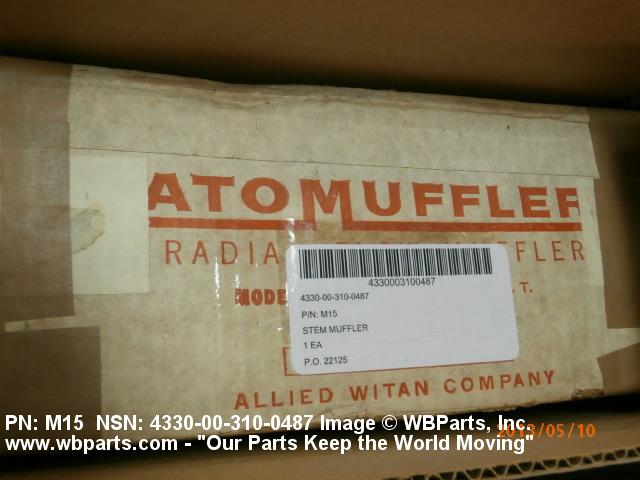

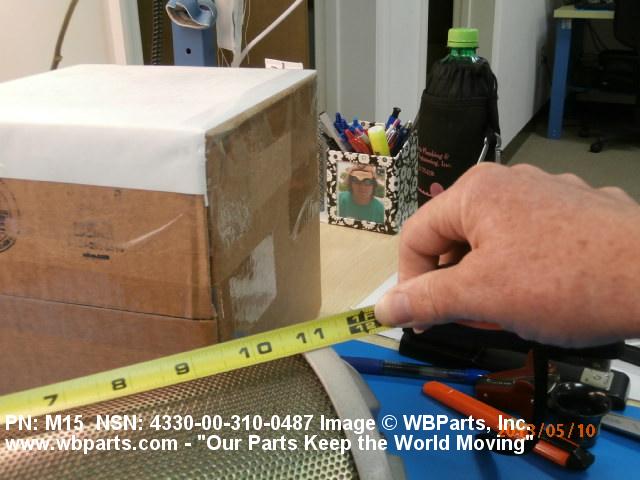

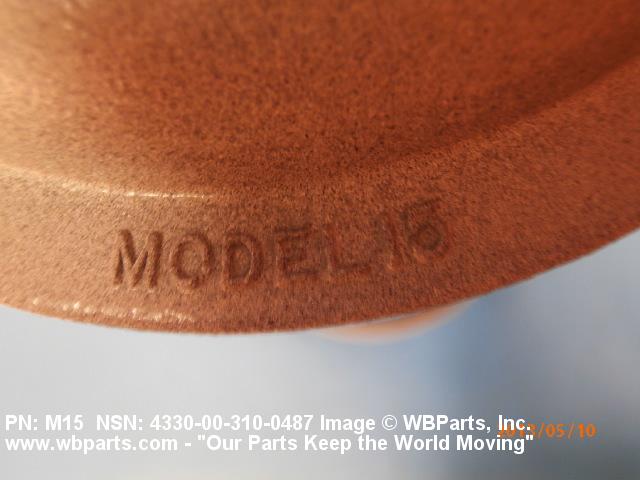

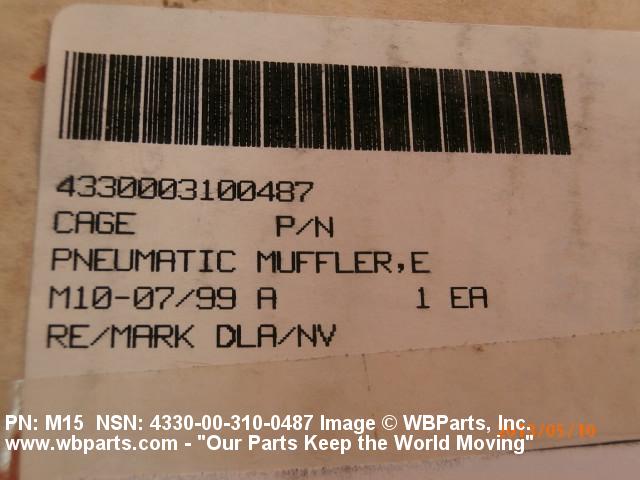

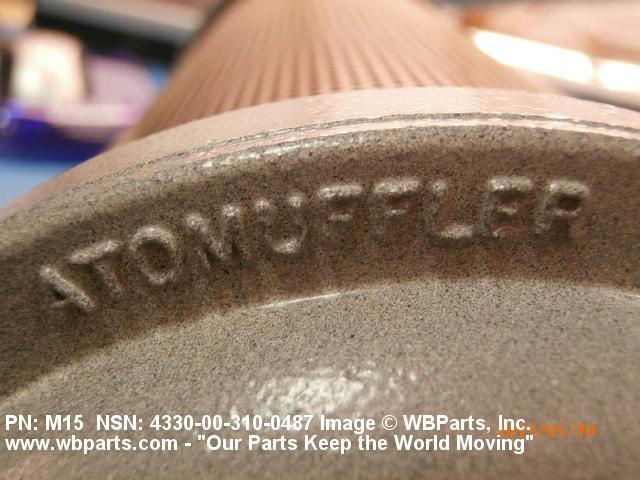

Drawings & Photos | NSN 4330-00-310-0487
Demand History | NSN 4330-00-310-0487
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4330-00-310-0487 | 2023-01-20 | 2 | ID |
| 0111015 | 2016-04-120 | 25 | Canada |
| 0111015 | 2016-04-120 | 25 | Canada |
| 4330-00-310-0487 | 2013-05-143 | 3 | DIBBS |
| 4330-00-310-0487 | 2013-05-121 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4330-00-310-0487
Technical Data | NSN 4330-00-310-0487
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM AND PHENOL |
| SURFACE TREATMENT | ANY ACCEPTABLE |

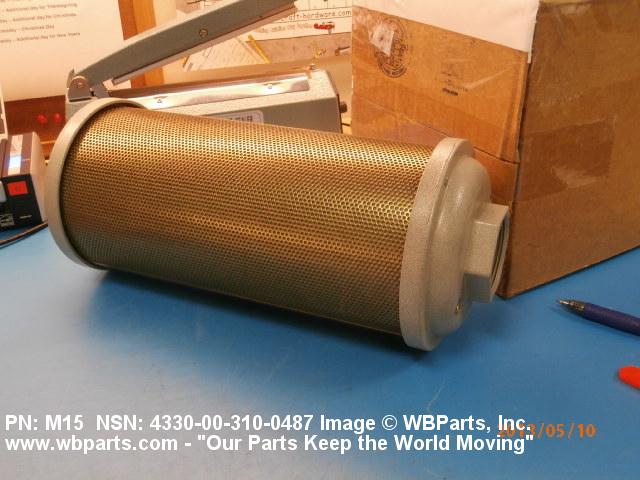

| MUFFLER DESIGN | STRAIGHT THROUGH |
| BODY SHAPE | ROUND |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |

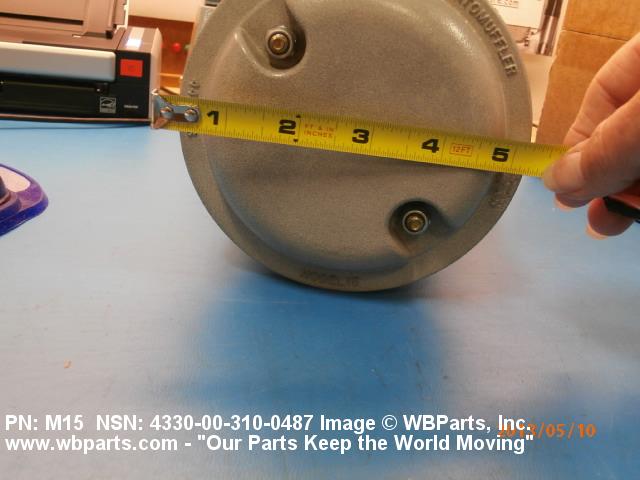

| OVERALL DIAMETER | 5.125 INCHES NOMINAL |
| INLET CONNECTION QUANTITY | 1 |
| INLET CONNECTION TYPE | THREADED |

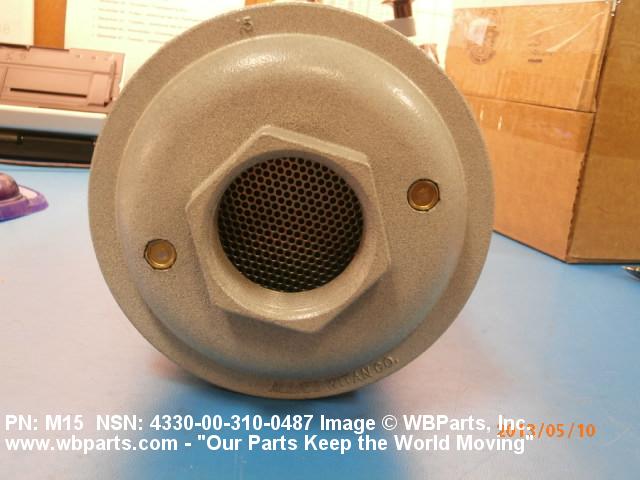

| INLET LOCATION | CENTRALLY LOCATED ON END CAP |

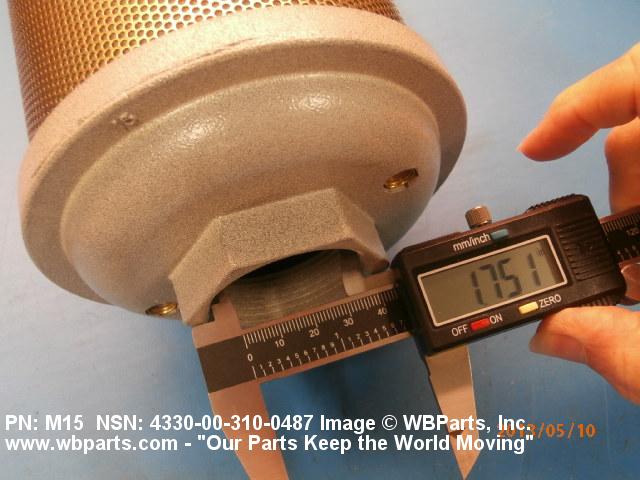

| INLET PROJECTION LENGTH | 1.250 INCHES NOMINAL |
| INLET THREAD SIZE | 1.500-11-1/2 |
| INLET THREAD SERIES DESIGNATOR | NPT |
| INLET THREAD DIRECTION | RIGHT-HAND |
| INLET THREAD LOCATION | EXTERNAL |
Restrictions/Controls & Freight Information | NSN 4330-00-310-0487
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 125850 | MUFFLER/EXHAUST SYS/PIPE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4330-00-310-0487
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
