Product Details | FLUID FILTER ELEMENT

4330-00-255-2694 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: MS2889716, MS28897-16, M8815/3-16, M8815316, AC9607F16, AC-9607F-16, MILDTL8815D, MIL-DTL-8815D , 7581408, 2113245, 21-13245, 4330-00-255-2694, 00-255-2694, 4330002552694, 002552694

Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters

Supply Group (FSG) NSN Assign. NIIN
43 30 JUL 1969 00-255-2694

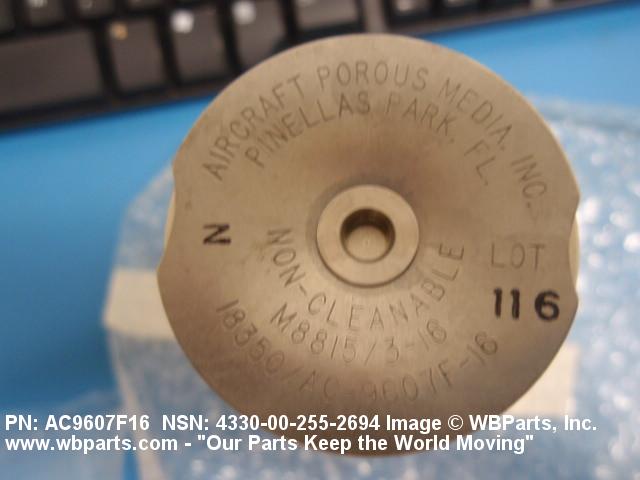

Drawings & Photos | NSN 4330-00-255-2694


Demand History | NSN 4330-00-255-2694

Part Number Request Date QTY Origin
AC9607F16 2021-09-258 36 US
4330-00-255-2694 2019-08-218 3 United States
4330-00-255-2694 2019-01-31 277 DIBBS
4330-00-255-2694 2017-11-327 303 DIBBS
4330-00-255-2694 2017-08-226 10 Germany
4330-00-255-2694 2017-06-155 410 DIBBS
4330-00-255-2694 2017-04-101 244 DIBBS
4330-00-255-2694 2016-09-251 488 DIBBS
4330-00-255-2694 2016-05-126 952 DIBBS
4330-00-255-2694 2016-02-36 322 DIBBS
4330-00-255-2694 2016-01-25 322 DIBBS
4330-00-255-2694 2015-12-351 668 DIBBS
4330-00-255-2694 2015-12-340 668 DIBBS
4330-00-255-2694 2015-07-195 395 DIBBS
4330-00-255-2694 2014-08-219 759 DIBBS
4330-00-255-2694 2014-05-139 888 DIBBS
4330-00-255-2694 2014-01-10 222 DIBBS
4330-00-255-2694 2013-10-274 266 DIBBS
4330-00-255-2694 2012-12-352 0 DIBBS
4330-00-255-2694 2012-11-313 1057 DIBBS
4330-00-255-2694 2012-09-269 144 DIBBS
4330-00-255-2694 2012-08-241 0 DIBBS
4330-00-255-2694 2009-05-151 615 DIBBS
4330-00-255-2694 2009-04-111 1 Canada
4330-00-255-2694 2007-12-355 990 DIBBS
4330-00-255-2694 2007-12-351 990 DIBBS
4330-00-255-2694 2007-08-220 558 DIBBS
4330-00-255-2694 2007-07-193 1244 DIBBS
4330-00-255-2694 2007-02-54 775 DIBBS
4330-00-255-2694 2006-03-69 192 DIBBS
4330-00-255-2694 2006-02-40 302 DIBBS
4330-00-255-2694 2005-12-341 214 DIBBS

Cross Reference | NSN 4330-00-255-2694

Part Number Cage Code Manufacturer
21-13245 96124 TRANSDIGM INC DBA AEROCONTROLEX
7581408 18305 PUROLATOR INC
AC-9607F-16 C0202 PALL GMBH
M8815/3-16 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-F-8815 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS28897-16 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4330-00-255-2694

Technical Data | NSN 4330-00-255-2694

Characteristic Specifications

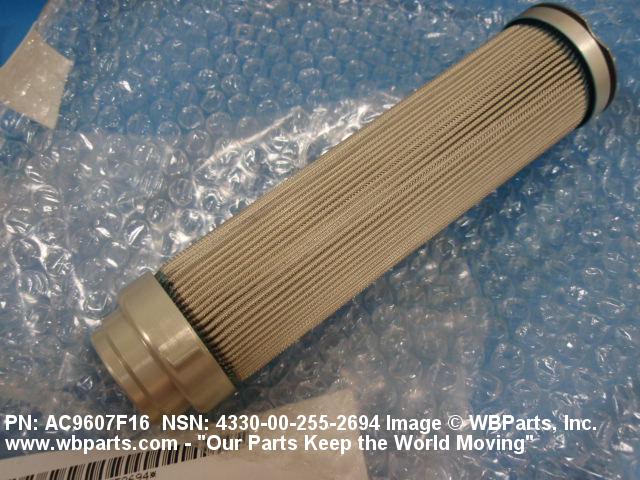

STYLE DESIGNATOR A6 CYLINDRICAL W/OUT CONTAINER
BODY DIAMETER 1.845 INCHES NOMINAL
BODY INSIDE DIAMETER 0.995 INCHES NOMINAL
BODY OVERALL LENGTH 7.395 INCHES NOMINAL
MATERIAL METAL FILTERING MEDIUM
FILTERING MEDIA DESIGN WOVEN SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE NONREUSABLE
FILTRATION RATING IN MICRONS 15.0 ABSOLUTE
FLOW DIRECTION OUTSIDE IN
MEDIA FOR WHICH DESIGNED FUEL/OIL, HYDROCARBON
TEMP RATING -65.0 DEG FAHRENHEIT MINIMUM AND 275.0 DEG FAHRENHEIT MAXIMUM
DROP PRESSURE NOT RATED
DIFFERENTIAL PRESSURE NOT RATED
FEATURES PROVIDED BY-PASS VALVE
TEST DATA DOCUMENT 81349-MIL-F-88158 SPECIFICATION
III FSC APPLICATION DATA HYDRAULIC SYSTEM,ACFT
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M8815/3-16
